| Standard & Protocol | IEEE802.11b/g/n for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX |
| Cellular Network | 3G/4G cellular network, network type FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/HSPA/CDMA/EVDO |
| Network Settings | WAN Network, Wireless WiFi, PPPoE Dialing, Mobile network Detection, VLAN, DDNS, Routing Table, Wireless Client Filtering, Port Forwarding , Port Redirection, DMZ Settings, Serial Port Application, UPnP Settings, Static DHCP, VRRP, RIP, OSPF |
| Firewall | IP Filtering, MAC Filtering, URL Filtering, Keyword Filtering, IP address Black/White List |
| VPN Tunnel | GRE, PPTP Client/Server, L2TP Client/Server, IPSec, OpenVPN Client |
| System Management | NTP Client, Access Settings, Timed Restart, Backup Recovery, Log Server, Firmware Upgrade |
| Troubleshooting | System Log, Ping Test and Route Tracking |
| WiFi Transmission Rate | 802.11n: 6.5~300Mbps 802.11b: 11/5.5/2/1Mbps 802.11g: 54/48/36/24/18/12/9/6Mbps |
| WiFi Radio Frequency | Channel: 2.412GHz~2.4835GHz RF power output: 20dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| WiFi Receiving Sensitivity | 802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7 802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7 802.11g: -91dBm@6Mbps, -72dBm@54Mbps 802.11b: -93dBm@1Mbps, -87dBm@11Mbps |
| WiFi Transmitting Power | 802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7 802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7 802.11g: 20dBm@6Mbps, 20dBm@54Mbps 802.11b: 23dBm@1Mbps, 20dBm@11Mbps |
| LTE Operating Frequency Band (Chinese Version) | TDD-LTE: Band 38/39/40/41 FDD-LTE: Band 1/3/5/7/8/20 WCDMA: Band 1/5/8 TD-SCDMA: Band 34/39 EVDO/CDMA1X: BC0 GSM: Band 3/8 |
| LTE Operating Frequency Band (European & African & Middle East Version) Note: This version can be used in Southeast Asia in most cases. | TDD-LTE: Band 38/40/41 FDD-LTE: Band 1/3/7/8/20/28A WCDMA: Band 1/8 GSM/EDGE: Band 3/8 |
| LTE Operating Frequency Band (North American Version) | FDD-LTE: Band 2/4/5/12/13/14/66/71 WCDMA: Band 2/4/5 |
| LTE Operating Frequency Band (Latin American & Australian & New Zealand Version) | TDD-LTE: Band 40 FDD-LTE: Band 1/2/3/4/5/7/8/28 WCDMA: Band 1/2/5/8 GSM/EDGE: Band 2/3/5/8 |
| LTE Operating Frequency Band (Global Version) | TDD-LTE: Band 34/38/39/40/41 FDD-LTE: Band 1/2//3/4/5/7/8/12/13/18/19/20/25/26/28/66 WCDMA: Band 1/2/4/5/6/8/19 GSM/EDGE: 850/900/1800/1900 MHz |
| LTE Bandwidth (Downstream, Upstream) | TDD-LTE: Rel 9 Cat4 TDD-LTE 112Mbps/30Mbps FDD-LTE: Rel 9 Cat4 FDD-LTE 150Mbps/50Mbps DC-HSPA+: 42Mbps/5.76Mbps HSPA+: 21Mbps/5.76Mbps UMTS: 384kbps/384kbps EVDO RevA: 3.1Mbps/1.8Mbps EVDO Rev0: 2.4Mbps/153.6kbps TD-HSPA: 4.2Mbps/2.2Mbps TD- SCDMA: 2.8Mbps/2.2Mbps CDMA 1x: 153.6kbps/153.6kbps EDGE: 236.8kbps/236.8kbps GPRS: 85.6kbps/85.6kbps |
| LTE Sensitivity | GSM: <-108dBm WCDMA: <-109dBm TD-SCDMA: <-108dBm TDD-LTE: l Band38/39/40: <-100dBm@5MHz BW l Band41: <-98dBm@5MHz BW FDD-LTE: l Band1: <-100dBm@5MHzBW l Band3/8: <-97dBm@5MHzBW l Band5: <-98dBm@5MHzBW CDMA: <-108dBm EVDO: <-108dBm |
| Maximum Transmission Power of LTE | LTE-FDD/TDD: 23 ±2dBm WCDMA: 24 +1/-3dBm TD-SCDMA: 24 +1/-3dBm EVDO/CDMA 1X: 24 ±1dBm GSM850/900: 33±2dBm GSM1800/1900: 30±2dBm |
| Serial Port Parameter | Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 1 3IN1 serial port RS-232 signal: RXD, TXD, GND RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300~115200bps Data bit: 7bit, 8bit Parity bit: None, Even, Odd Stop bit: 1bit, 2bit Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485/422 end supports 32-node polling environment Transmission distance: RS-232, 15m; RS-485/422, 1200m Work mode: RealCom, TCP Client, TCP Server, UDP Client, UDP Server |

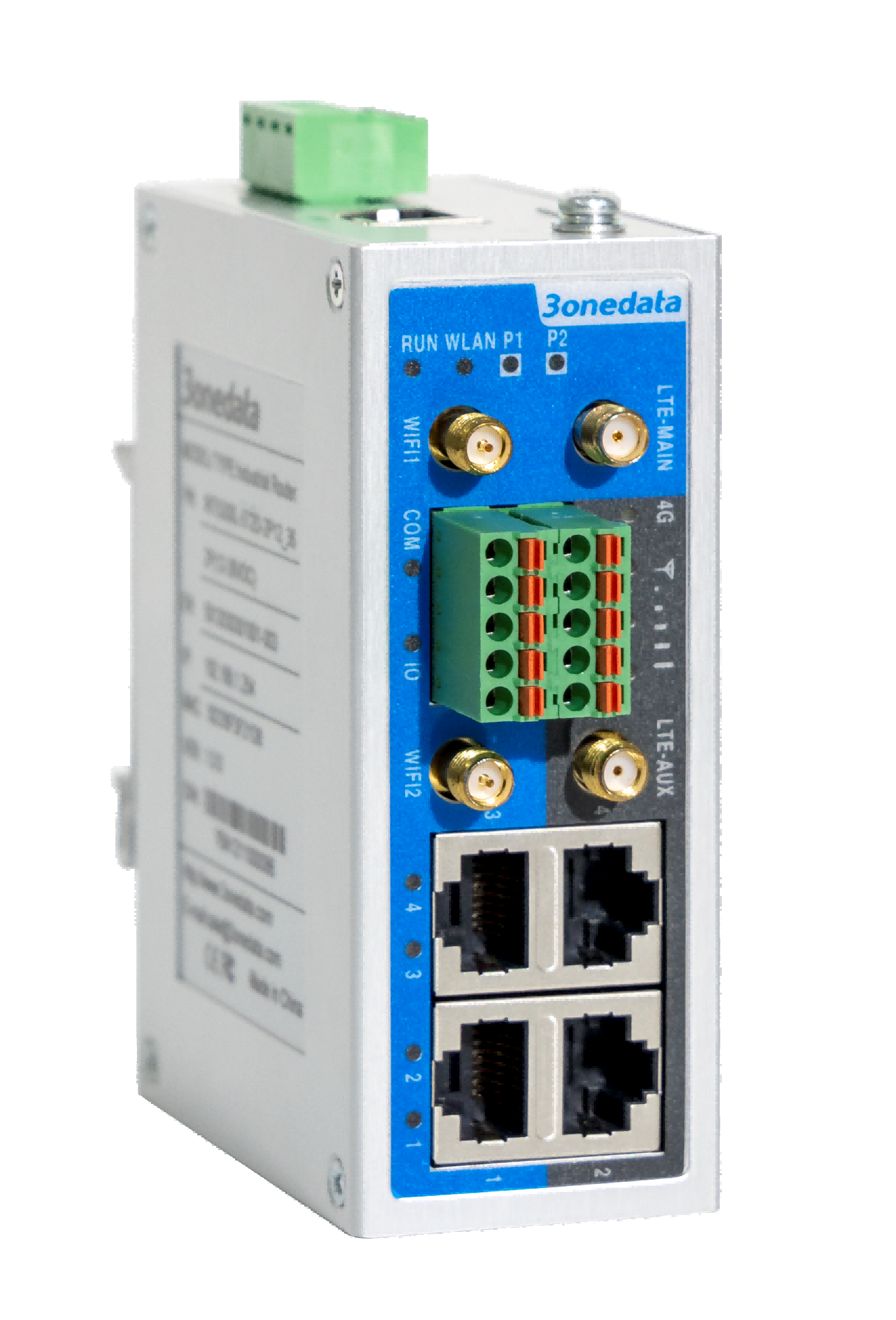

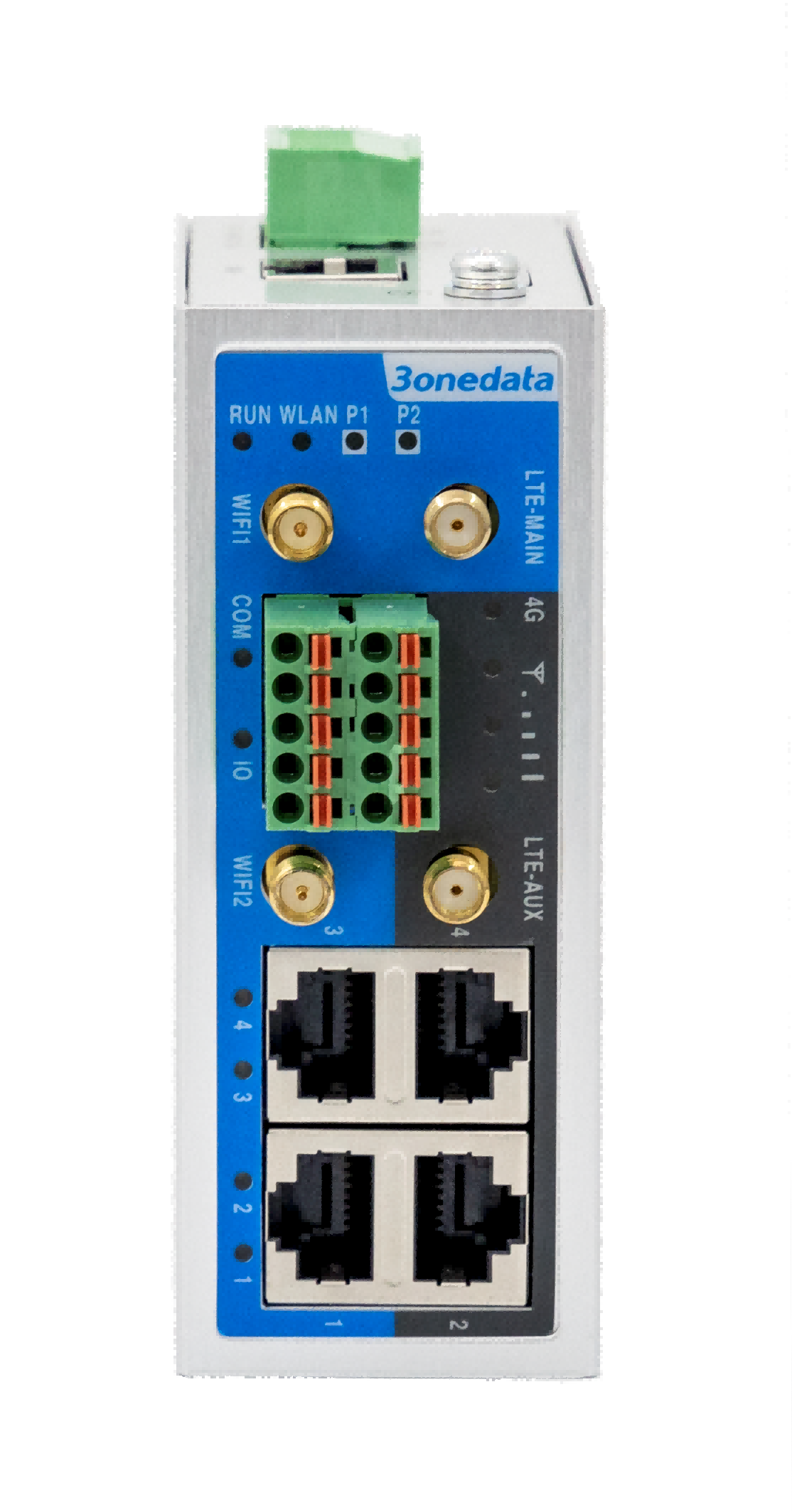

| Interface | WAN port: 1 10/100Base-T(X) RJ45 port LAN port: 4 10/100Base-T(X) RJ45 port Serial port: 1 RS-232/485/422, with 2x5-pin 3.81mm pitch terminal (occupies 6 pins) I/O port (reserved): 1 DI input and 1 DO output, adopt 2×5 3.81mm pitch terminal block (occupies 4 pins) SIM slot: 2 SIM slots, redundancy backup, support Micro SIM card Antenna interface: 2 LTE antenna interfaces, SMA-K (Female), the master antenna is used to send/receive information, and the slave antenna is used to receive information; 2 WIFI antenna interfaces, RP-SMA-K (Female) |
| Indicator | Running indicator, WLAN indicator, power indicator, LTE signal strength indicator, 4G indicator, LAN/WAN port indicator, COM indicator and IO indicator |
| Power Supply | Dual 12~36VDC power supply input, dual power supply redundancy, support non-polarity, adopt 4-pin 5.08mm pitch terminal blocks |
| Power Consumption | No-load: 2.4W@24VDC Full-load: 8.1W@24VDC (high temperature) |
| Working Environment | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%~95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Dimension (W x H x D): 40.6mm x 103mm x 78 mm(exclude antenna) Installation: DIN-Rail mounting Weight: ≤ 270g |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge: ±8kV l Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Power supply: ±2kV l Ethernet port: ±1kV IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Ethernet port: common mode±2kV, differential mode±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS，NBTC |
| Warranty | 5 years |
