Introduction

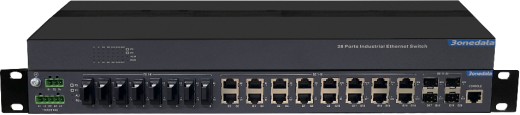

MES5200 series products are 28-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series provides 100M fiber port, Gigabit copper port and Gigabit SFP slot, and adopts standard rack installation method, which is specially designed for extremely severe electromagnetic interference environment to meet the anti-interference requirements of power monitoring industry.
Network management system supports a variety of network protocols and industry standards, such as ARP, IPv4, Ring, MRP, VLAN, STP/RSTP/MSTP, ERPS, LLDP, IGMP Snooping, Modbus TCP, QoS, port trunking, port mirroring, etc. It has perfect management functions, supporting port configuration, port statistics, ACL, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery and restart. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits the industrial scene environment with harsh requirements for EMC. It can be widely used in smart substation, smart grid, energy storage, photovoltaic, wind electricity, non-electric industry SCADA system and other industrial fields.
Features and Benefits
¤ SNMPv1/v2c/v3 is used for network management of various levels
¤ RMON can be used for efficient and flexible network monitoring
¤ Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
¤ QoS supports real-time traffic classification and priority setting
¤ LLDP can achieve automatic topology discovery, which is convenient for visual management
¤ File management is convenient for rapid configuration and online upgrading of the device
¤ Log management records Console log, RAM log and Flash log
¤ Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
¤ Port statistics can be used for the port real time traffic statistics
¤ User password can conduct user hierarchical management to improve the device management security
¤ ACL can enhance network flexibility and security
¤ Relay alarm is convenient for troubleshooting of construction site
¤ Storm suppression can restrain broadcast, unknown multicast and unicast
¤ TELNET configuration and SSH configuration guarantee secure access to data
¤ Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
¤ IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth
¤ STP/RSTP/MSTP/Ring/MRP could implement network redundancy and prevent network storm
¤ ARP could be used for MAC address resolution
¤ With high reliability and stability, ERPS could avoid broadcast storm caused by data loopback
¤ Network diagnosis and troubleshooting could be conducted via Ping, Traceroute, Cable Diagnosis, SFP Digital Diagnosis
