Industrial 4G Router

  • Industrial 4G routers support 5 100M copper ports (one of them supports PoE power receiving), 2 RS-232/485 serial ports, 2 WIFI antenna interfaces, 2 LTE antenna interfaces, 2 SIM card slots, etc.
  • Support all 4G networks cellular wireless network types include: LTE/WCDMA(HSPA+)/EDGE/ TD-SCDMA /GSM/CDMA/GPRS
  • Support WLAN wireless hotspot function
  • Support dual power supply, input voltage: 12~48VDC
  • PoE port supports 48VDC power supply input
  • Support -40~75℃ wide operating temperature range

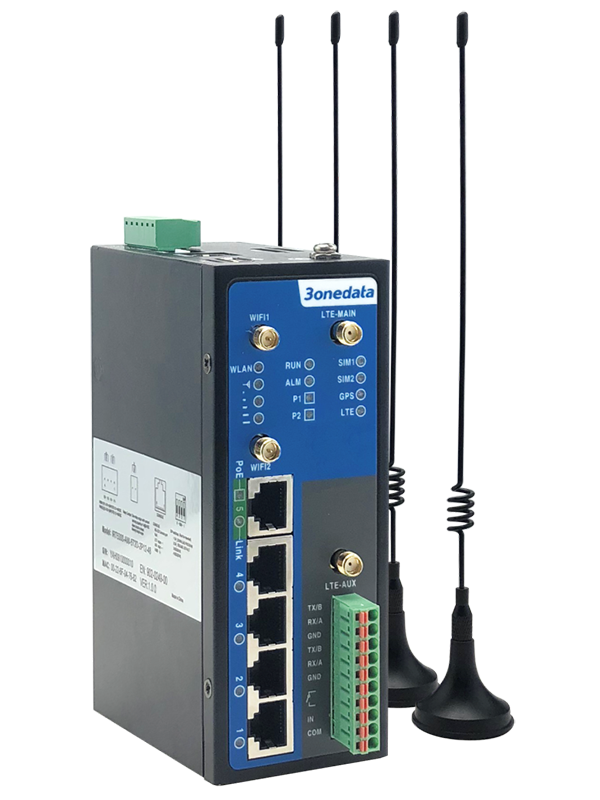

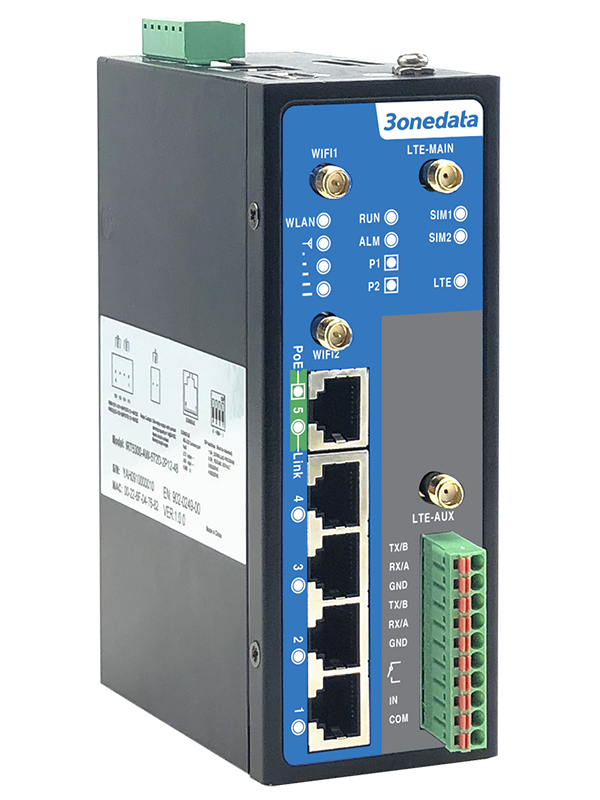

Overview of 3onedata's Industrial 4G Router IRT5300-AW-5T2D

IRT5300-AW-5T2D is industrial-grade 4G router. Its PoE power supply conforms to IEEE802.3af/at protocol standard. This product supports 5 100M copper ports (one of them supports PoE power receiving), 2 serial ports, 4 antenna interfaces and 2 SIM card slots, etc. It adopts DIN-Rail mounting, which can meet the requirements of different application scenes.
Network management supports multiple software functions, like Cellular WAN, Ethernet WAN, ICMP Link Test, DHCP Setting, Dynamic Domain Name, Routing Table Setting, WLAN Setting, Port Forwarding, Port Redirection, DMZ Setting, Serial Port Application and Setting, UPnP Setting, VRRP, RIP, OSPF and Static DHCP, etc. It also supports firewall functions, such as IP Filtering, MAC Filtering, URL Filtering and Keyword Filtering, etc. and VPN tunneling functions like IPSec, PPTP, L2TP, etc. Network management could bring you great user experience though its friendly designed system interface and easy and convenient operation.
The power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. The design of DIP switch could implement device reboot and factory setting recovery. When power supply or port has link failure, ALARM indicator would be bright and send alerts for quick troubleshooting on the scene. Hardware adopts fanless, low power consumption, wide temperature and voltage design. It can be widely used in railway transportation, intelligent transportation, smart grid, environmental monitoring, fire monitoring, security monitoring, hydrological monitoring, public safety, industrial control, earthquake monitoring, meteorological monitoring, instrument monitoring and other industries.

Additional Features
Support dual SIM card redundancy backup and Cellular network. It’s embedded with multiple 2G/3G/4G wireless communication modules
Support backup switch between PPPOE, DHCP, static IP and 4G networks to fit different scenes
Support network firewall, which can implement filtering and forwarding of IP, MAC, URL, keyword, etc.
DHCP, DHCP server could be used to distribute IP address with different policies
Support DDNS function, user can access server through domain names
Support VPN encryption protocols like GRE, PPTP, L2TP and IPSEC, which can ensure the privacy and integrity of data and prevent replay attack
Support multiple serial port operating modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client, etc.
Support NAT, which can implement conversion between public address and private address. Functions like port mapping and port redirection are also supported.
Log management records boot information, operation information and connection information
VRRP, RIP, OSPF could implement dynamic router configuration
Support timing reboot and ICMP link test reboot
Support hardware watchdog to ensure the reliability of system
Ping Test, Traceroute, Router Tracing could achieve network diagnosis and troubleshooting
