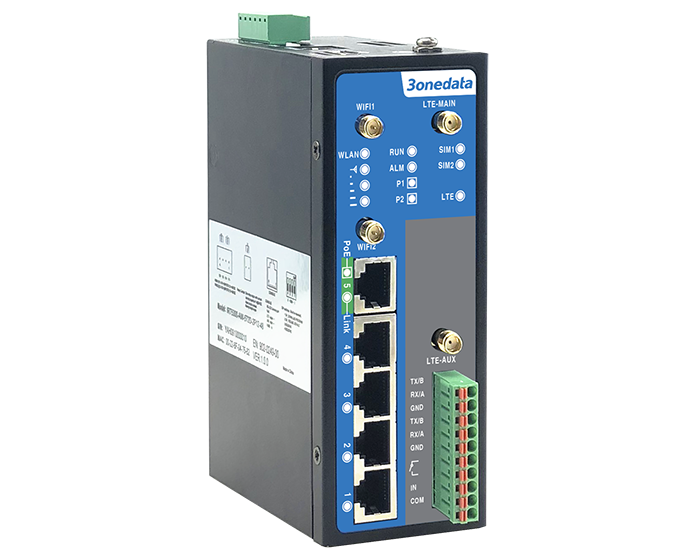

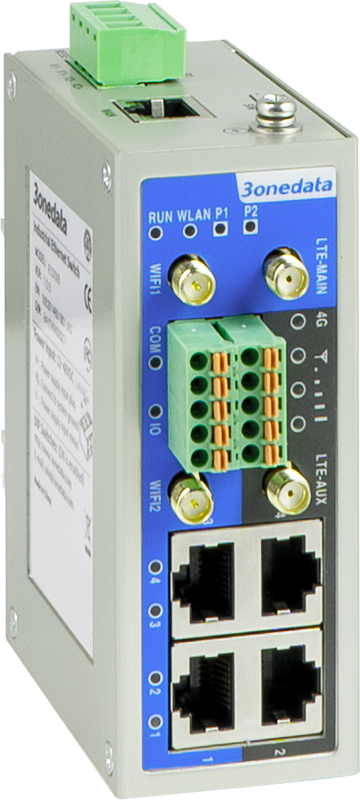

IRT5300L Series

Industrial-grade 4G Router

Support 1 100M WAN port, 2 or 4 100M LAN ports, 1 RS-232/485/422 serial port, 1 I/O input and output, 2 2.4G WIFI antenna interfaces, 2 LTE antenna interfaces, 2 SIM card slots, etc
Support all 4G networks, cellular wireless network types include: FDD/TDD/WCDMA/TD-SCDMA/HSPA/CDMA/EVDO
Support multiple serial port work modes: RealCom, TCP Server, TCP Client, UDP Server, UDP Client
Support dual-SIM card redundancy backup to ensure the stable connection of wireless network
Support OpenVPN client, IPsec, PPTP and L2TP and provide a powerful data security mechanism
Support dual power supply redundancy, power supply has non-polarity protection, input voltage: 12~36VDC
Support -40~75℃ wide operating temperature range

Overview of 3onedata's Industrial-grade 4G Router IRT5300L Series

IRT5300L series are industrial 4G wireless routers. This series has two products, including 100M WAN port, 100M LAN port, RS-232/485/422 serial port, I/O interface (reserved), Wi-Fi antenna interface, LET antenna interface and SIM card slot. It adopts DIN-Rail mounting, which can meet the requirements of different application scenes.
Network management supports multiple software functions, like Cellular WAN, Ethernet WAN, ICMP Link Test, DHCP Setting, VLAN Setting, Dynamic Domain Name, Routing Table Setting, WLAN Setting, Port Forwarding, Port Redirection, DMZ Setting, Serial Port Application and Setting, UPnP Setting, VRRP, RIP, OSPF and Static DHCP, etc. It also supports firewall functions, such as IP Filtering, MAC Filtering, URL Filtering, Keyword Filtering and IP address black/white list, etc. and VPN tunneling functions like GRE, IPSec, PPTP, L2TP, OpenVPN, etc. Network management system could bring you great user experience through its friendly interface design, easy and convenient operation.
Adopt dual-SIM card redundancy to ensure the stable connection of wireless network. The input power supply has two inputs, which can ensure the normal operation of the device when one power supply fails. RESET button can reboot the device and restore factory defaults. The hardware adopts fanless, low power consumption, wide temperature and wide voltage design, which can adapt to various harsh industrial field environments and can be widely used in industrial application scenarios such as factory automation, petrochemical industry, electric power monitoring, water conservancy monitoring and so on.

Additional Features
Support dual SIM card redundancy backup and Cellular network. It’s embedded with 2G/3G/4G wireless communication modules
Support backup switch between PPPoE, DHCP, static IP and 4G networks to fit different scenes
Support network firewall, which can implement rule filtering and forwarding of IP, MAC, URL, keyword, Ip address black/white list, etc.
DHCP, DHCP server could be used to distribute IP address with different policies
Support DDNS function, user can access server through domain names
Support VPN encryption protocols like GRE, PPTP, L2TP, IPSEC and OpenVPN, which can ensure the privacy and integrity of data and prevent replay attack
Support multiple serial port operating modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client, etc.
Support VLAN settings, which can simplify network planning
Log management records the information of booting, operation and connection
VRRP, RIP, OSPF could implement dynamic router configuration
Support timing reboot and ICMP link test reboot
Support hardware watchdog, which ensures the reliability of the system
Ping Test, System Log, Router Tracing could achieve network diagnosis and troubleshooting
