Stock Code：688618
ICPE2300A-BW-8A25-1GC3GT-PD2P12_48

Industrial Indoor 5G Wireless Router

Support 1 Gigabit COMBO port (WAN/LAN, optional RJ45 or SFP slot), 3 Gigabit copper ports(LAN), 2 2.4G antenna interfaces, 2 5.8G antenna interfaces and 4 5G Sub-6G antenna interfaces, which can meet the high bandwidth requirement of industry application.
Support 5G NR cellular wireless network, compatible with 3G/4G LTE all networks
Support 2.4GHz and 5.8GHz dual bands
Support 12~48VDC single power supply dual input, and WAN port supports 48VDC PoE power supply input
Support -40~75℃ wide operating temperature range
GET A QUOTE
Overview
Specifications
Models
Resources

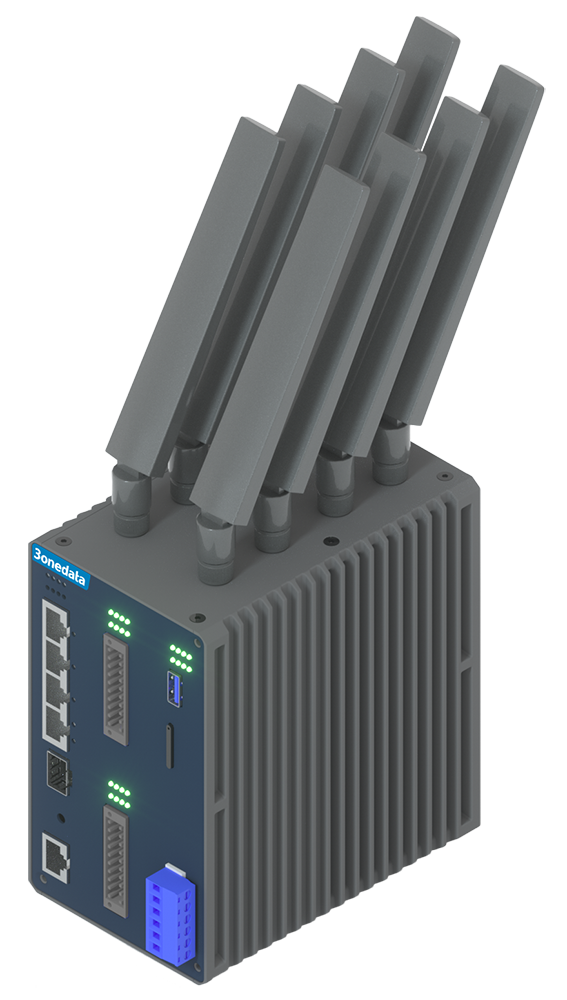

Overview of 3onedata's Industrial Indoor 5G Wireless Router ICPE2300A-BW-8A25-1GC3GT-PD2P12_48

ICPE2300A-BW-8A25-1GC3GT-PD2P12_48 is industrial 5G wireless router. Its PoE power receiving conforms to IEEE802.3af/at protocol standard. This product provides COMBO port, Gigabit copper port, USB, 2.4G antenna interface, 5.8G antenna interface and 5G Sub-6G antenna interface. It also adopts DIN-Rail mounting, which can meet the requirements of different application scenes.
Network management system supports multiple software functions, like 3G/4G/5G Cellular WAN, WAN Settings, WIFI & 4G/5G roaming, ICMP Link Test, Link Backup, Dynamic Domain Name, Routing List Setting, WLAN Settings, Port Forwarding, Port Redirection, DMZ Settings, UPnP Settings, VRRP, RIP, OSPF, Static DHCP, QoS etc. It also supports firewall functions, such as IP Filtering, MAC Filtering, URL Filtering and Keyword Filtering and IP Address Black/White List and VPN tunneling functions including GRE, IPSec, PPTP, L2TP. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
RESET button can realize device reboot and one-key factory default restoration. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. The device can be widely used in factory automation, petrochemical, power monitoring, indoor LAN, converting 5G signal into WiFi coverage, achieving remote access applications of terminal equipment through 5G and other industries.


Addtional Features
Support high-speed wireless connection, 2.4GHz transmission speed could reach 300Mbps, 5.8GHz could reach 867Mbps, 5G Sub-6G could reach 2Gbps
Support dual-band 2×2MIMO and 2 2.4G and 2 5.8G  RF omnidirectional antennas; Support 5G Sub-6G 4×4MIMO and 4 omnidirectional antennas
WAN network supports link backup and WiFi & 4G/5G roaming mode, which can access extranet through wired(WAN port) or wireless(WiFi) and be link backup with 3G/4G/5G cellular network.
Support redundant backup of dual SIM cards, embedded 5G wireless communication module, compatible with 3G/4G/5G Cellular network
WAN port supports PPPoE dialing, obtaining IP by DHCP, static IP and LAN mode
Support DMZ isolation zone, establishing a buffer zone between non-secure system and security system
Support network firewall, which can implement filtering and forwarding of IP, MAC, URL, keyword, etc.
Support DHCP server, which can be used for distributing IP address with different strategies
Support multicast transparent transmission to realize transparent transmission of multicast data between WAN, LAN, and 5G
Support DDNS function, user can access server through domain names
Support VPN encryption protocols like GRE, PPTP, L2TP and IPSEC, which can ensure the privacy and integrity of data and prevent replay attack
Support port forwarding, port redirection functions and so on, which can realize address translation
VRRP, RIP, OSPF could implement dynamic router configuration
QoS supports real-time traffic classification and priority setting
Support wireless user management and user event, and support blacklist and whitelist filtering rules, wireless user online/offline notification
WWM can achieve better transmission quality of voice, video and other applications in wireless networks
Support WPA/WPA2 wireless encryption method of both personal edition and enterprise edition and TKIP/AES encryption algorithm
Support system log, ping test and route tracking, user can conduct network diagnosis and troubleshooting.
