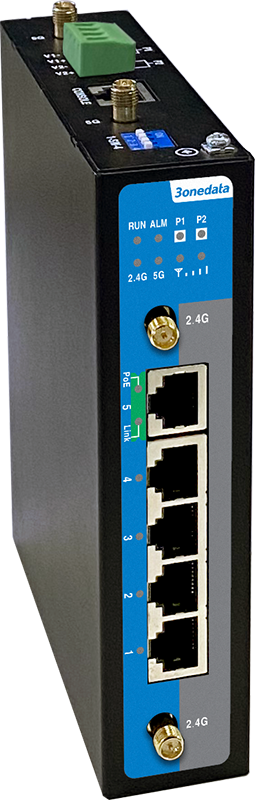

Overview of 3onedata's 5 Port 100M Dual-band Industrial Wireless Access Point IAP2300-4A25-5T-PD2P12_48
IAP2300-4A25-5T-PD2P12_48 is full 100M industrial dual-band Wireless AP, the PoE power supply conforms to IEEE802.3af/at protocol standard. This product provides 100M PoE WAN, 100M PoE LAN, 2 2.4G antenna interfaces, 2 5.8G antenna interfaces, 48VDC PoE or 12~48VDC power supply interface. Support DIN-Rail mounting, which can meet the requirements of different application scenes.
The network management system supports multiple work modes: routing, AP, bridge and client. Support IEEE802.11b/g/n/a/ac wireless technology, the transmission rate is up to 1167Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, URL filtering, Port forwarding, Port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs; Support fast roaming, in wireless local area network composed of multiple APs, fast roaming can be realized without switching operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. WAN port supports 48VDC PoE power supply input and can save power supply cost. The design of DIP switch could implement device reboot and factory setting recovery. When power supply or link has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The product adopts fanless, low power consumption, wide temperature design, which can adapt to the harsh outdoor environment. It can be widely used in the scenes demanding for wireless roaming, such as AGV cars and industrial robots in factory automation, petrochemical industry, power monitoring and so on.
Additional Features
Support routing mode, AP mode, bridge mode, client mode, support connection methods like WDS and universal bridge
The client mode supports wireless NAT connection, and the wireless network can connect with the external network through PPPoE, static IP and DHCP dynamic acquisition, and implement route switch
Support high-speed wireless connection, the transmission speed of 2.4GHz can reach up to 300Mbps, the transmission speed of 5.8GHz can reach up to 867Mbps
Support 2×2MIMO and 4 dual-RF omnidirectional antennas
Support multi-AP fast roaming technology, and the switching time is less than 50ms
Support wireless probe, it can realize personal positioning function with location engine
Support SNMP network management and Trap alarm
Support multiple SSID settings and provide SSID hiding function
Support WPA/WPA2/WPA3 wireless encryption method and TKIP/AES encryption algorithm
AC management can specify AC device information to realize directional management
Supports IP filtering, MAC filtering, URL filtering, port forwarding, ARP binding, DMZ isolation area and other firewall functions
Support wireless user management and user event, and support blacklist and whitelist filtering rules, wireless user online/offline notification
WWM can achieve better transmission quality of voice, video and other applications in wireless networks
QoS management supports speed limit based on IP and MAC addresses
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE802.3u for 100Base-TX IEEE802.11b/g/n/a/ac for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE802.3af/at for PoE/PoE+ |
| Working Mode | Route mode, AP mode, bridge mode, client mode |
| Network Settings | Intranet Settings, External Network Settings, Wireless Settings, Wireless Probe, AC Management, SNMP Management, QoS Management, Roaming Agent |
| Wireless Client | User list, user event |
| Firewall (Route mode/Wireless NAT) | IP filtering, MAC filtering, URL filtering, port forwarding, Port redirection, ARP binding, DMZ settings |
| System Tools | Network detection, User settings, System upgrading, System Restart, System log |
| Radio Frequency | 802.11b/g/n:2.412GHz~2.4835GHz 802.11ac/n/a:5.18GHz~5.825GHz RF power output: 20dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Receiving Sensitivity | 802.11n_HT40:-82dBm@MCS0, -64dBm@MCS7 802.11n_HT20:-85dBm@MCS0, -67dBm@MCS7 802.11g/a:-91dBm@6Mbps, -72dBm@54Mbps 802.11b:-93dBm@1Mbps, -87dBm@11Mbps 802.11ac:-84dBm@MCS0, -59dBm@MCS9 |
| Transmitting Power | 802.11n_HT40:20dBm@MCS0, 20dBm@MCS7 802.11n_HT20:20dBm@MCS0, 20dBm@MCS7 802.11g/a:20dBm@6Mbps, 20dBm@54Mbps 802.11b:20dBm@1Mbps, 20dBm@11Mbps 802.11ac:20dBm@MCS0, 20dBm@MCS9 |
| Interface | WAN port: 1 10/100 Base-T(X) RJ45port, support POE 48VDC power supply input LAN port: 4 10/100Base-T(X) RJ45 ports Antenna: 2 2.4G RP-SMA-K (Female) interfaces 2 5.8G RP-SMA-K (Female) interfaces Console port: CLI command management port(RS-232), RJ45 |
| Power Supply | 12~48VDC dual power supply redundancy, support non-polarity, 4-pin 5.08mm pitch terminal block; WAN port supports PoE 48VDC power supply input |
| Indicator | Running indicator, Alarm indicator, Power indicator, 2.4G indicator, 5.8G indicator, WLAN bridge signal strength indicator, PoE indicator |
| Power Consumption | No-load: 3.0W@24VDC Full-load: 7.9W@24VDC(high temperature) |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Weight: 0.57kg Dimension (W x H x D): 35mm×150mm×120mm |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Ethernet port: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Ethernet port: ±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | 2.4G Antenna Interface | 5.8G Antenna Interface | 100M PoE WAN | 100M LAN | Power Supply |
| IAP2300-4A25-5T-PD2P12_48 | 2 | 2 | 1 | 4 | PoE 48VDC, Dual power supply 12~48VDC |
