Industrial Outdoor Dual-band Wireless AP

Support 1 Gigabit PoE Combo/copper WAN port, 3/4 Gigabit copper LAN ports, 2 2.4G antenna interfaces and 2 5.8G antenna interfaces
Support 2.4GHz and 5.8GHz dual bands
WAN port supports 48VDC PoE power input
Support -40~75℃ wide operating temperature range

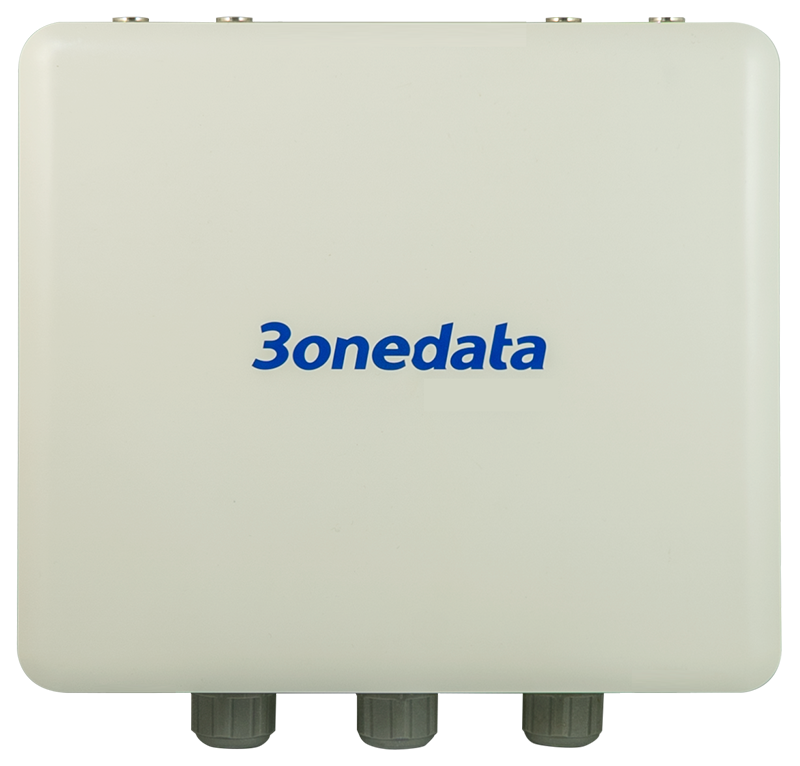

Overview of 3onedata's Industrial Outdoor Dual-band Wireless AP IAP2600S

IAP2600S series are Gigabit industrial outdoor dual-band wireless AP. This series provides two products, which support 1 Gigabit PoE copper WAN port or 1 Gigabit PoE Combo WAN port, 3/4 Gigabit copper LAN ports, 2 2.4G antenna interfaces and 2 5.8G antenna interfaces, and adopt wall-mounted or pole-holding installation mode, which can meet the needs of different application sites.
The network management system supports five operating modes including Route, AP, Bridge, Client and Dual-link, and IEEE802.11b/g/n/a/ac wireless technology. The highest rate of complete machine could reach 1167Mbps and meet the needs of quick data transmission. The device supports wireless encryption methods like WPA, WPA2, WPA3, etc. It also possesses SSID concealing, wireless user isolation, MAC address filtering, ARP binding, DMZ setting and other security strategies. Support virtual AP, that is, an AP device supports multiple SSID; supports single-link fast roaming and dual-link seamless roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve fast roaming without conducting the switching operation.
RESET button can realize device reboot and one-key factory default restoration. All components are industrial grade, and the protection grade is IP68, which can adapt to the harsh outdoor environment. It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.

Additional Features
Support work modes including route, AP, network bridge, client and dual-link;
Support high-speed wireless connection, 2.4GHz transmission speed could reach 300Mbps, 5.8GHz could reach 867Mbps
Support 2×2MIMO and 4 dual-RF omnidirectional antennas;
Support simultaneous connection of 100 clients
Support 802.11r-based single-link fast roaming and dual-link seamless roaming technology;
Support WPRP and WDRP, improving the stability of wireless communication;
Support wireless probe, it can realize personal positioning function with location engine;
Support switching function of SSID broadcast
Support multiple SSID settings and provide SSID hiding function
Support multiple firewall functions, including port forwarding, ARP binding, DMZ isolation area etc.
Support AC Management, SNMP and QoS function;
Support WPA/ WPA2/WPA3 function;
Support hardware watchdog, which ensures the reliability of the system
Support wireless user management and flow monitoring;
-40~75℃ large range operating temperature;
Industrial grade 4 design, support power supply and port isolation protection
Strong anti-interference ability and high defensiveness, which can adapt to all kinds of severe environments easily
