Industrial Roaming Wireless Access Point

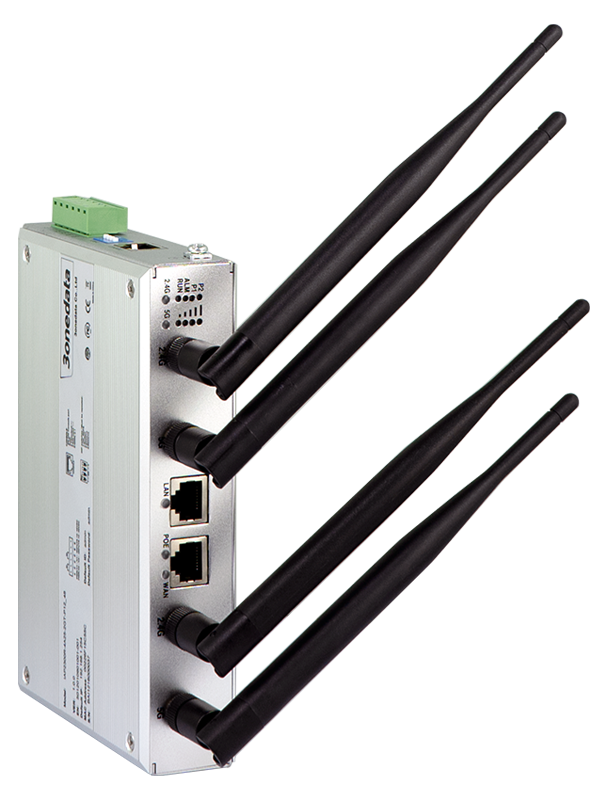

Overview of 3onedata's Industrial Roaming Wireless AP IAP2300R-4A25-2GT-P12_48

IAP2300R-4A25-2GT-P12_48 is industrial roaming wireless AP. This product supports 2 Gigabit copper ports and 4 antenna interfaces, etc. It adopts wall or rail mounting, which can meet the requirements of different application scenes.
This device supports four work modes, including routing, AP, network bridge and client. It supports IEEE802.11a/b/g/n/ac wireless technology, the transmission rate of which can reach 867Mbps, which can meet the requirements of quick data transmission. The device supports WEP SHARED, WPA2-PSK and other wireless encryption methods, with SSID hiding, wireless user isolation, MAC address filtering, ARP binding, DMZ setting and other security policies; supports virtual AP, that is, an AP device supports multiple SSID; supports fast roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve fast roaming without conducting the switching operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. WAN port supports 48VDC PoE power supply input and can save power supply cost. DIP switch can realize device root and restoring factory defaults. When power supply or link has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption, wide temperature and wide pressure design, which can be widely used in the scenes demanding for wireless roaming, such as AGV cars and industrial robots in factory automation, petrochemical industry, power monitoring and so on.


Additional Features
Support work modes including routing, AP, network bridge and client
Support high-speed wireless connection, the transmission speed of 2.4GHz could reach up to 300Mbps and 5.8GHz could reach up to 867Mbps, the total wireless bandwidth is about 1200Mbps
Support dual-band MU-MIMO, 4 spatial flows
Support multi-AP fast roaming technology, and the switching time is less than 50ms
Support wireless probe, it can realize personal positioning function with location engine
Support multiple SSID settings and provide SSID hiding function
Support multiple firewall functions, including port forwarding, ARP binding, DMZ isolation etc.
Support WEP/WPA/WPA2 authentication function
Support wireless user management and flow monitoring
Support hardware watchdog, which ensures the reliability of the system
-40~75℃ large range operating temperature
Strong anti-interference ability and high defensiveness, which can adapt to all kinds of severe environments easily

Standard & Protocol	IEEE802.11a/b/g/n for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE802.3af/at for PoE/PoE+ IEEE802.11ac for MU-MIMO IEEE 802.3 for 10BaseT IEEE 802.3u for 100Base-T IEEE802.3ab for 1000Base-TX
Network Security	MAC Filtering, IP Filtering, URL Filtering, WPA2-PASK and WEP SHARED Encryption, DMZ
WIFI Transmission Rate	802.11n: 6.5~300Mbps 802.11b: 11/5.5/2/1Mbps 802.11g/a: 54/48/36/24/18/12/9/6Mbps 802.11ac: 65Mbps ~ 867Mbps
WIFI RF	2.4G Channel: 2.401GHz~2.483GHz 5G channel: 5.170GHz~5.330GHz, 5.490GHz~5.650GHz, 5.735GHz~5.835GHz RF power output: 23dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
WIFI Receiving Sensitivity	802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7 802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7 802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps 802.11b: -93dBm@1Mbps, -87dBm@11Mbps 802.11ac：-84dBm@MCS0, -59dBm@MCS9
WIFI Transmission Power	802.11n_HT40: 23dBm@MCS0, 20dBm@MCS7 802.11n_HT20: 23dBm@MCS0, 20dBm@MCS7 802.11g/a: 23dBm@6Mbps, 20dBm@54Mbps 802.11b: 23dBm@1Mbps, 20dBm@11Mbps 802.11ac: 23dBm@MCS0, 20dBm@MCS9
Interface	Copper port: 2 10/100/1000Base-T(X) RJ45 ports, 1 LAN + 1 WAN Antenna interface: 2 2.4G WIFI antenna interfaces, RP-SMA-K type (Female) 2 5G WIFI antenna interfaces, RP-SMA-K type (Female)
Indicator	2.4G WLAN indicator, 5G WLAN indicator, running indicator, power supply indicator, alarm indicator, WAN port connection indicator, LAN port connection indicator, WLAN bridging quality indicator, PoE indicator
Physical Characteristic	Installation: wall or Rail mounting Dimension (W x H x D): 35mm×166mm×110mm Weight: 579g
Working Environment	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%~95% (no condensation)
Power Requirement	Support dual power supply redundancy, voltage range: 12~48VDC support non-polarity, anti-reverse connection, built-in overcurrent 2.0 protection WAN port supports 48VDC power supply input
Power Consumption	No-load: 3.12W@24VDC Full-load: 9.87W@24VDC
Certification	CE, FCC, RoHS

Available Models	Gigabit WAN with PoE	Gigabit LAN	2.4G wireless	5G Antenna	Power Supply
IAP2300R-4A25-2GT-P12_48	1	1	2	2	12~48VDC or 48VDC PoE
