1 Port CAN Bus to Fiber Converter

Support 1 CAN port to 1 fiber port
CAN port supports two options for choosing baud rate, automatic detection and user definition. The range of baud rate is 2.5kbps-1000kbps
Data receiving/storing/forwarding could be achieved between 2 CAN networks with different rates when used in pairs
It can extend CAN bus transmission distance, the transmission distance of fiber port can reach up to 15km
Support -40~75℃ wide operating temperature range

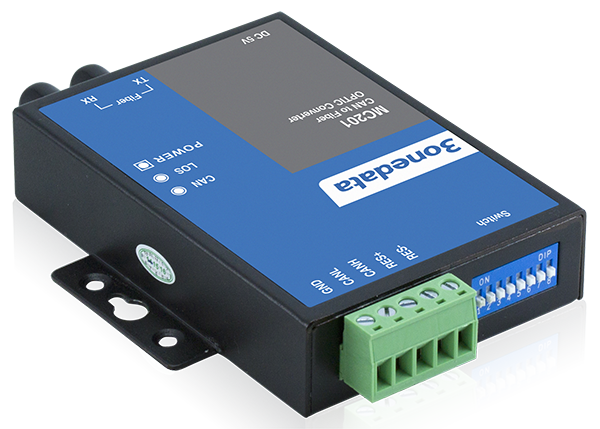

Overview of 3onedata's 1 Port CAN Bus to Fiber Converter MC201-F

MC201-F is a CAN bus signal to optical signal converter. It’s specially designed for solving problems like short transmission distance and electromagnetic interference during CAN bus transmission. It supports 1 CAN port to 1 fiber port transparent transmission and adopts wall mounting which can meet the requirements of different scenes.
DIP switch could implement baud rate setting of CAN port. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, building automation, healthcare automation system, measuring instrument and environment monitoring system, etc.
