| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE802.1p for CoS IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+ ITU-T G.8032 for ERPS |
| Management | SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management |
| Security | Classification of User Permissions, NAT, 802.1X Authentication, DHCP Snooping, Radius Server Authentication, Port Alarm, Power Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Link Flapping Protection, Aggregation Protection |
| Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
| Unicast / Multicast | Static Multicast, Multicast Routing, IGMP-Snooping, PIM-SM, PIM-DM |
| Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS |
| Troubleshooting | Ping, Traceroute, Port Loopback |
| Routing Technique | VRRP, RIP, OSPF |
| Time Management | NTP |
| Interface | 100M PoE M12:10/100base-T(X), M12 (Female), 4-Pin D-Coded, automatic flow control, full/half duplex mode, MDI/MDI-X automatic detection; The single port supports up to 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative Gigabit PoE M12:10/100/1000base-T (X), M12 (Female), 8-Pin X-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 2 of PoE power supply are positive, while pin 3 and 4 are negative Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning; it supports two groups of Bypass RELAY interface: M12(Female), 4-Pin D-Coded, support 1 relay alarm output, with current load capacity of 1A@30VDC or 0.3A@125VAC Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded |
| Indicator | Power indicator, alarm indicator, running indicator, interface indicator, PoE indicator |
| Switch Property | Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 128G Switch time delay: <10μs |
| Power Supply | Power supply range: 110VDC (66~156VDC), dual power supply, single input Connection method: M12(Male), 4-Pin A-Coded Connection protection: anti-reverse connection |
| Power Consumption | Full load (no PoE load): < 20W Full load (including PoE load): ＜120W |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |

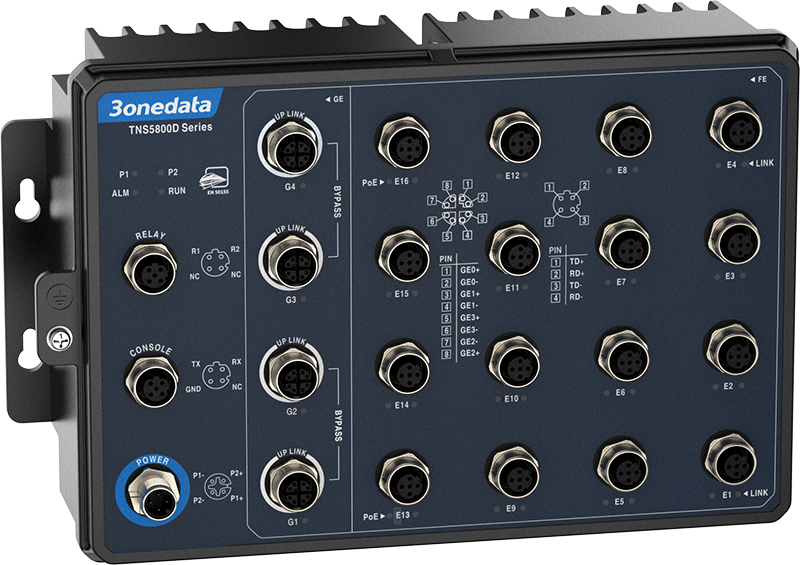

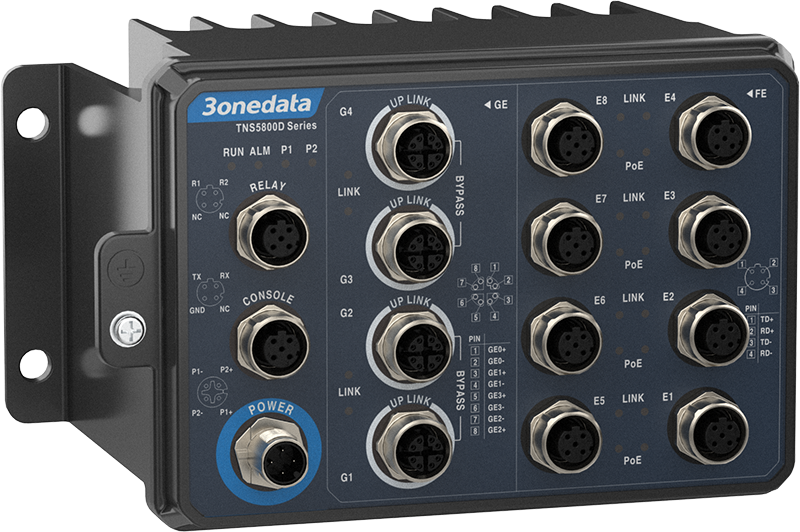

| Physical Characteristic | Housing: IP67 protection, metal Installation: wall mounting Dimension (W x H x D): 178mm × 104mm × 92mm (12-Port device) 260mm × 160mm × 70mm (20-Port device) |
| Industrial Standard | EN 50121-3-2: 2016 standard, Table 5.3 (Electrostatic Discharge), Class A Air discharge:± 8kV Contact discharge: ±6kV EN 50121-3-2: 2016 standard, Table 3.3 (Surge), Class A Power supply: common mode±2kV, differential mode±1kV EN 50121-3-2: 2016 standard, Table 3.2 (Electrical Fast Transient Pulses), Class A Power supply: ±2kV Signal: ±2kV EN 50121-3-2: 2016 standard, Table 5.1, 5.2 (Radio Frequency Electromagnetic), Class A 80MHz~800MHz，20V/m 800MHz~1GHz，20V/m 1.4GHz~2.0GHz，10V/m 2.0GHz~2.7GHz，5V/m 5.1GHz~6GHz，3V/m EN 50121-3-2: 2016 standard, Table 3.1, 4.1 (Conducted Disturbance Induced by RF Fields), Class A Power supply: 0.15MHz~80MHz, 10V Signal: 0.15MHz~80MHz, 10V EN 50121-3-2: 2016 standard, table 3.1 (Power Supply Conducted Disturbance) 150kHz~500kHz, 79dBμV quasi-peak value 500kHz~30MHz, 73dBμV quasi-peak value EN 50121-3-2: 2016 standard, table 3.1 (Radiation Disturbance) 30MHz~230MHz, ＜40dBμV/m quasi-peak value 230MHz~1GHz, ＜47dBμV/m quasi-peak value Shock: IEC 61373 Free fall: IEC 60068-2-32 Vibration: IEC 61373 |
| Authentication | CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373 |
| Warranty | 5 years |
