TNS5800D 12-Port Series

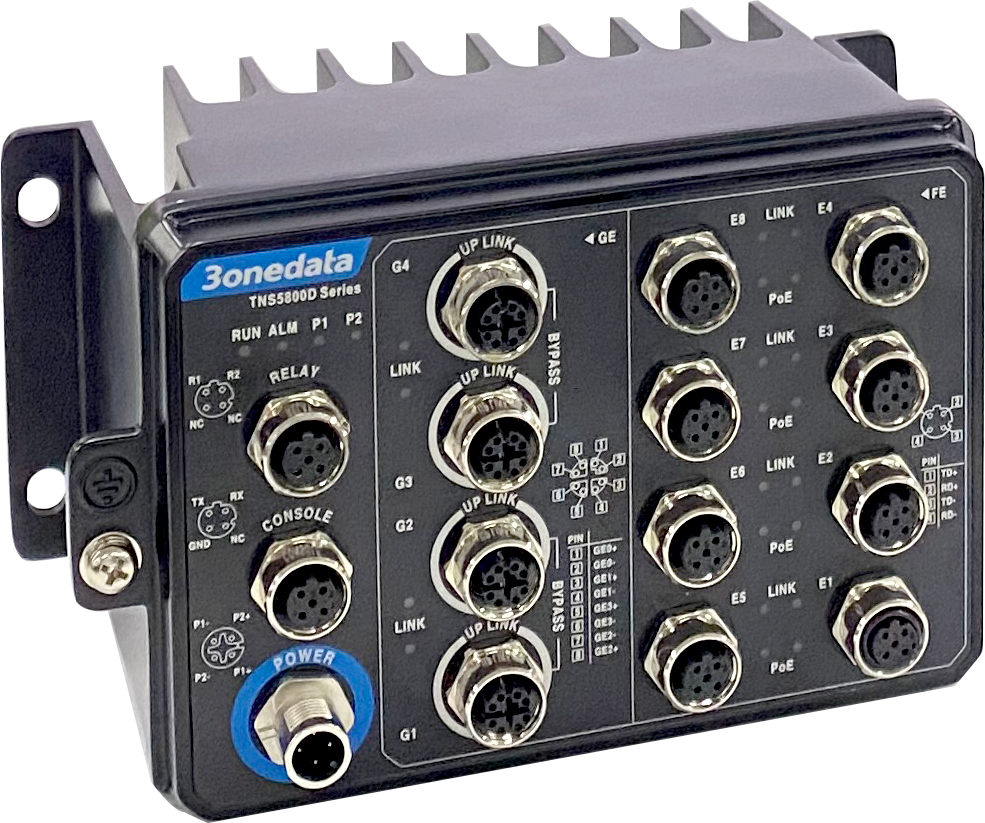

Wall Mounting 12-port Layer 3 EN50155 Industrial Ethernet Switch

uSupport 4 Gigabit M12 interfaces (with 2 groups of Bypass function)

uSupport 8 100M M12 interfaces or Gigabit M12 interface, PoE function (optional)

uAdopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function

uSupport optional 2 24VDC or 110VDC power supply inputs

uSupport IP67 protection grade

uSupport -40~75 wide operating temperature range



TNS5800D 12-Port series are layer 3 industrial Ethernet switches. The product conforms to the requirements of industrial standard EN50155 and EN50121 Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. PoE power supply conforms to IEEE802.3af/at protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. This product supports 24VDC or 110VDC power supply input and adopts wall mounting, which can meet the needs of different application sites.
The network management system supports various network protocols and industry standards, such as static routing, RIP, VRRP, NAT, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This devices have passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in systems such as train network, signal, on-board PIS, CCTV.

Additional Features

u SNMPv1/v2c/v3 is used for network management of various levels

u RMON can be used for efficient and flexible network monitoring

u Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

u QoS supports real-time traffic classification and priority setting

u LLDP can achieve automatic topology discovery, which is convenient for visual management

u DHCP server can be used for distributing IP address with different strategies

u File management is convenient for the device rapid configuration and online upgrading

u Port statistics can be used for the port real time traffic statistics

u ARP could be used for MAC address resolution

u User password can conduct user hierarchical management to improve the device management security

u Access Control can enhance network flexibility and security

u Storm suppression can restrain broadcast, unknown multicast and unicast

u SSHD configuration could encrypt transmitted data, prevent DNS and IP spoofing

u TELNET configuration and SSH configuration guarantee secure access to data

u VLAN can be set to simplify network planning

u Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

u Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status

u Port isolation could achieve port isolation in the same VLAN and save VLAN resources

u PIM-DM/PIM-SM, IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth

u Ring, ERPS, STP/RSTP/MSTP can achieve network redundancy, preventing network storm

u Ping, Traceroute, Port Loopback could achieve network diagnosis and troubleshooting

u VRRP, RIP, OSPF could implement dynamic router configuration

u Bypass function can prevent communication breakdown caused by power supply failure

u NAT maps private IP address to the legal IP address of external network, which can slow the consumption of IP address space

u PoE could power device via Ethernet, which has greatly saved the cost of device power supply

u Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
