IES6306 Series

6 Port Layer 2 Managed Gigabit PoE Switch

● Two 2.5G Ethernet SFP fiber ports, four Gigabit copper ports (optional PoE)
● SW-Ring, support single ring, coupling ring, chain, Dual-homing, recovery time < 20ms
● Support multiple network protocols and industrial standard, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS function, IGMP Snooping function, LLDP etc.
● Support dual power redundancy, input voltage 48VDC PoE or 12~48VDC
● The maximum output power of a PoE port is 30W, and that of the whole device is 120W
● Support -40~75℃ wide operating temperature range
GET A QUOTE
Overview
Specifications
Models
Resources

Overview of 3onedata's Layer 2 Managed 6 Port Gigabit PoE Switch IES6306 Series

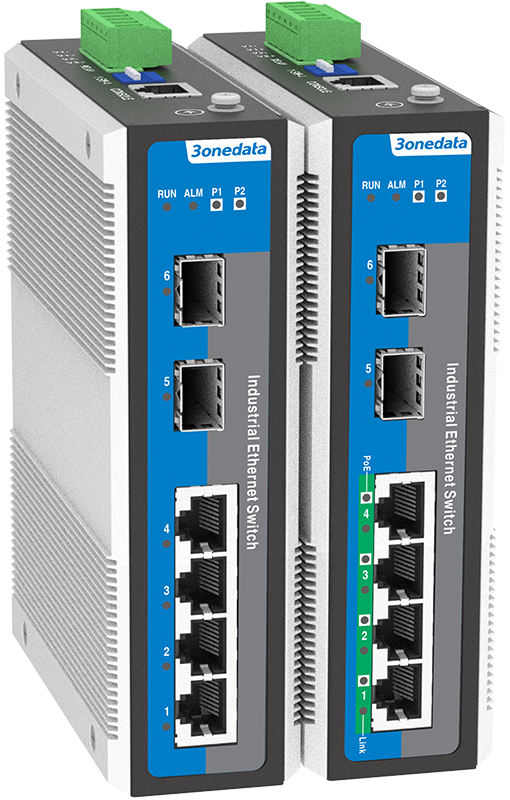

IES6306 Series are 6-port Gigabit layer 2 managed industrial Ethernet switches. This series have two products and provide 4 Gigabit copper ports, 4 Gigabit PoE copper ports and 2 2.5G SFP slots, and it adopts DIN-Rail mounting which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as Ring, STP/ RSTP/MSTP, ERPS, DHCP, VLAN, QoS function, IGMP Snooping, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Access Control, Network Diagnosis, Online Upgrading and so on, and supports CLI, WEB, Telnet, SSH, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
The product provides two independent power supply circuits, which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery. When DC power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, aerospace, intelligent manufacturing, military project and other industrial fields.


Additional Features
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server can be used for distributing IP address with different strategies
DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
File management is convenient for the device rapid configuration and online upgrading
User privilege classification configuration can set user privilege level
SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security
Support NAS network access service and provide security assurance for multiple services
IPMC file configuration can deploy access control on IP multicast flow
MEP function can determine the scope and boundary of maintenance domain
Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
EPRS function can realize link backup and improve the reliability of network
Loop protection could efficiently eliminate the influence caused by port loopback
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unicast
VLAN is used for simplifying network planning
Static Aggregation and LACP can increase network bandwidth and enhance the reliability of network connection to achieve the best bandwidth utilization
IGMP Snooping can be used for filtering multicast traffic to save the network bandwidth
Network diagnosis and troubleshooting could be conducted via Ping and cable detection
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
PoE could power device over Ethernet, thus decreasing the cable connection of powered devices
