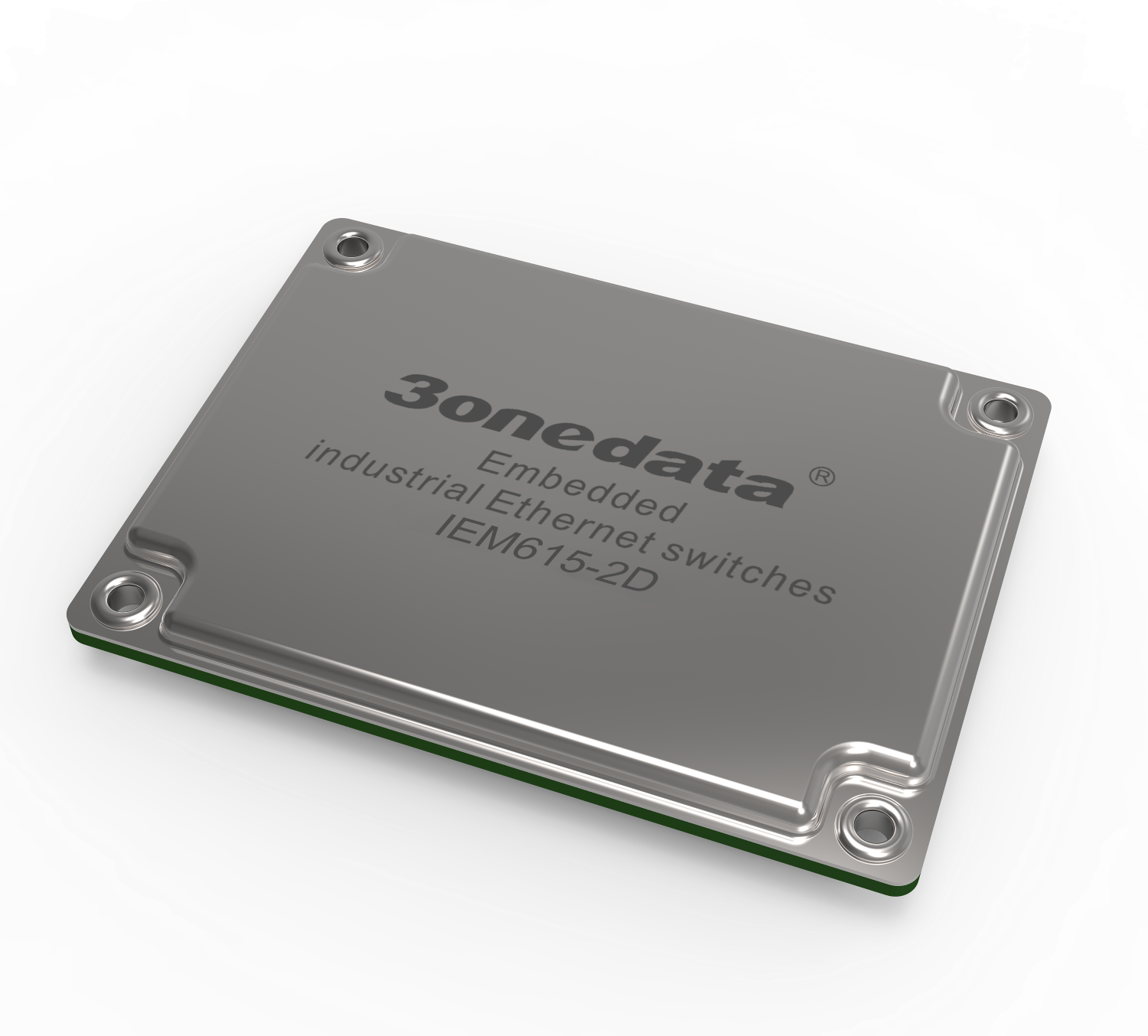

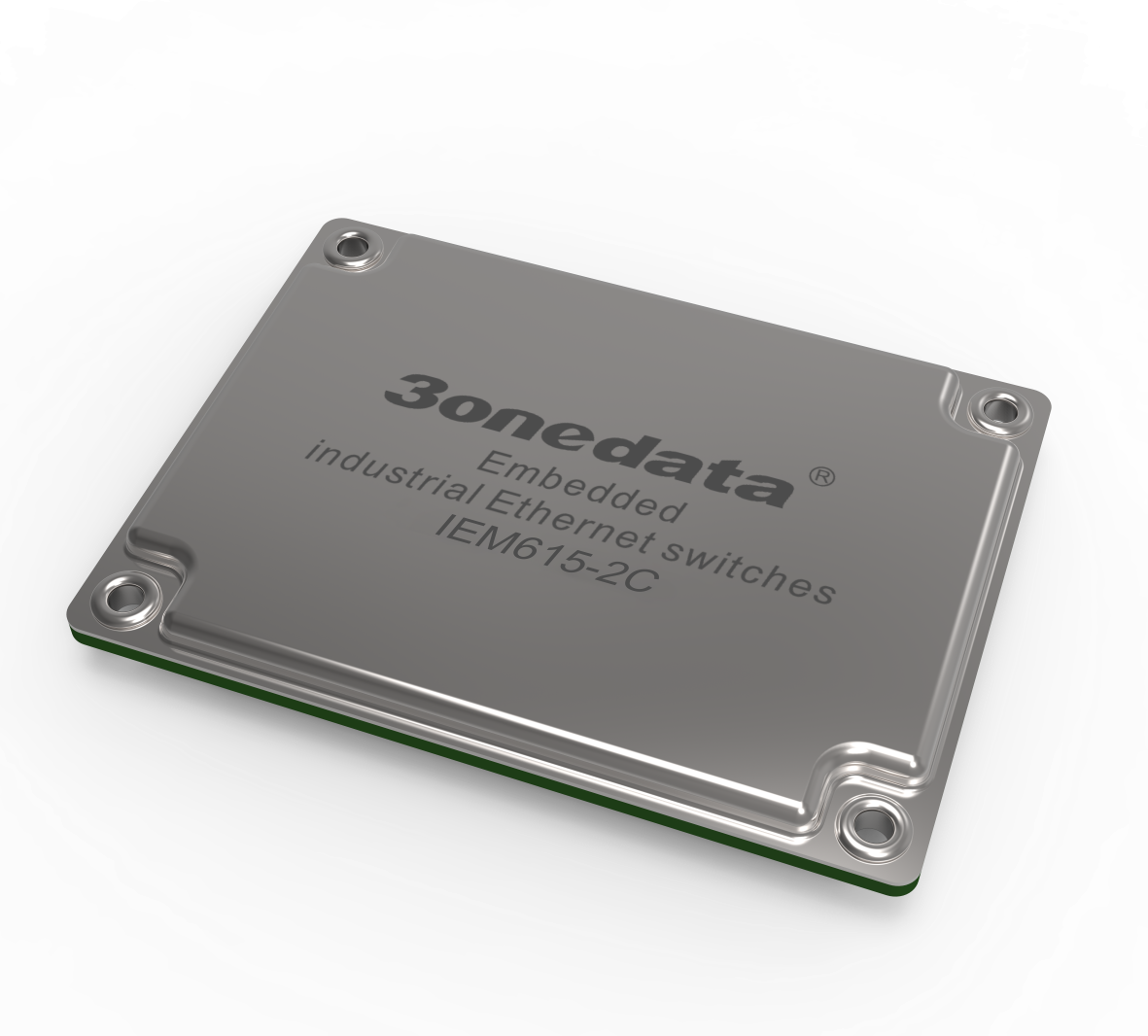

IEM615 Series

Embedded Mounting 5-Port 100M Layer 2 Managed Industrial Ethernet Switch Module with 2 Serial Ports or CAN Ports

uSupport 5 100M fiber/copper ports, 2 serial ports or CAN ports

uAdopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms

uInput voltage: 3.3VDC

uSupport -40~75 wide operating temperature range

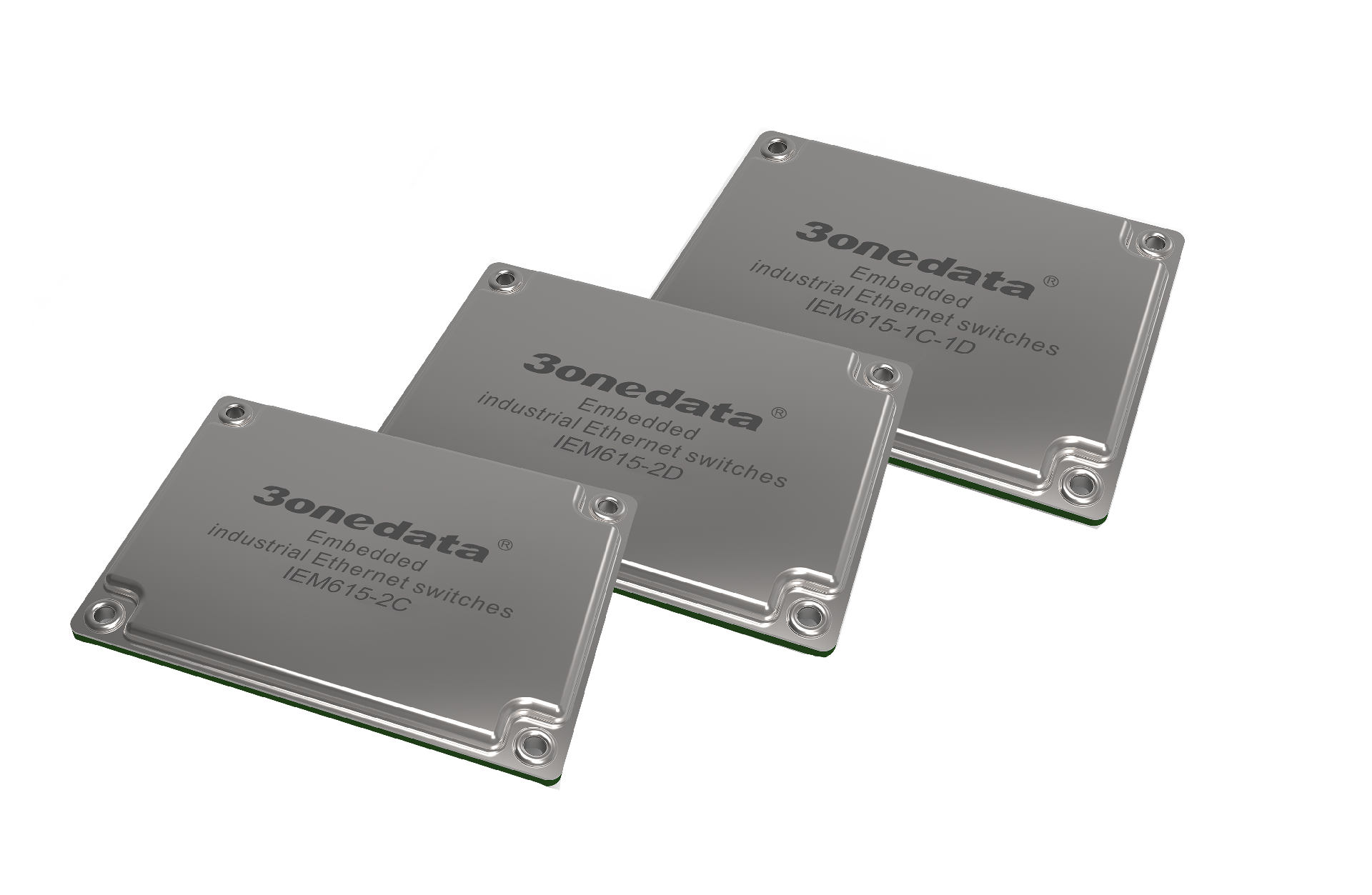

IEM615 series is a 5-port 100M layer 2 managed industrial Ethernet switch module with 2 serial ports or CAN ports, which has the characteristics of high integration, small size, rich functions, simple and convenient operation. This series has 4 products to choose from, providing 2 serial ports or CAN ports and 5 100M ports, of which 5 100M ports can be configured with fiber port or copper port as needed; Using embedded installation mode, users can customize the PCB back plane specifications to choose any Ethernet interface types through the module pins, to meet the needs of different application sites.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, Static Multicast, LLDP, Port Mirroring. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on; Integrated serial server and CAN server functions, each serial port and CAN port support 4 TCP or UDP session connections and multiple work modes such as TCP Server, TCP Client and UDP; supports CLI, WEB, Telnet, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Additional Features

uSNMPv1/v2c is used for network management of various levels

uPort mirroring can conduct data analysis and monitoring, which is convenient for online debugging

uQoS supports real-time traffic classification and priority setting

u LLDP can achieve automatic topology discovery, which is convenient for visual management

uFile management is convenient for rapid configuration and online upgrading of the device

uBandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status

uPort statistics can be used for the port real time traffic statistics

uUser password can conduct user hierarchical management to improve the device management security

uRelay alarm is convenient for troubleshooting of construction site

uVLAN is used for simplifying network planning

uStatic multicast can be used for filtering multicast traffic to save the network bandwidth

uSW-Ring and STP/RSTP can achieve network redundancy, preventing network storm

uSupport multiple serial port modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP

uSupport multiple CAN port modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
