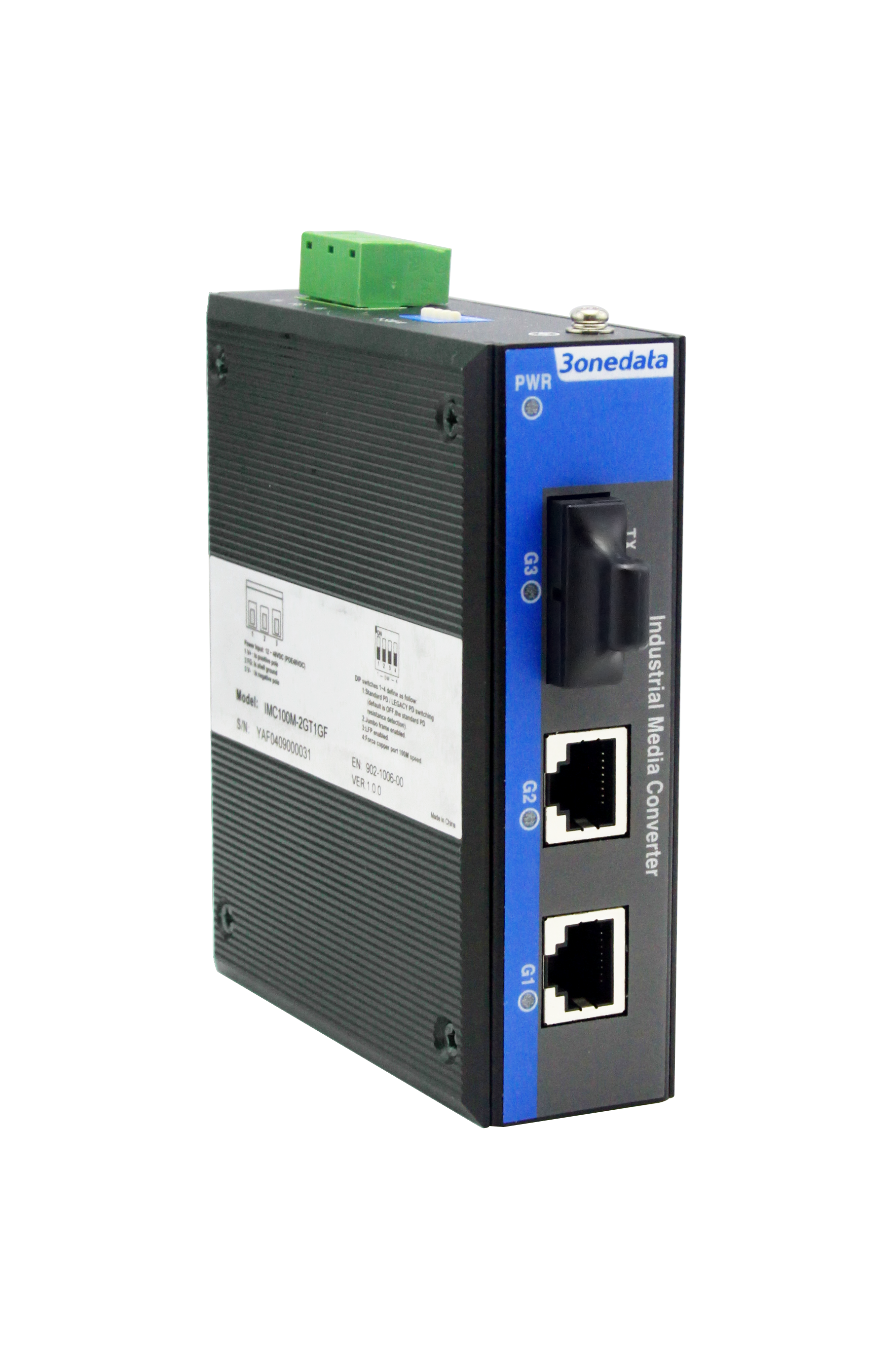

IMC100M Series

DIN-Rail Mounting 1/2 Copper Ports + 1 Fiber Port 100M/Gigabit Industrial Media Converter

uSupport up to 2 100M copper ports, 1 100M fiber port, 2 Gigabit copper ports or 1 Gigabit fiber port

uInput voltage: 12~48VDC or 220VAC

uSupport -40~75 wide operating temperature range



IMC100M Series are 2/3-port 100M/Gigabit industrial media converter. This series provide 6 products and support a variety of interfaces including 100M copper ports, Gigabit copper ports, 100M fiber ports, Gigabit fiber ports and Gigabit SFP slots. They adopt DIN-Rail mounting to meet the requirements of different application scenes.

The DIP switch could implement functions like local and remote control, and flow control. The 1 copper port + 1 fiber port products support LFP. When the port of the device has link failures, the LFP indicator would be on to send alert, offering quick troubleshooting on the scene. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
