5 Port Layer 2 Managed Industrial Ethernet Switch with Two Serial Ports

Overview of 3onedata's 5 Port Layer 2 Managed Ethernet Switch with Two Serial Ports IES615-2DI Series

IES615-2DI series are layer 2 managed industrial Ethernet switches with 2 3IN1 serial ports and 5 Ethernet ports. This series include three types of products and provide multiple ports, such as 100M fiber ports, copper ports and 3IN1 serial ports. They also support DIN-Rail mounting and wall mounting, which can meet the requirements of different application scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections and multiple operating modes like TCP Server. Moreover, it supports CLI, WEB, Telnet, SNMP and other access modes. It can provide users with good experience via friendly design of network management system interface, simple and convenient operation.
DIP switch can instantly restore factory defaults and achieve product upgrading. When the link failure of power supply or port occurs, ALARM indicator will light up and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.


Additional Features
SNMPv1/v2c is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
File management is convenient for rapid configuration and online upgrade of the device
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device administrative security
Relay alarm is convenient for troubleshooting of construction site
VLAN can simplify the network planning
Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
Static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and RSTP can achieve network redundancy, preventing network storm
Support multiple operating modes of serial port: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS
Management	Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, File Management, Port Statistics
Security	Classification of User Permissions, Relay Alarm (Port Alarm and Power Supply Alarm)
Switch Function	802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
Unicast / Multicast	Static Multicast
Redundancy Protocol	SW-Ring, RSTP
Serial Port Server Function	2 serial port servers, each one supports 4 TCP or UDP session connections. Multiple operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
Interface	Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC
Serial Port	RS-232 signal: TXD, RXD, GND RS-422 signal: T+, T-, R+, R-, GND RS-485 signal: D+, D-, GND Check bit: None, Even, Odd, Space, Mark Data bit: 5bit, 6bit, 7bit, 8bit Stop bit: 1bit, 1.5bit，2bit Baud rate: 300-115200bps Interface form: 5-pin terminal blocks Load capacity: RS-485/422 port supports 32-point polling environment(128-point could be customized) Direction control: RS-485 adopts automatic data flow control technology
LED Indicator	Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property	Transmission mode: store and forward MAC address: 2K Packet buffer size: 0.5Mbit Backplane bandwidth: 1.2G Switch time delay: <15μs
Power Requirement	12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, non-polarity, reverse connection protection Support built-in 3.0A over-current protection
Power Consumption	Model No-load (@24VDC) Full-load (@24VDC) IES615-2DI (3IN1) 2.14W 2.71W IES615-1F-2DI (3IN1) 2.54W 3.10W IES615-2F-2DI (3IN1) 3.00W 3.48W
Environmental Limit	Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Housing: IP40 protection, aluminum housing Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×138mm×110mm
Industrial Standard	IEC61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC61000-4-4 (EFT), Level 3 Power supply: ±2kV Ethernet port: ±2kV Relay: ±2kV IEC61000-4-5 (Surge), Level 3 Power supply /Relay: common mode±2kV, differential mode±1kV； Ethernet port: ±2kV； Shock: IEC60068-2-27 Free fall: IEC60068-2-23 Vibration: IES 60068-2-6
Certification	CE, FCC, RoHS
Warranty	5 years

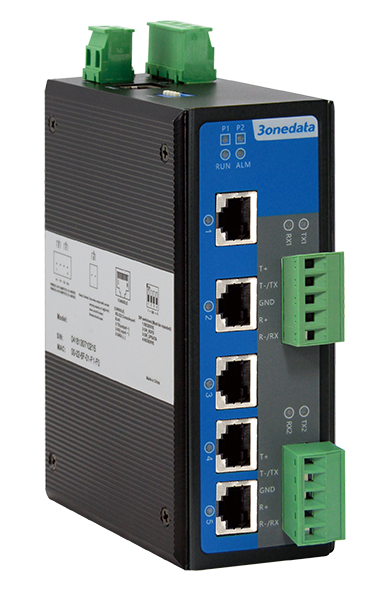

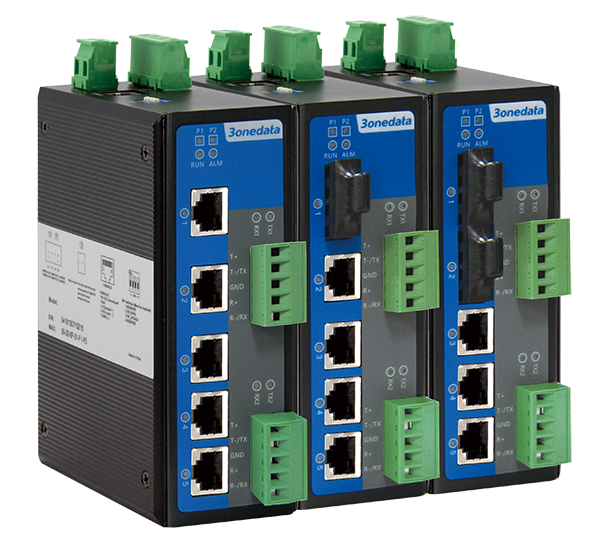

Available Models	100M Fiber Port	100M Copper Port	3IN1 Serial Port	Power Supply Range
IES615-2DI(3IN1）	—	5	2	12~48VDC dual power supply
IES615-1F-2DI(3IN1）	1	4	2

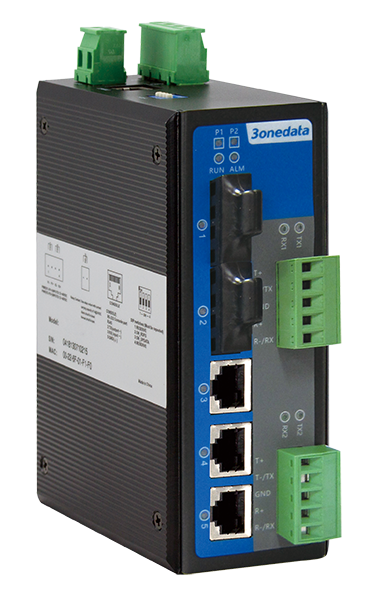

IES615-2F-2DI(3IN1）	2	3	2
