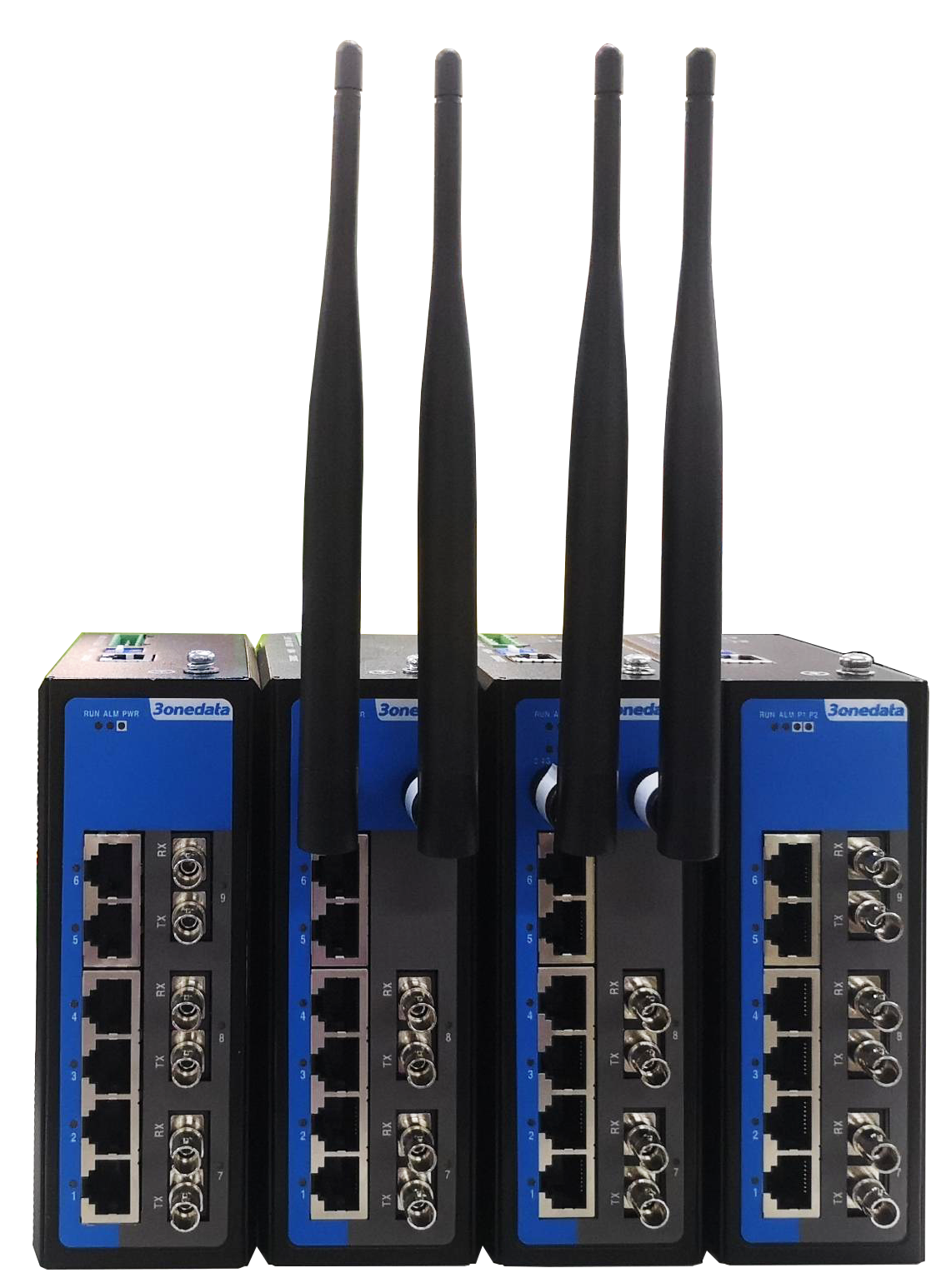

IES6100 Series

8/9 Fiber/Copper Port Layer 2 Managed Industrial Ethernet WiFi Switch

  • Support 2 2.4G WIFI antenna interfaces
  • Support wireless AP and bridge work modes
  • Support 2/3 100M fiber ports (1x9) and 6 100M copper ports
  • Adopt patented Ring technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
  • Support DC dual power supply input, input voltage: 9~60VDC; support 85~264VAC/DC power input
  • Support -40~75℃ wide operating temperature range


IES6100 series are 8/9-port fiber/copper layer 2 managed industrial Ethernet switches. This series provide 4 products and support 100M copper ports, fiber ports, WiFi antenna interfaces and other kinds of interfaces. They adopt wall or DIN-Rail mounting to meet the requirements of different application scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, MRP, 802.1Q VLAN, QoS Function, LLDP, IGMP Snooping Function, Port Trunking, Port Mirroring, 802.1X, Modbus TCP; Support wireless AP mode and bridge mode; It also possesses complete management functions, including SNMP, DHCP Server, Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
This series of device supports port alarm. DC power products adopt two independent power supply circuits to ensure that the device can still run normally when one power supply fails;When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Additional Features

SNMPv1/v2c/v3 is used for network management of various levels

Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

QoS supports real-time traffic classification and priority setting

LLDP can achieve automatic topology discovery, which is convenient for visual management

File management is convenient for rapid configuration and online upgrading of the device

Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status

Port statistics can be used for the port real time traffic statistics

Relay alarm is convenient for troubleshooting of construction site

Storm suppression can restrain broadcast, unknown multicast and unicast

VLAN is used for simplifying network planning

Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

IGMP Snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth

Ring, MRP and STP/RSTP can achieve network redundancy, preventing network storm

802.1X authentication could strength the flexibility and security of network

Loop protection could efficiently eliminate the influence caused by port loopback by detecting the existence of port loopback

Support port and power connection exception alarm, port rate, CPU and memory utilization rate threshold alarm

Support Modbus TCP protocol, and the client can read the switch information, which is convenient for integrated monitoring and management

Support wireless AP and bridge work modes, and can be networked wirelessly
