16 Port RS-232/485/422 Serial Port to Ethernet Server

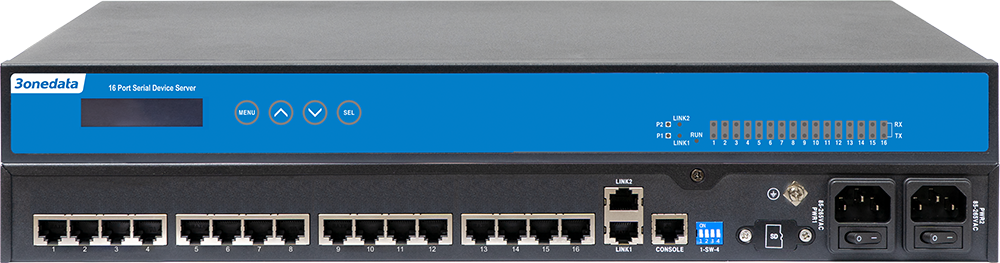

Overview of 3onedata's 16 Port RS-232/485/422 Serial Port to Ethernet Server NP6100-2T-16DI(3IN1)-RJ-2P(85-265VAC)

NP6100-2T-16DI(3IN1)-RJ-2P(85-265VAC) is serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 16 RS-232/485/422 serial ports to 2 100M Ethernet copper ports. It adopts rack mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP sessions, and it also supports RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server work modes and TELNET, WEB and SSHD access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
This product supports OLED display, which could conduct IP address configuration without using external device. SD card can achieve software upgrade of the device. The design of DIP switch could achieve restore device factory, set pull up/down resistance and terminal resistance of each serial port. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can adapt to the industrial scene environment with harsh requirements for EMC. It can be widely used in custom checkpoint system, smart gas station, data center and industrial automation, etc.


Addtional Features
Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backups
Support 110bps-921600bps line speed and non-blocking communication
Support RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes
Support OLED display that could configure device IP address
Support setting pull up/down resistor and terminal resistance by DIP switch
Support cross-gateway and cross-router communication
Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
Support delimiter matching communication, achieving various demands for serial port packaging
Support FIFO, compatible with various old type terminal devices
Support IP address and MAC address filtering, which can achieve accurate access control easily
Support graded user management to implement humanized authority management
Support serial port status, parameters and communication statistical monitoring, making the communication status easy to read
Support RTS/CTS, DTR/DSR and XON/XOFF flow control
Support virtual serial port drive access mode and automatic connection recovery after network interruption
Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
Support standard TCP/IP SOCKET application access
TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
Support TELNET and Reverse TELNET modes, build TELNET protocol session to realize the conversion of serial port data and Ethernet data between terminal device and server
Support RFC2217 protocol, which can make serial port present in the host as local COM port
Support multiple configuration forms like Windows configuration tool, TELNET, SSHD and WEB
SSHD and HTTPS can guarantee the access security of data
Support multiple alarm methods, including e-mail alarm, log alarm and system alarm
Support multiple alarm events including power supply connection, warm start, cold start, DCD and DSR
Conduct network diagnosis and troubleshooting via Ping and Traceroute
Support ARP function, which can avoid the failure of communication due to the MAC address of serial server being aged by switch or router.
Support static routing, routing table could be added manually

Ethernet	Standard: 10Base-T, 100Base-TX Protocol: TCP, UDP, ARP, HTTP, HTTPS, TELNET, ICMP, SMTP, SNTP, DHCP, DNS Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning Interface form: RJ45 Interface quantity: 2 Duplex mode: Full/Half Duplex Mode Self-adaption Work mode: each serial port can simultaneously establish up to 4 TCP/UDP session connections, support work modes such as RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server Electromagnetic isolation strength: 1.5kVDC
Serial Port	Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 16 3IN1 serial ports RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 110bps-921600bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface form: RJ45 Flow control: RTS/CTS, DTR/DSR, XON/XOFF Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485/422 end supports 256-node polling environment Transmission distance: RS-232, 15m; RS-485/422, 1200m Pull up/down resistance for RS-485: 1kΩ or 150kΩ, controlled by DIP switch Terminating resistance for RS-485: 120Ω, controlled by DIP switch Electromagnetic isolation strength: 2kVDC
Console Port	CLI command line management port (RS-232), RJ45
Configuration Method	WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration
Security	User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control
Indicator	Power supply indicator, Ethernet port indicator, serial port indicator, running indicator
Power Supply	85~265VAC dual power supply redundancy, AC power supply socket with switch
Power Consumption	No-load: 3.8W@220VAC Full-load: 9.2W@220VAC
Working Environment	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation)
Physical Characteristic	Housing: IP40 protection, metal Installation: rack mounting Dimension (W x H x D): 440mm×44mm×197.4mm Weight: 2.41kg
Industrial Standard	IEC61000-4-2 (ESD, electronic static discharge), Level 4 Air discharge:± 15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient), Level 4 Power supply: ±4kV Ethernet port: ±2kV Serial port: ±2kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV Network port: common mode±4kV, differential mode±2kV Serial port: common mode±4kV, differential mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, FCC, RoHS
Warranty	3 years

Available Models	100M Copper Port	3IN1 (RS-232/485/422)	Power Supply
NP6100-2T-16DI(3IN1)-RJ-2P(85-265VAC)	2	16	85~265VAC, dual power supply
