4 Port RS-232/485/422 Serial to Ethernet Converter

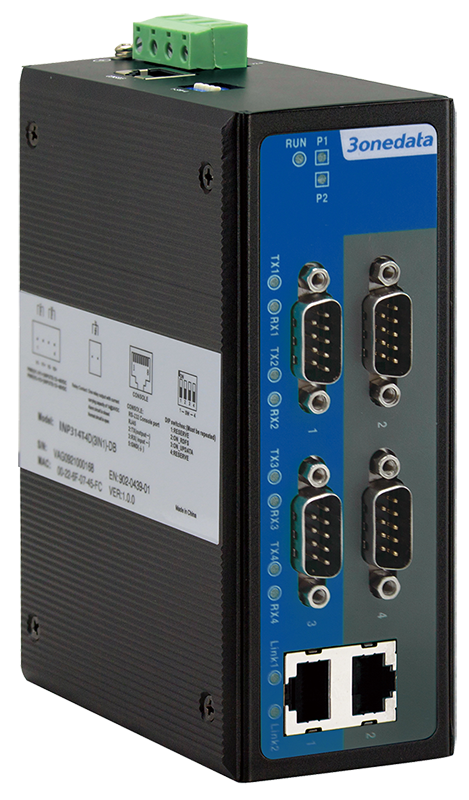

Overview of 3onedata's 4 Port RS-232/485/422 Serial to Ethernet Converter INP314T-4DI(3IN1)-DB-2P(12-48VDC)

INP314T-4DI(3IN1)-DB-2P(12-48VDC) is serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 4 3IN1 serial ports to 2 100M Ethernet copper ports which supports electromagnetic isolation. It adopts rail or wall mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.


Addtional Features
Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backups
Support 300bps-921600bps line speed and non-blocking communication
Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
Support cross-gateway and cross-router communication
Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
Support delimiter matching communication, achieving various demands for serial port packaging
Support FIFO, compatible with various old type terminal devices
Support IP address and MAC address filtering, which can achieve accurate access control easily
Support graded user management to implement humanized authority management
Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance
Support RTS/CTS, DTR/DSR and XON/XOFF flow control
Compatible with various virtual serial port management software
Support virtual serial port drive access mode and automatic connection recovery after network interruption
Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
Support standard TCP/IP SOCKET application access
TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
Support multiple configuration forms like Windows configuration tool, TELNET and WEB

Ethernet	Standard: 10Base-T, 100Base-TX Protocol: TCP, UDP, ARP, HTTP, TELNET, ICMP, DHCP, DNS Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning Interface quantity: 2 Interface form: RJ45 Duplex mode: Self-adaptive Full/Half Duplex Mode Operating mode: 4 sessions, support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang and UDP Multicast operating modes
Serial Port	Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 4 3IN1 serial ports RS-232 signal: RXD, GND, TXD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300-921600bps Data bit: 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 2bit Interface form: 3IN1 serial port, DB9 male; Directional control: RS-485 direction adopts Automatic Data Direction Control technology Load capacity: RS-485/422 end supports 32 points polling (customizable 128 points) Electromagnetic isolation strength: 2KV
Configuration Method	WEB configuration management, TELNET configuration, Windows configuration tool
Security	Classification of User Permissions, IP address filtering, MAC address filtering, WEB Console, TELNET Console
Indicator	Power indicator, Running indicator, Ethernet port indicator, Serial port transmission and receiving data indicator
Power Supply	12~48VDC, dual power supply redundancy Power supply nonpolarity
Power Consumption	No-load: 2.59W@48VDC Full-load: 2.93W@48VDC
Working environment	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%（no condensation）
Physical Characteristic	Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 53mm×138mm×110mm Weight: 640g
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Signal: common mode ±1kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE, FCC, RoHS
Warranty	3 years

Model	100M Copper Port	3IN1 (RS-232/485/422) with Isolation	Power Supply
INP314T-4D(3IN1)-DB-2P(12-48VDC)	2	4	12~48VDC, dual power supply redundancy
