Overview of 3onedata's 16 Port Unmanaged Industrial Ethernet Switch IES3016 Series
IES3016 series are 16-port 100M unmanaged industrial Ethernet switches. This series include five types of products and provide 100M copper ports, 100M fiber ports. It adopts DIN-Rail mounting to meet the requirements of different application scenes.
Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. DIP switch can achieve power supply alarm, flow control and storm suppression. When power supply occurs link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control |
| Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode Self-adaption, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: < 10μs |
| Power Requirement | 12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, reverse polarity protection, nonpolarity Support 4A overcurrent protection |
| Power Consumption | |
| Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation） |
| Physical Characteristic | Housing: IP40 protection, high-intensity corrugated metal Installation: DIN-Rail mounting Dimension (W x H x D): 70mm×160mm×130mm |
| Industrial Standard | IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV
IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV
IEC 61000-4-5 (Surge), Level 3 Power supply: common mode ±2kV, differential mode ±1kV Ethernet interface: ±2kV Relay: common mode ±2kV, differential mode ±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS, UL61010 |
| Warranty | 5 years |
| Available Models | 100M Fiber Port | 100M Copper Port | Power Supply Range |

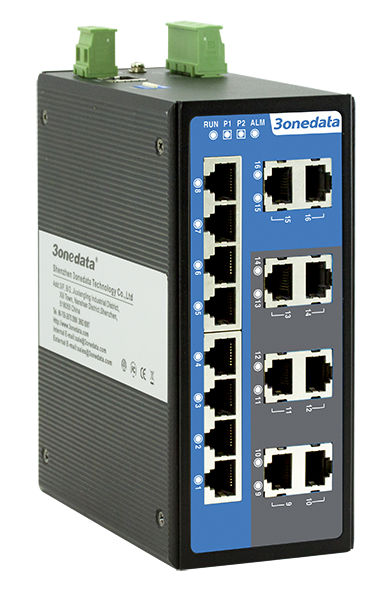

| IES3016 | - | 16 | 12~48VDC dual power supply |

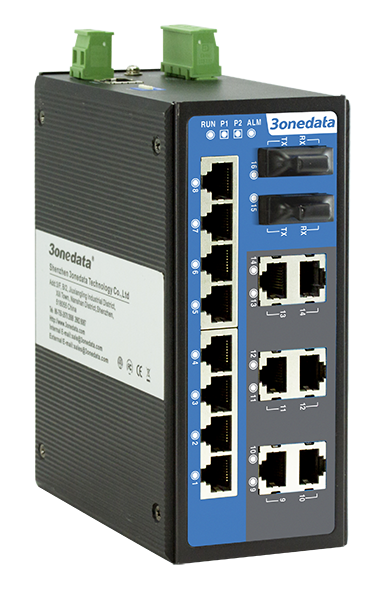

| IES3016-2F | 2 | 14 |

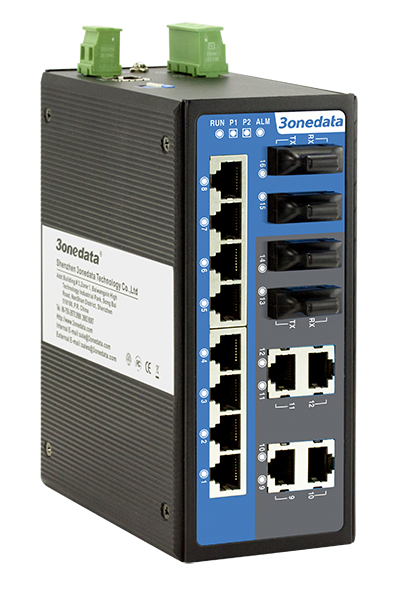

| IES3016-4F | 4 | 12 |
| IES3016-6F | 6 | 10 |

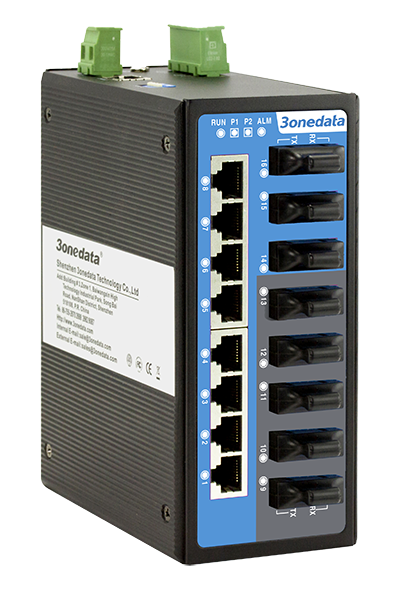

| IES3016-8F | 8 | 8 |
Supporting Document
IES3016 Datasheet
V1.0.0
2020-12-22
