Overview of 3onedata's 8 Port Unmanaged Data Switch IES318 Series

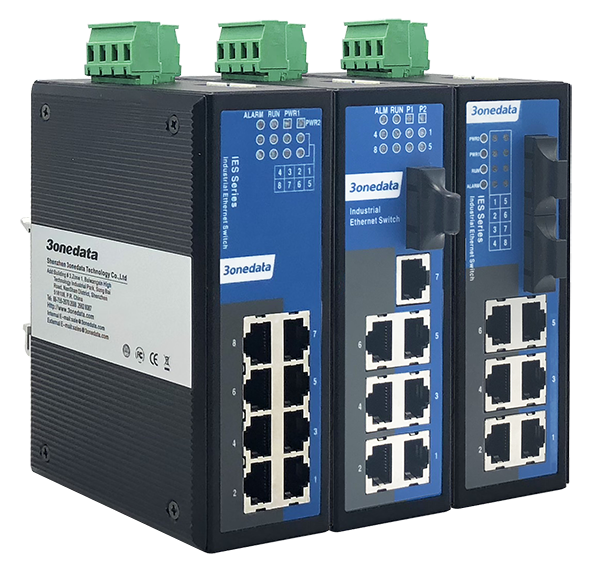

IES318 series are 8-port 100M layer 2 unmanaged industrial Ethernet switches. This series include 3 types of products and provide 100M fiber and copper ports. They also support DIN-Rail mounting and wall mounting, which can meet the requirements of different application scenes.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can implement port alarm and power supply alarm. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX |
| Interface | Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-adaption, MDI/MDI-X Autotunning Fiber port: 100Base-FX，SC/ST/FC optional Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
| Switch Property | Transmission mode: store and forward MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 1.6G Switch time delay: <10μs |
| Power Requirement | 12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, non-polarity, reverse connection protection |
| Power Consumption | |
| Environmental Limit | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation） |
| Physical Characteristic | Housing: IP30 protection, high-intensity corrugated metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×136mm×105mm Weight: 900g |
| Industrial Standard | IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV
IEC 61000-4-3 (RS), Level 3 Test level: 10V/m Frequency range: 80MHz-1GHz
IEC 61000-4-4 (EFT), Level 4 Power supply; ±4kV Ethernet port: ±2kV Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV Ethernet port: ±4kV Relay：common mode±4kV, differential mode±2kV
IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 150kHz-80MHz
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS, UL61010 |
| Warranty | 5 years |
| Available Models | 100M Fiber Port | 100M Copper Port | Power Supply Range |

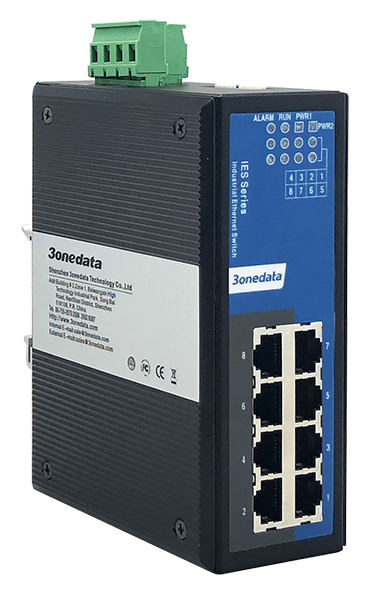

| IES318 | ― | 8 | 12~48VDC dual power supply |

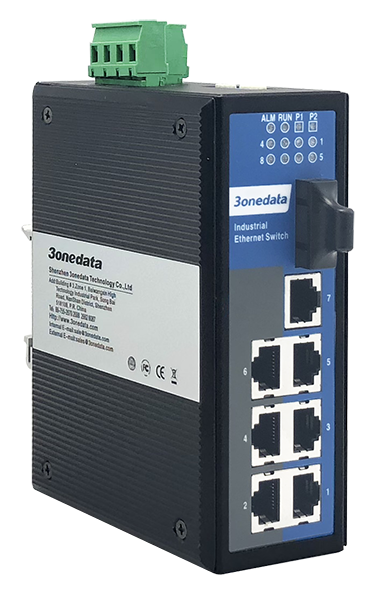

| IES318-1F | 1 | 7 |

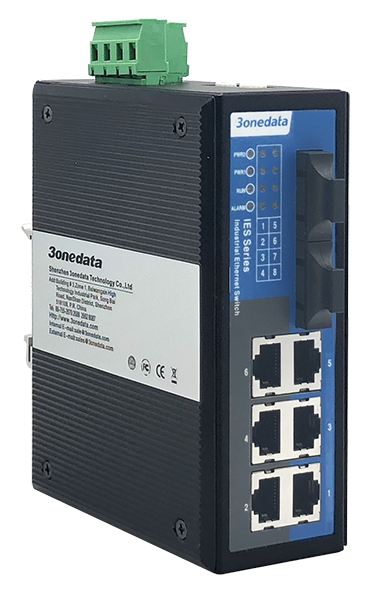

| IES318-2F | 2 | 6 |
