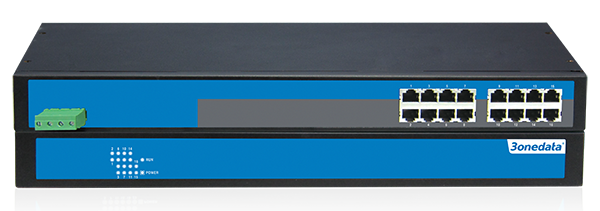

16 Port Unmanaged Ethernet Switch

Standard & Protocol

IEEE 802.3 for 10Base-TX

IEEE 802.3u for 100Base-TX

Interface

Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

LED Indicator

Running Indicator, Port Indicator, Power Supply Indicator

Switch Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 2.5M

Backplane bandwidth: 12.8G

Switch time delay: < 15μs

Power Requirement

100-240VAC/DC, 4-pin 7.62mm pitch terminal blocks

Power Consumption

No-load: 4.2W@220VAC

Full-load: 6.7W@220VAC

Environmental Limit

Operating temperature: 0~70℃

Storage temperature: -40~75℃

Relative humidity: 5%～95%（no condensation）

Physical Characteristic

Housing: IP30 protection, metal

Installation: 19 inches rack mounting

Dimension (W x H x D): 441.6mm×44.6mm×207.9mm

Industrial Standard

IEC61000-4-2 (ESD)，Level 4

Air discharge: ±8kV

Contact discharge: ±8kV

IEC61000-4-4 (EFT), Level 4

Power supply: ±4kV

Ethernet interface: ±2kV

IEC61000-4-5 (Surge), Level 4

Power supply: common mode ±4kV, differential mode ±2kV

Ethernet interface: ±4kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS

Warranty

3 years
