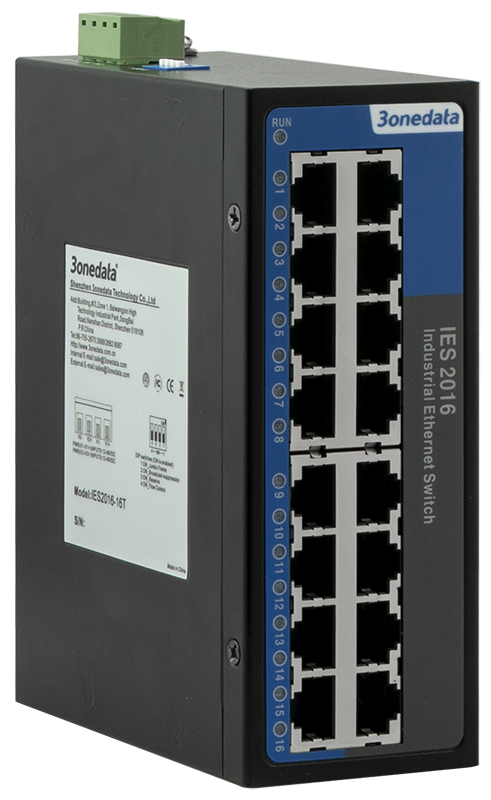

Overview of 3onedata's Unmanaged 16 Port Switch IES2016-16T Series
IES2016-16T series are 16-port 100M unmanaged industrial Ethernet switches. It has 2 alternative products, and provides 100M copper ports and two power supply solutions including 220VAC, and 12~48VDC. It adopts DIN-Rail mounting or wall mounting, which can meet the requirements of different application scenes.
The DIP switch can achieve flow control and storm suppression. Hardware adopts fanless, low power consumption, and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in railway transportation, smart city, safe city, new energy, intelligent manufacturing, and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for flow control |
| Interface | Copper port: 10/100Base-T(X), RJ45, Full/Half Duplex Mode, MDI/MDI-X Autotunning |
| LED Indicator | Running Indicator, Power Supply Indicator, Port Indicator，Alarm Indicator(Reserved) |
| Switch Property | Transmission mode: store and forward MAC address: 8K Backplane bandwidth: 3.2G Switch time delay: <10μs |
| Power Requirement | This series product has two optional power supply solutions: Solution 1 lPower supply range: 12~48VDC lConnection method: 4-pin 5.08mm pitch terminal blocks lPower supply quantity: dual power supply redundancy backup lConnection protection: non-polarity lOver-current protection: 3A Solution 2 lPower supply input: 220VAC (100~240VAC) lConnection method: 4-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) lOver-current protection: 2A |
| Power Consumption | | Model | No-load(@220VAC) | Full-load(@220VAC) | | IES2016-16T-P220 | 0.7W | 2.6W |
|
| Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×138mm×110mm |
| Industrial Standard | IEC 61000-4-2 (ESD, Electro-Static discharge), Level 4 lAir discharge: ±15kV lContact discharge: ±8kV IEC 61000-4-4 (EFT, Electrical Fast Transients), Level 3 lPower supply: ±2kV lEthernet port: ±1kV IEC 61000-4-5 (Surge), Level 4 lPower supply: common mode±4kV, differential mode±2kV lEthernet port: common mode±4kV, differential mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | 100M Copper Port | Power Supply |
| IES2016-16T-2P48 | 16 | Dual power supply 12~48VDC |
| IES2016-16T-P220 | 16 | 220VAC |
