| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X 3GPP Rel-15 for 5G NR 3GPP Rel-14 for 4G LTX 3GPP Rel-18 for 3G WCDMA IEEE802.11b/g/n/a/ac for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE802.3af/at for PoE/PoE+ |
| WAN Mode | Link backup (access to Internet by WAN network or 5G dialing, WAN supports DHCP/static IP/PPPoE dialing); WiFi & 4G/5G roaming (wireless roaming or access to Internet by 5G dialing) |
| Cellular Network | 3G/4G/5G cellular network, network type 5G NR/LTE FDD/ LTE TDD/ WCDMA/ TD-SCDMA/ CDMA/ EVDO |
| WLAN | WAP/WAP2 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WMM |
| Management | Mobile network detection, local area network, dynamic domain name, UPnP settings, static DHCP, QoS, log management, device alias, access settings, timed restart, backup and recovery, firmware upgrade |
| Security Policy | Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, URL filtering, keyword filtering, IP address black/white list, port forwarding, port redirection, DMZ settings |
| VPN Tunnel | GRE, PPTP Client/Server, L2TP Client/Server, IPSec |
| Multicast | Multicast Translate |
| Troubleshooting | System Log, Ping Test and Route Tracking |
| Routing Technique | VRRP, RIP, OSPF, routing list settings |
| Time Management | NTP Client |
| Wi-Fi Radio Frequency | 802.11B/g/n: 2.412GHz~2.4835GHz 802.11Ac/n/a: 5.18GHz~5.825GHz RF power output: 20dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Wi-Fi Receiving Sensitivity | 802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7 802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7 802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps 802.11b: -93dBm@1Mbps, -87dBm@11Mbps 802.11ac: -84dBm@MCS0, -59dBm@MCS9 |
| Wi-Fi Transmitting Power | 802.11n_HT40: 23dBm@MCS0, 20dBm@MCS7 802.11n_HT20: 23dBm@MCS0, 20dBm@MCS7 802.11g/a: 23dBm@6Mbps, 20dBm@54Mbps 802.11b: 23dBm@1Mbps, 20dBm@11Mbps 802.11ac: 23dBm@MCS0, 20dBm@MCS9 |
| 5G NR Operating Frequency Band | 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n48/n66/n71/n77/ n78/n79 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/
B20/B25/B26/B28/B29/B30/B32/B66/B71 4G LTE-TDD: B34/B38/39/B40/B41/B42/B48 3G WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 |
| 5G NR Bandwidth (downward, upward) | 5G SA: DL 2.1Gbps, UL 900Mbps 5G NSA: DL 2.5Gbps, UL 650Mbps LTE: DL 1Gbps, UL 200Mbps WCDMA: DL 42Mbps, UL 5.76Mbps |

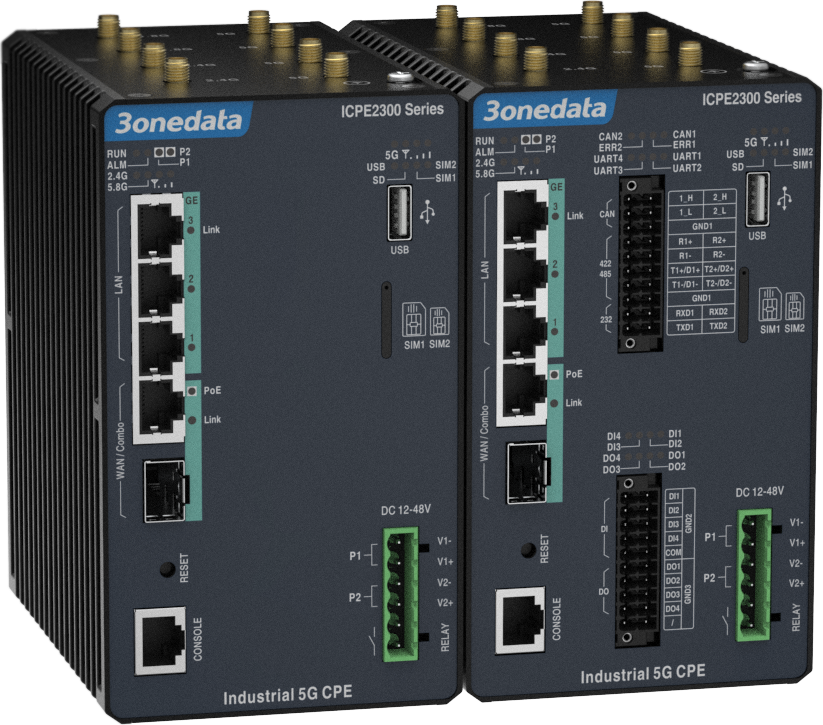

| Interface | Gigabit copper port: 3 10/100/1000Base-T(X) self-adaptive RJ45 LAN ports, support automatic flow control, full/half duplex mode, MDI/MDI-X self-adaption Gigabit COMBO port: 1 10/100/1000Base-T(X) self-adapting RJ45 port or 1000 Base-X SFP slot, it’s WAN port by default; The copper port supports automatic flow control, full/half duplex, MDI/MDI-X self-adaptation, and support PoE power receiving Antenna interface: 2 2.4G antenna interfaces, RP-SMA-K(Female) 2 5.8G antenna interfaces, RP-SMA-K(Female) 4 5G Sub-6G antenna interfaces, SMA-K(Female) Serial port (optional): 2 RS-232 and 2 RS-485/422, with 2*10-pin 3.5mm pitch terminal blocks (serial port occupies 14 pins) CAN (optional): 2 CAN, with 2*10PIN 3.5mm pitch terminal blocks (CAN occupies 6 pins) I/O port (optional): 4 DI and 4 DO, with 2*10PIN 3.5mm pitch terminal blocks USB port: 1 Type-A USB 2.0 Female, this interface is reserved SIM card slot: 1 Micro SIM card slot and 1 Nano SIM card slot, redundant backup; 1 Micro-SD card Slot for reservation Console port: CLI command line management port(RS-232), RJ45 Alarm port: 6-pin 5.08mm pitch terminal blocks (2 pins for relay), support 1 relay alarm output, this interface is reserved |
| Serial Port (optional) | Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 2 RS-232 serial ports, 2 RS-485/422 2IN1 serial ports RS-232 signal: RXD, TXD, GND RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 110bps-921600bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface form: adopt 2*10PIN 3.5mm pitch terminal blocks (serial port occupies 14 pins) Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485/422 end supports 32-node polling environment Transmission distance: RS-232, 15m; RS-485/422, 1200m Work modes: Realcom, TCP Server, TCP Client, UDP Server, UDP Client |
| CAN (optional) | Standard: CAN2.0A, CAN2.0B Interface quantity: 2 CAN ports CAN signal: CANH, CANL Duplex mode: 2-wire Half Duplex Mode Baud Rate:5/10/20/50/100/125/250/500/800/1000kbps Load capacity: support concurrent transmitting of 110 nodes Transmission distance: 40m~10km Interface form: 2*10PIN 3.5mm pitch terminal blocks (CAN occupies 6 pins) Work mode: TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast |
| I/O Port (optional) | Interface quantity: 4 DI input, 4 DO output Interface form: 2*10PIN 3.5mm pitch terminal blocks (DI channel occupies 10 pins, DO channel occupies 8 pins) DI: l Digital filtering: software configuration (1-65535ms) l Counter frequency: ≤1kHz l Working mode: DI or counter l Input type: - dry contact (ON: GND short circuit; OFF: open circuit) - wet contact Source(NPN) (ON: 0~3VDC; OFF: 10~30VDC) - wet contact Sink(PNP) (ON: 10~30VDC; OFF: 0~3VDC) DO: l Pulse frequency: ≤ 500Hz l Working mode: DO or pulse output l Output type: Sink (PNP) l Rated current: 200mA/Channel l Overcurrent protection: 650mA/Channel l Overvoltage protection: 45VDC |
| Power Supply | WAN port: supports PoE power receiving, which conforms to IEEE802.3af/at standard Power supply terminal: supports 12~48VDC single power and dual power input, supports input redundancy and nonpolarity, adopting 6-pin 5.08mm pitch terminal block(4-pin power supply) |
| Indicator | Running indicator, alarm indicator, power indicator, 2.4G indicator, 5.8G indicator, Wireless bridge signal strength indicator, interface indicator, PoE indicator, 5G indicator, 5G bridge signal strength indicator, USB indicator, SD card indicator, SIM card indicator, serial port indicator, CAN port indicator, DI indicator, DO indicator |
| Power Consumption | ICPE2300A-BW-8A25-1GC3GT-PD2P12_48 l No-load: 6.5W@24VDC l Full-load: 20.0W@24VDC |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 88mm×150mm×135mm Weight: 1.68kg (ICPE2300A-BW-8A25-1GC3GT-PD2P12_48) |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Power supply: ±2kV l Ethernet port: ±1kV IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Ethernet interface: ±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| MTBF | >250000 hours |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
