Embedded Mounting 2-Port Gigabit Safety Dual-Frequency Wi-Fi6 Industrial Wireless AP for Mine

uSupport 1 Gigabit SFP slot (LAN/ WAN port), 1 Gigabit copper port (LAN port), 2 2.4G/5G dual-frequency antenna interfaces

uSupport Wi-Fi6 (802.11ax), which can improve system capacity and concurrent access, and reduce transmission delay.

uSupport multiple network modes such as routing, AP, bridge and client mode.

uSupport 9~24VDC power supply input

uSupport -40~75 wide operating temperature range

uConform to the features of intrinsic safety

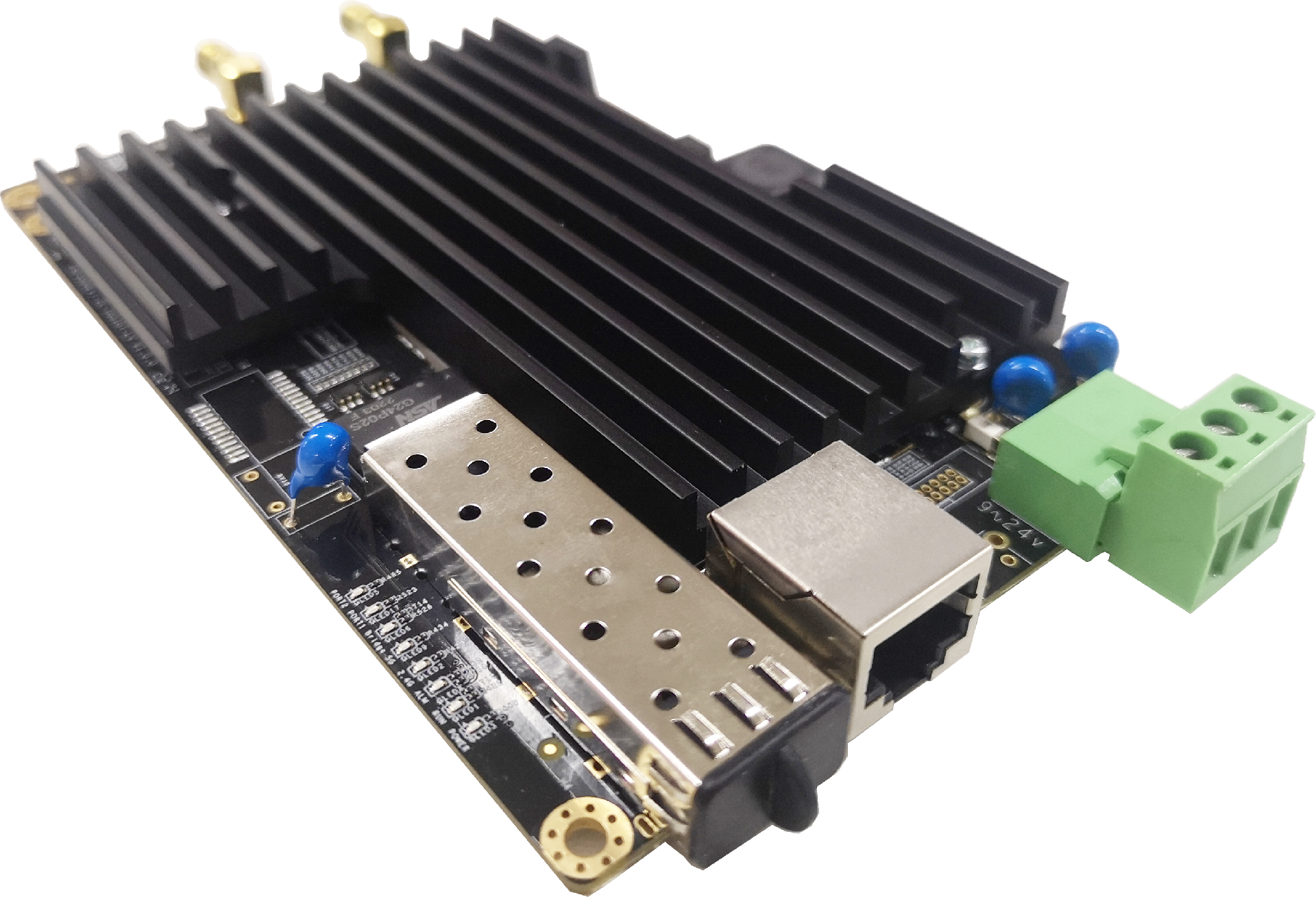

IAP3500-2E-1GT1GS-LV is Gigabit safety dual-frequency Wi-Fi6 industrial wireless AP for mine. This product provides Gigabit copper port (LAN), Gigabit SFP slot (LAN/WAN), 2.4G/5G dual-frequency antenna interface, supports embedded installation, and can meet the needs of different application sites.

The management system supports route, AP, bridge, client  and other work modes; Support IEEE802.11a/b/g/n/ac/ax wireless technology, the wireless rate of the whole device is up to 1774.5Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, port forwarding, port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.

RESET button can reboot the device and restore factory defaults. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in wireless communication, wireless video transmission and other WiFi coverage system design in mining system and provides reliable and rapid solutions for users’ Ethernet device connection.

Features and Benefits

u Support routing mode, AP mode, bridge mode, client mode, support connection methods like WDS and universal bridge

u The client mode supports wireless NAT connection, and the wireless network can connect with the external network through PPPoE, static IP and DHCP dynamic acquisition, and implement route switch

u Support high-speed wireless connection, the transmission speed of 2.4GHz can reach up to 573.5Mbps, the transmission speed of 5GHz can reach up to 1201Mbps

u Support 2 2.4G/5G dual-frequency combined antenna interfaces

u Support wireless probe, it can realize personal positioning function with location engine

u Support SNMP network management and Trap alarm

u Support multiple SSID settings and provide SSID hiding function

u Support Wireless encryption methods of WPA/WPA2/WPA3 personal edition and WPA2/WPA3 enterprise edition, AC management can specify AC device information for oriented management

u Roaming proxy can realize roaming proxy host across network segments, effectively avoiding the data interruption caused by the failure to update the forwarding list of upper-level device in time

u Support IP filtering, MAC filtering, URL filtering, port forwarding, port redirection, ARP binding, DMZ isolation area and other firewall functions

u Support wireless user management and user event, and support blacklist and whitelist filtering rules, wireless user online/offline notification

u WMM can achieve better transmission quality of voice, video and other applications in wireless networks

u Network detection can realize network diagnosis and specific network recovery operations
