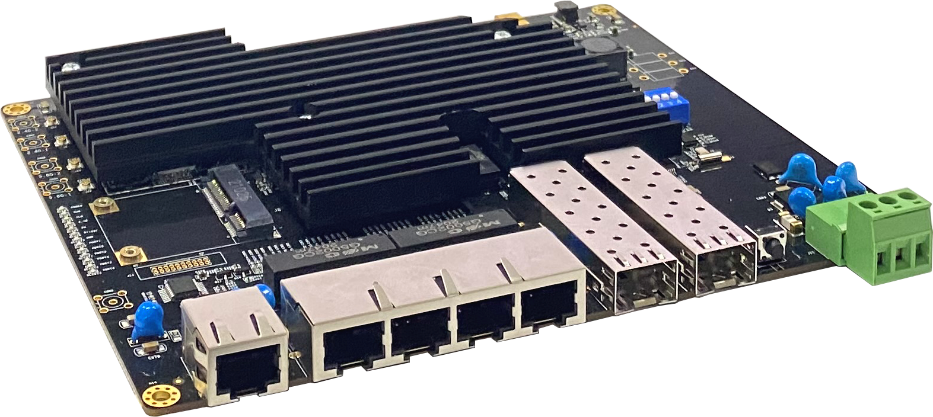

Embedded Mounting 6-Port Gigabit Safety Dual-Frequency Wi-Fi6 Industrial Wireless AP for Mine

uSupport 2 Gigabit SFP slots (LAN/ WAN port), 4 Gigabit copper ports(LAN port), 2 2.4G WiFi antennas and 2 5G Wi-Fi antennas

uSupport Wi-Fi6 (802.11ax), which can improve system capacity and concurrent access, and reduce transmission delay.

uSupport multiple network modes such as routing, AP, bridge and client mode.

uAdopt patented SW-Ring technology and support multiple ring functions. Automatic recovery time from network failure is <20ms

uSupport power input of 12~48VDC (the input range of safety power is 12~24VDC)

uSupport -40~75 wide operating temperature range

uConform to the features of intrinsic safety



IAP3600Exi-2225-2GS4GT-SMA-P12_48 is a Gigabit safety dual-frequency Wi-Fi6 industrial wireless AP for mine. This product provides Gigabit copper port (LAN), Gigabit SFP slot (LAN/WAN), 2.4G antenna interface and 5G antenna interface, supports embedded installation, and can meet the needs of different application sites.

The management system supports route, AP, bridge, client and other work modes; Support IEEE802.11a/b/g/n/ac/ax wireless technology, the wireless rate of the whole device is up to 1774.5Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, port forwarding, port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.

RESET button can reboot the device and restore factory defaults. When the device temperature is too higher, ALM indicator would be blinking and send alerts for quick troubleshooting on the scene. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in wireless communication, wireless video transmission and other WiFi coverage system design in mining system and provides reliable and rapid solutions for users’ Ethernet device connection.

Features and Benefits

u Support routing mode, AP mode, bridge mode, client mode, support connection methods like WDS and universal bridge

u The client mode supports wireless NAT connection, and the wireless network can connect with the external network through PPPoE, static IP and DHCP dynamic acquisition, and implement route switch

u Support high-speed wireless connection, the transmission speed of 2.4GHz can reach up to 573.5Mbps, the transmission speed of 5GHz can reach up to 1201Mbps

u Support 2×2MIMO and 4 dual-RF antenna interfaces

u Support wireless probe, it can realize personal positioning function with location engine

u Support SNMP network management and Trap alarm

u Support multiple SSID settings and provide SSID hiding function

u Support WPA/WPA2/WPA3 wireless encryption method of both personal edition and enterprise edition and TKIP/AES encryption algorithm

u AC management can specify AC device information to realize directional management

u Roaming proxy can realize roaming proxy host across network segments, effectively avoiding the data interruption caused by the failure to update the forwarding list of upper-level device in time

u Supports IP filtering, MAC filtering, port forwarding, ARP binding, DMZ isolation area and other firewall functions

u Support wireless user management and user event, and support blacklist and whitelist filtering rules, wireless user online/offline notification

u WWM can achieve better transmission quality of voice, video and other applications in wireless networks

u Wireless network detection can realize wireless network diagnosis and specific network recovery operations

u SW-Ring could implement network redundancy and prevent network storm

u VLAN is used for simplifying network planning
