TNS5500D Series (8-Port)

Wall/Rail Mounting 8-Port 100M Layer 2 Managed Industrial Ethernet Switch for Rail Transit

uSupport 8 100M M12

uAdopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing function

uSupport 110VDC (66~154VDC) or 24VDC(9~36VDC) power supply input

uSupport -40~ 75 wide temperature operation

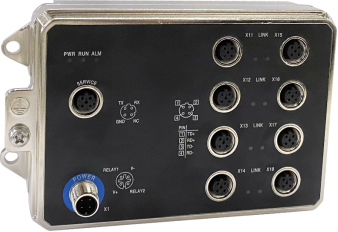

TNS5500D series is 8-port 100M layer 2 managed industrial Ethernet switch designed for rail transit. It conforms to the EN50155 and EN50121 industry standard. Ethernet interfaces, power interface and SERVICE port use firm and reliable M12 connectors which can adapt to usage scenario with severe vibration and shock. This product provides 8 100M M12 interfaces, and it adopts wall/rail mounting which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS function, IGMP Snooping, LLDP, Port Trunking, Port Mirroring. It also possesses complete management functions, including Port Setting, Bandwidth Management, Port Statistics, Access Control, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It is designed for rail transit industry and can be widely used in systems such as car PIS, CCTV, and train control.

Additional Features

u SNMPv1/v2c is used for network management of various levels

u Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

u QoS supports real-time traffic classification and priority setting

u LLDP can achieve automatic topology discovery, which is convenient for visual management

u File management is convenient for rapid configuration and online upgrading of the device

u Port statistics can be used for the port real time traffic statistics

u User password can conduct user hierarchical management to improve the device management security

u Relay alarm is convenient for troubleshooting of construction site

u VLAN can be set to simplify network planning

u Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

u Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status

u IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth

u SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm

u Loop protection could efficiently eliminate the influence caused by port loopback by detecting the existence of port loopback
