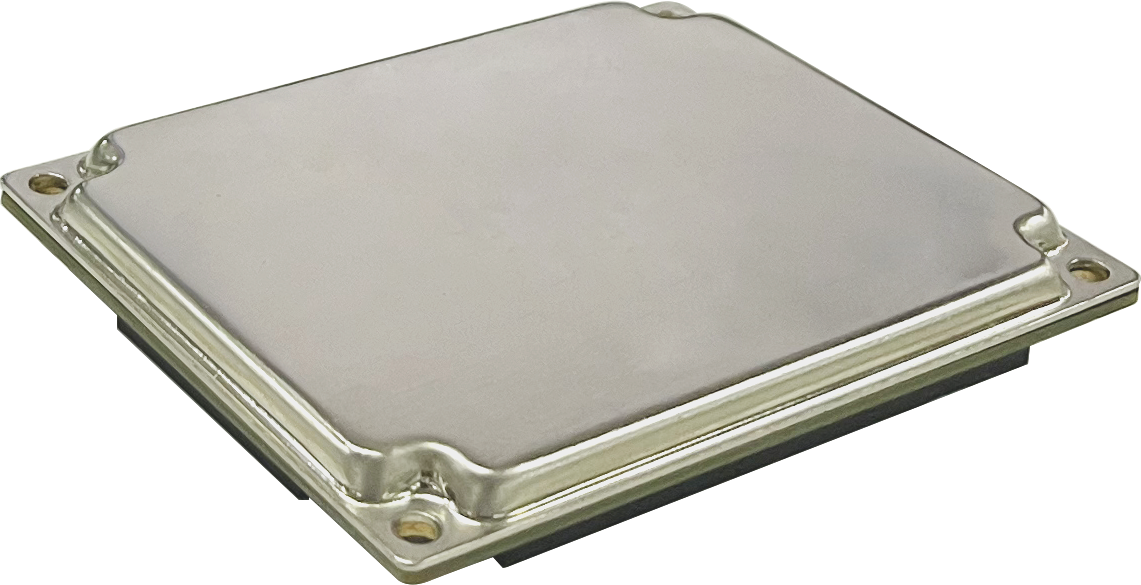

Embedded Mounting 12-Port Gigabit Layer 2 Managed Industrial Ethernet Switch Module

uSupport 8 10/100/1000Base-T(X) Gigabit copper ports and 4 1000Base-X Gigabit fiber ports

uAdopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms

uSupport multiple network protocols and industry standards, such as IPv6, STP/RSTP/MSTP, VLAN, QoS, LACP, DHCP, IGMP Snooping, LLDP, ACL, SNMP and MEP.

uInput voltage: 3.3VDC

uSupport -40~75 wide operating temperature range



IEM6300-12G is a 12-port layer 2 managed embedded industrial Gigabit Ethernet switch module, which has the characteristics of high integration, small size, rich functions, simple and convenient operation. The product provides 8 Gigabit copper ports, 4 Gigabit fiber ports; Using embedded installation mode, users can customize the PCB floor specifications, through the module pins can choose any Ethernet interface type, to meet the needs of different application sites.
The network management system supports a variety of network protocols and industry standards, such as IPv6, Ring, STP/RSTP/MSTP, DHCP Server/Snooping/Relay, VLAN, QoS, IGMP Snooping, LLDP, Port Trunking and Port Mirroring. It possesses complete management functions and supports Port Configuration, NAS, ACL, Network Diagnosis, Online Upgrade, etc. CLI, WEB, TELNET, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
Hardware adopts low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Additional Features

u IPv6 supports end-to-end security and provides enormous address space, facilitating the hierarchical network design

u SNMPv1/v2c/v3 is used for network management of various levels

u RMON can be used for efficient and flexible network monitoring

u QoS supports real-time traffic classification and priority setting

u LLDP can achieve automatic topology discovery, which is convenient for visual management

u DHCP server and DHCP client could be used for allocating IP address of different strategies

u DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server

u DHCP relay function can realize IP address, gateway, DNS configuration cross network segment

u File management is convenient for the device rapid configuration and online upgrading

u User privilege classification configuration can set user privilege level

u SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security

u Support NAS network access service and provide security assurance for multiple services

u MEP function can determine the scope and boundary of maintenance domain

u Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm

u Storm suppression can restrain broadcast, unknown multicast and unicast

u VLAN is used for simplifying network planning

u Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

u IGMP Snooping can be used for filtering multicast traffic to save the network bandwidth

u Support DDM (digital diagnostic monitoring) function, which can monitor the optical power, temperature and other real-time parameters of SFP fiber module with DDM function, facilitating the link default diagnosis of optical fiber

u Network diagnosis and troubleshooting could be conducted via Ping, Ping6 and cable detection

u Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
