Embedded Mounting Multi-Service Access Managed Industrial Ethernet Switch Module

uSupport 16 10/100/1000Base-T(X) and 4 1000Base-X

uAdopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms

uSupport multiple network protocols and industry standards, such as IPv6, STP/RSTP/MSTP, ERPS, VLAN, QoS, LACP, DHCP, IGMP Snooping, LLDP, ACL, SNMP and MEP.

uInput voltage: 3.3VDC±5%

uSupport -40~75 wide operating temperature range

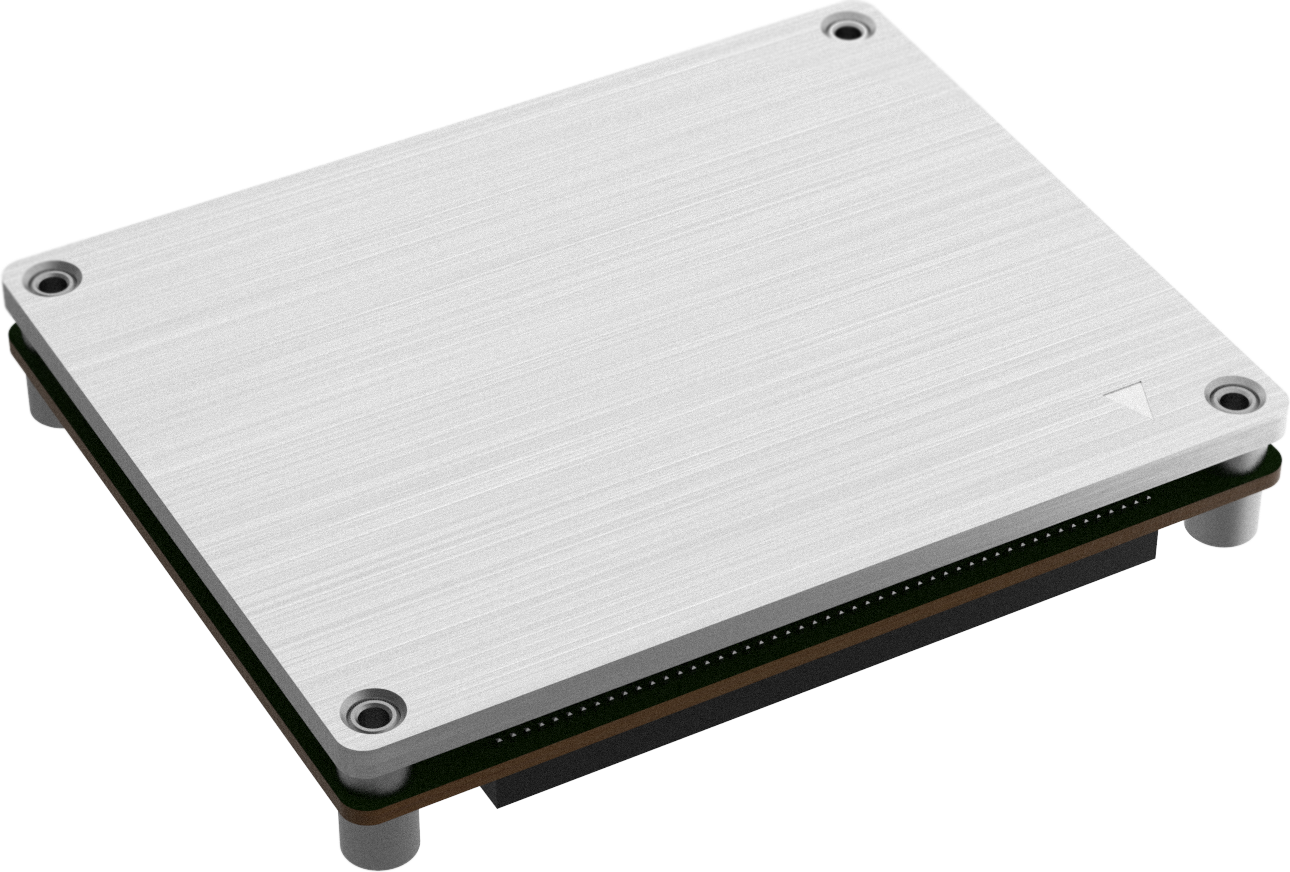

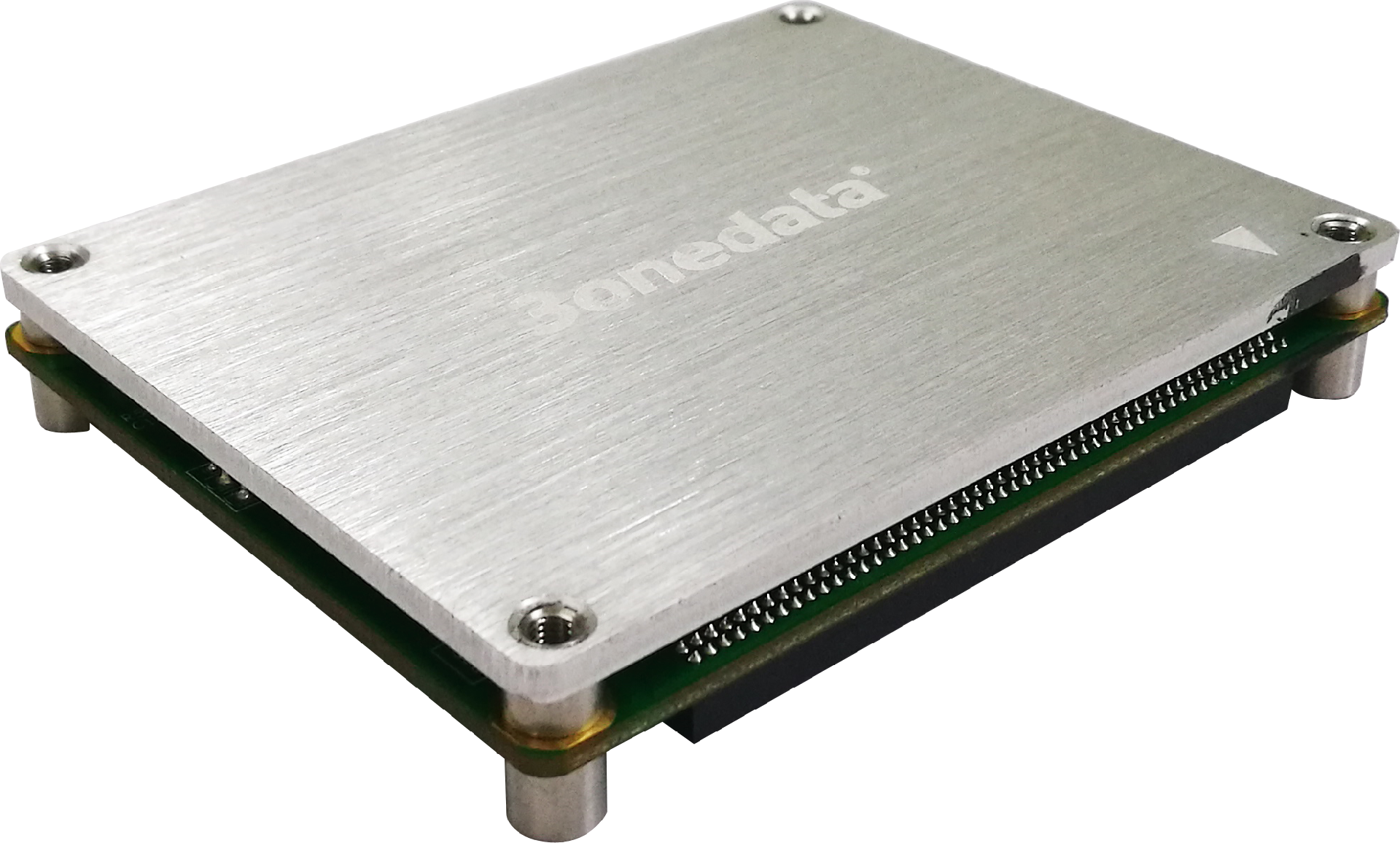

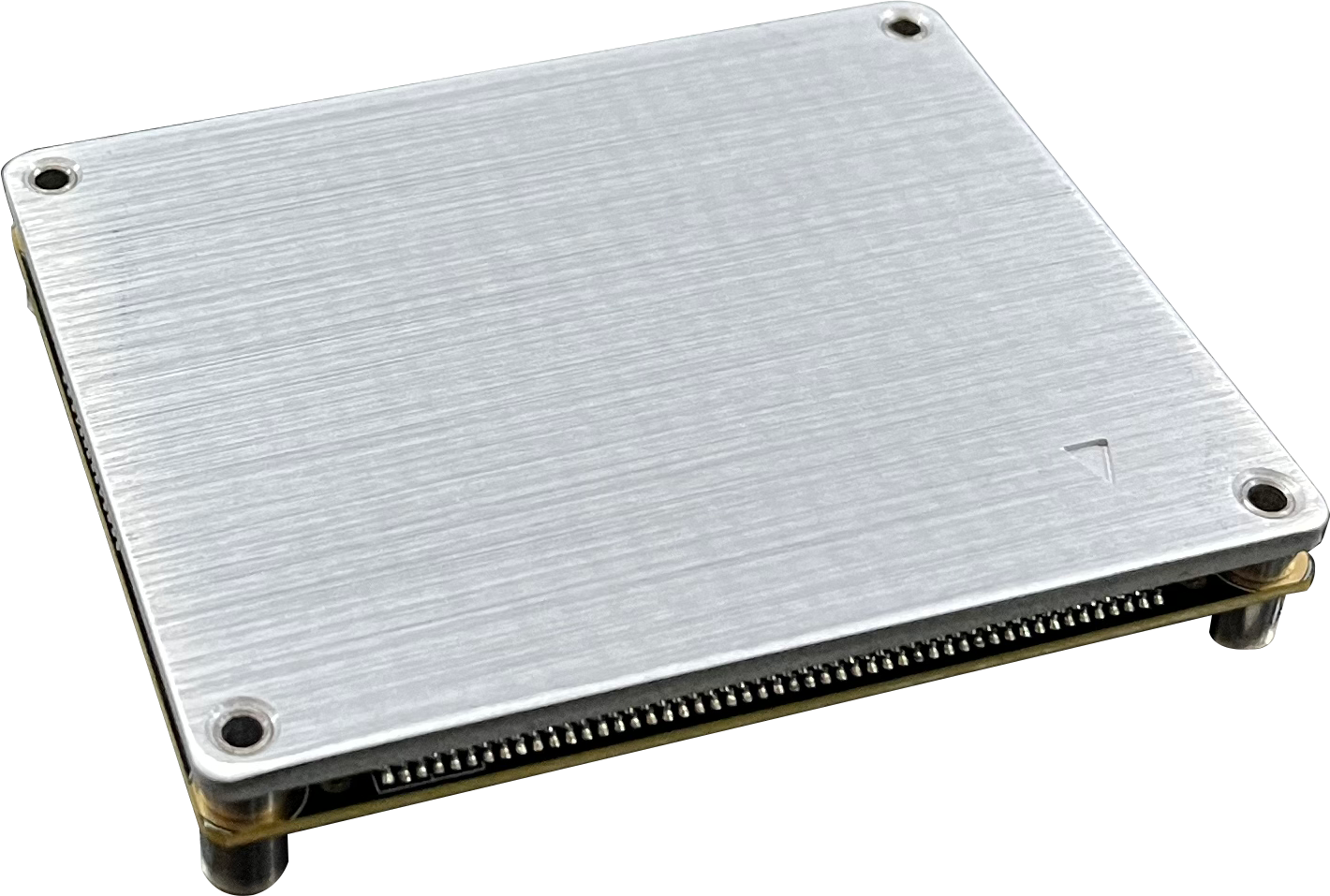

IEM6300-20G is a multi-service access managed embedded industrial Ethernet switch module, which has the characteristics of high integration, small size, rich functions, simple and convenient. The product provides 16 Gigabit copper ports, 4 Gigabit fiber ports; Using embedded installation mode, users can customize the PCB floor specifications, through the module pins can choose any Ethernet interface type, to meet the needs of different application sites.
The network management system supports a variety of network protocols and industry standards, such as IPv6, Ring, STP/RSTP/MSTP, ERPS, DHCP Server/Snooping/Relay, VLAN, QoS, IGMP Snooping, LLDP, Port Trunking and Port Mirroring. It possesses complete management functions and supports Port Configuration, NAS, ACL, Network Diagnosis, Online Upgrade, etc. CLI, WEB, TELNET, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Additional Features

uIPv6 supports end-to-end security and provides enormous address space, facilitating the hierarchical network design

uSNMPv1/v2c/v3 is used for network management of various levels

uRMON can be used for efficient and flexible network monitoring

u QoS supports real-time traffic classification and priority setting

uLLDP can achieve automatic topology discovery, which is convenient for visual management

uDHCP server and DHCP client could be used for allocating IP address of different strategies

uDHCP Snooping can ensure DHCP client gets IP address from legal DHCP server

uDHCP relay function can realize IP address, gateway, DNS configuration cross network segment

uFile management is convenient for the device rapid configuration and online upgrading

uUser privilege classification configuration can set user privilege level

uSSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security

uSupport NAS network access service and provide security assurance for multiple services

u MEP function can determine the scope and boundary of maintenance domain

uRing and STP/RSTP/MSTP can achieve network redundancy, preventing network storm

uEPRS function can realize link backup and improve the reliability of network

uStorm suppression can restrain broadcast, unknown multicast and unicast

uVLAN is used for simplifying network planning

uPort Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

uIGMP Snooping can be used for filtering multicast traffic to save the network bandwidth

uSupport DDM (digital diagnostic monitoring) function, which can monitor the optical power, temperature and other real-time parameters of SFP fiber module with DDM function, facilitating the link default diagnosis of optical fiber

uNetwork diagnosis and troubleshooting could be conducted via Ping, Ping6 and cable detection

uPort mirroring can conduct data analysis and monitoring, which is convenient for online debugging
