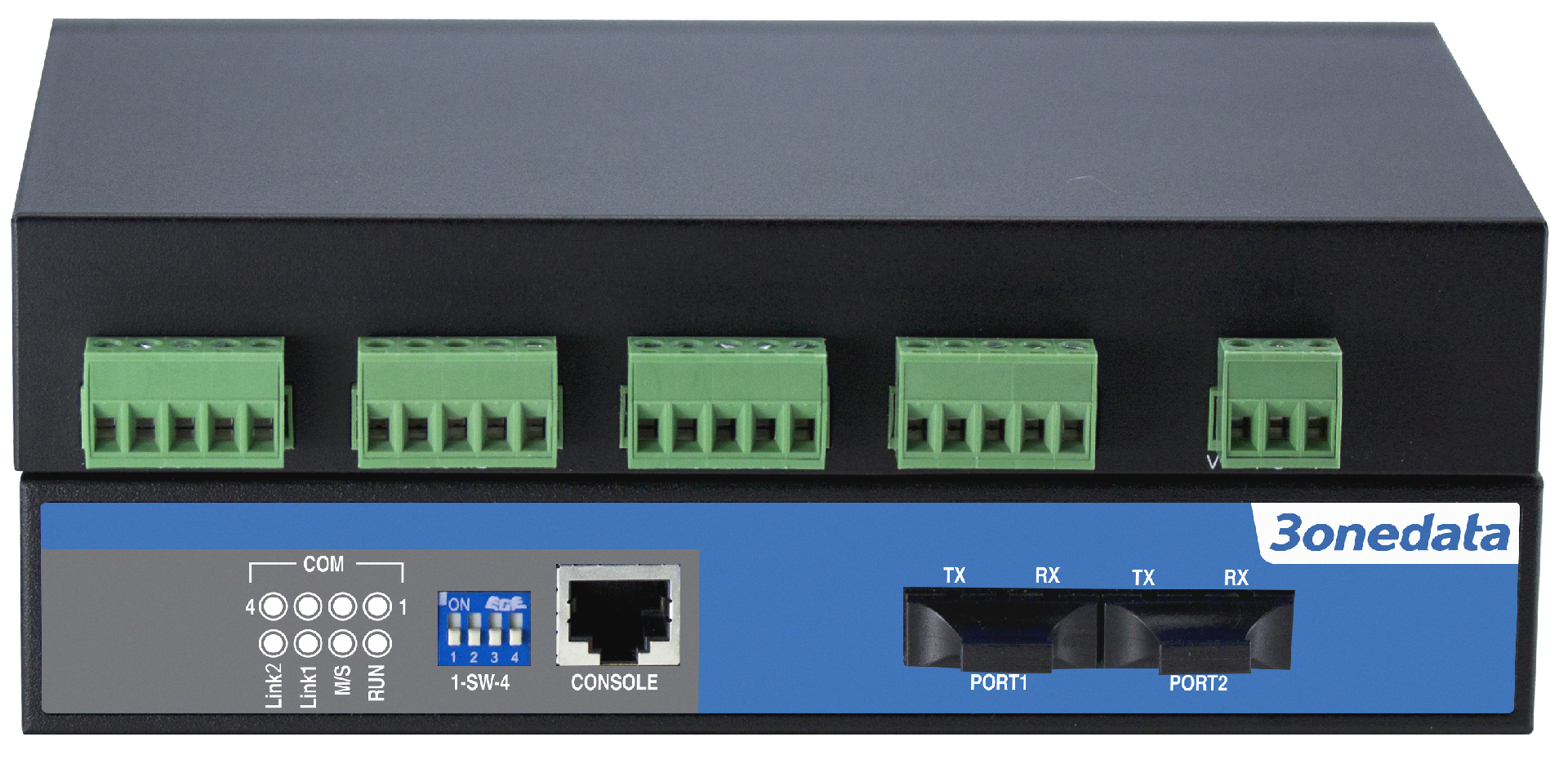

IMF204-2F Series

Wall or Rack Mounting 4 RS-485 and 2 Fiber Port Unmanaged Ring Network Serial to Fiber MODEM

uSupport 4 RS-485 serial ports to 2 fiber ports.

uFiber port supports ring network function, and the automatic recovery time of network failure is < 20ms.

uSupport 0-115200bps line speed and non-blocking communication

uSupport 12~48VDC or 100~240VAC wide voltage range(optional)



IMF204-2F series are high-performance unmanaged ring network serial to fiber MODEM designed for industrial application. This product supports point-to-point dual fiber port backup, or ring network redundancy of multiple devices. This product provides 4 RS-485 serial ports and 2 fiber ports. It adopts wall or rack mounting to meet the requirements of different application scenes.
DIP switch can implement master and slave configuration of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in electricity distribution automation, industrial automation, transportation, telecommunication and other fields.
