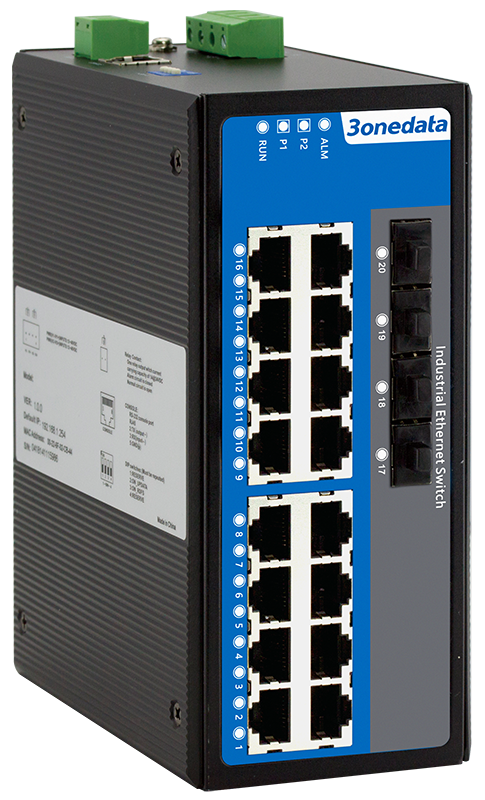

Overview of 3onedata's 16 Port or 20 Port Gigabit Layer 2 Managed Industrial Ethernet Switch IES6320 Series
IES6320 series are 16/20-port Gigabit layer 2 managed industrial Ethernet switches. This product provides Gigabit SFP slots and Gigabit copper ports. It adopts DIN-Rail mounting, which can meet the application requirements of large-scale industrial networks.
Network management system supports a variety of network protocols and industry standards, such as ARP, ERPS, STP/ RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP static multicast function, LLDP, port trunking, port mirroring, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The product supports dual DC power redundancy, and the power input is two independent power supply circuits to ensure the normal operation of the equipment in case of power failure in one circuit. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Additional Features
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server can be used for distributing IP address with different strategies
DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
File management is convenient for the device rapid configuration and online upgrading
Log management records the information of booting, operation and connection
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port statistics can be used for the port real time traffic statistics
ARP could be used for MAC address resolution
User password can conduct user hierarchical management to improve the device management security
ACL can enhance network flexibility and security
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unicast
TELNET configuration and SSH configuration guarantee secure access to data
VLAN is used for simplifying network planning
Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
Port isolation could achieve port isolation in the same VLAN and save VLAN resources
Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Ping, Traceroute, Port Loopback and SFP Digital Diagnosis could achieve network diagnosis and troubleshooting
With high reliability and stability, ERPS could avoid broadcast storm caused by data loopback
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE802.1p for CoS IEEE 802.1X for port access control IEEE 802.1AB for LLDP |
Management | SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP |
Security | User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, loop detection, aggregation protection |
Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
Unicast / Multicast | Static Multicast, IGMP-Snooping |
Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS |
Troubleshooting | Ping, Traceroute, Port Loopback, SFP Digital Diagnosis |
Time Management | NTP Client, RTC |
Interface | Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption Gigabit SFP: 1000Base-X SFP slot Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, supports 1 relay alarm output, and the current load capacity is 1A@24VDC or 0.5A@120VAC |
Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
Switch Property | Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 56G Switch time delay: <10μs |
Power Supply | Input voltage: 12~48VDC Redundant power supply: support dual power supply redundancy Connection protection: non-polarity Access terminal: 4-PIN 7.62mm pitch terminal blocks |
Power Consumption | Available Models | No-load(@48VDC) | Full-load(@48VDC) | IES6320-16GT4GS-2P48 | 11.04W | 14.88W | IES6320-16GT-2P48 | 11.04W | 13.68W | |
Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%~95% (no condensation) |
Physical Characteristic | Housing: IP40 protection, high-strength corrugated metal Installation: DIN-Rail mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: ≤ 1.08kg |
Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge:± 8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: differential mode±1kV, common mode±2kV Signal: differential mode±1kV, common mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Authentication | CE, FCC, RoHS |
Warranty | 5 years |
Available Models | Gigabit Copper Port | Gigabit SFP Slot | Power Supply |
IES6320-16GT-2P48 | 16 | — | 12~48VDC, dual power supply redundancy |
IES6320-16GT4GS-2P48 | 16 | 4 |
