Overview of 3onedata's 30 Port 10Gb SFP+ Layer 3 Managed Ethernet Switch ICS5530-16GS8GC6XS

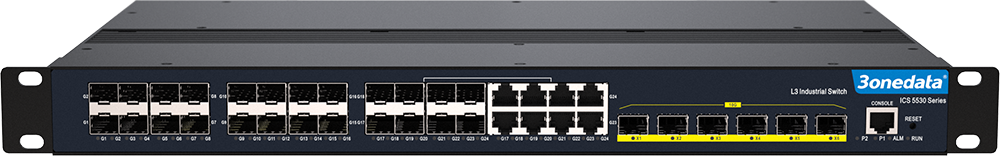

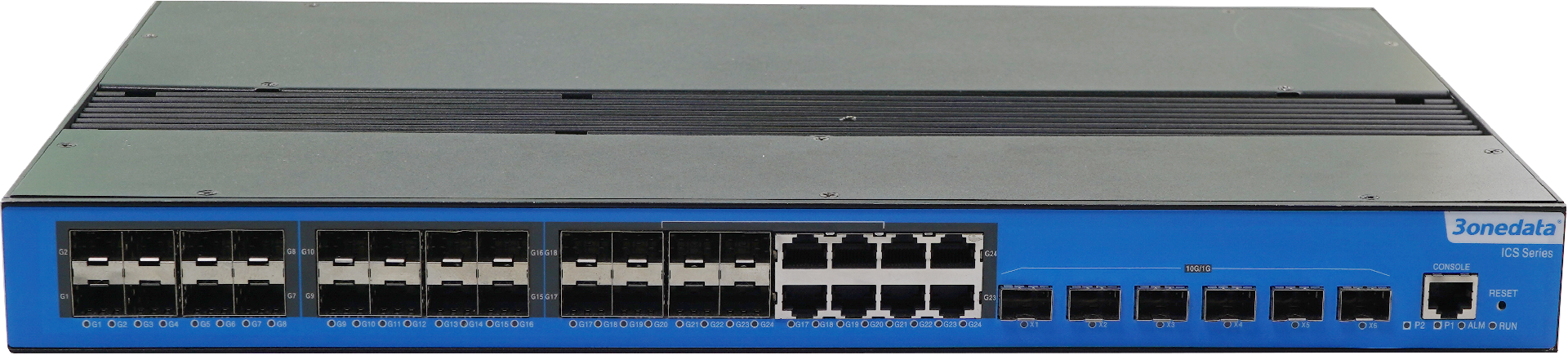

ICS5530-16GS8GC6XS-2P220 is 30-port Gigabit/10 Gigabit layer 3 managed industrial Ethernet switch. It provides Gigabit SFP ports, Gigabit fiber and copper Combo ports and 10 Gigabit SFP slots. It adopts 1U rack mounting. Abundant numbers of interfaces and bandwidth of Gigabit/10Gigabit combination to meet the application requirements of large-scale industrial network.
Network management system supports a variety of network protocols and industry standards, such as ARP, VRRP, RIP, OSPF, BGP, STP/RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP static multicast function, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
This product supports dual AC power supply. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
Additional Features
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server and DHCP client could be used for allocating IP address of different strategies
File management is convenient for the device rapid configuration and online upgrading
Log management records the information of booting, operation and connection
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port statistics can be used for the port real time traffic statistics
ARP could be used for MAC address resolution
User password can conduct user hierarchical management to improve the device management security
ACL can enhance network flexibility and security
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unicast
TELNET configuration and HTTPS configuration can guarantee the access security of data
VLAN is used for simplifying network planning
Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
PIM-DM/PIM-SM/PIM-SSM, IGMP Snooping, GMRP and static multicast can be used for filtering multicast traffic to save the network bandwidth
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
Port isolation could achieve port isolation in the same VLAN and save Vlan resources
SW-Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Ping, Traceroute, Port Loopback and DDM could achieve network diagnosis and troubleshooting
VRRP, RIP, OSPF, BGP could achieve dynamic routing configuration
With high reliability and stability, ERPS could avoid broadcast storm caused by data loopback
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3ae for 10GbE SFP+ IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP IEEE 802.3ad for LACP |
Management | SNMP v1 / v2c /v3 centralized management devices, RMON, port image, QoS, LLDP, DHCP Server, DHCP Client, file management, log management, port statistics, ARP |
Security | User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, HTTPS configuration, SSH configuration |
Switch Function | 802.1Q Vlan, Static/Dynamic Aggregation, Bandwidth Management, Flow Control, Port Isolation |
Unicast / Multicast | Static Multicast, GMRP, IGMP-Snooping |
Redundancy Technology | SW-Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
Troubleshooting | Ping, Traceroute, Port Loopback |
Routing Technique | VRRP, RIP, OSPF, BGP |
Time Management | SNTP |
Interface | Gigabit SFP slot: 1000Base-X SFP 10 Gigabit SFP slot: 10GbE SFP+ Combo port: 10/100/1000Base-T(X) or 1000Base-X SFP Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2-pin 5.08mm pitch terminal blocks, support 2 relay alarm outputs, current carrying capacity 5A@30VDC or 10A@125VAC |
Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
Switch Property | Transmission mode: store and forward MAC address: 16K Packet buffer size: 16Mbit Backplane bandwidth: 168G Switch time delay: <10μs |
Power supply | 100~240VAC/DC Support 2 AC redundant power supply inputs Support 5A overcurrent protection Single-phase socket with rocker switch |
Power consumption | No-load: 21.1W@220VAC Full-load: 37.8W@220VAC |
Working Environment | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%~95%(no condensation) |
Physical Characteristic | Housing: IP40 protection, metal Installation: 19-inch 1U rack mounting Weight: 5.248kg Dimension (W x H x D): 441.6mm×44.45mm×290mm |
Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: differential mode±1kV, common mode±2kV Signal: differential mode±1kV, common mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Authentication | CE, FCC, RoHS |
Warranty | 5 years |
MTBF | 350000 hours |
Available Models | 10Gigabit SFP | Gigabit Combo | Gigabit SFP | Power Supply |
ICS5530-16GS8GC6XS-2P220 | 6 | 8 | 16 | 100~240VAC/DC dual power supply |
