Introduction

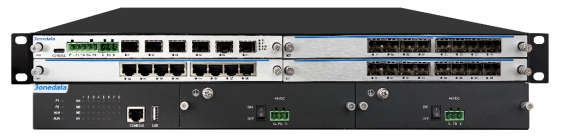

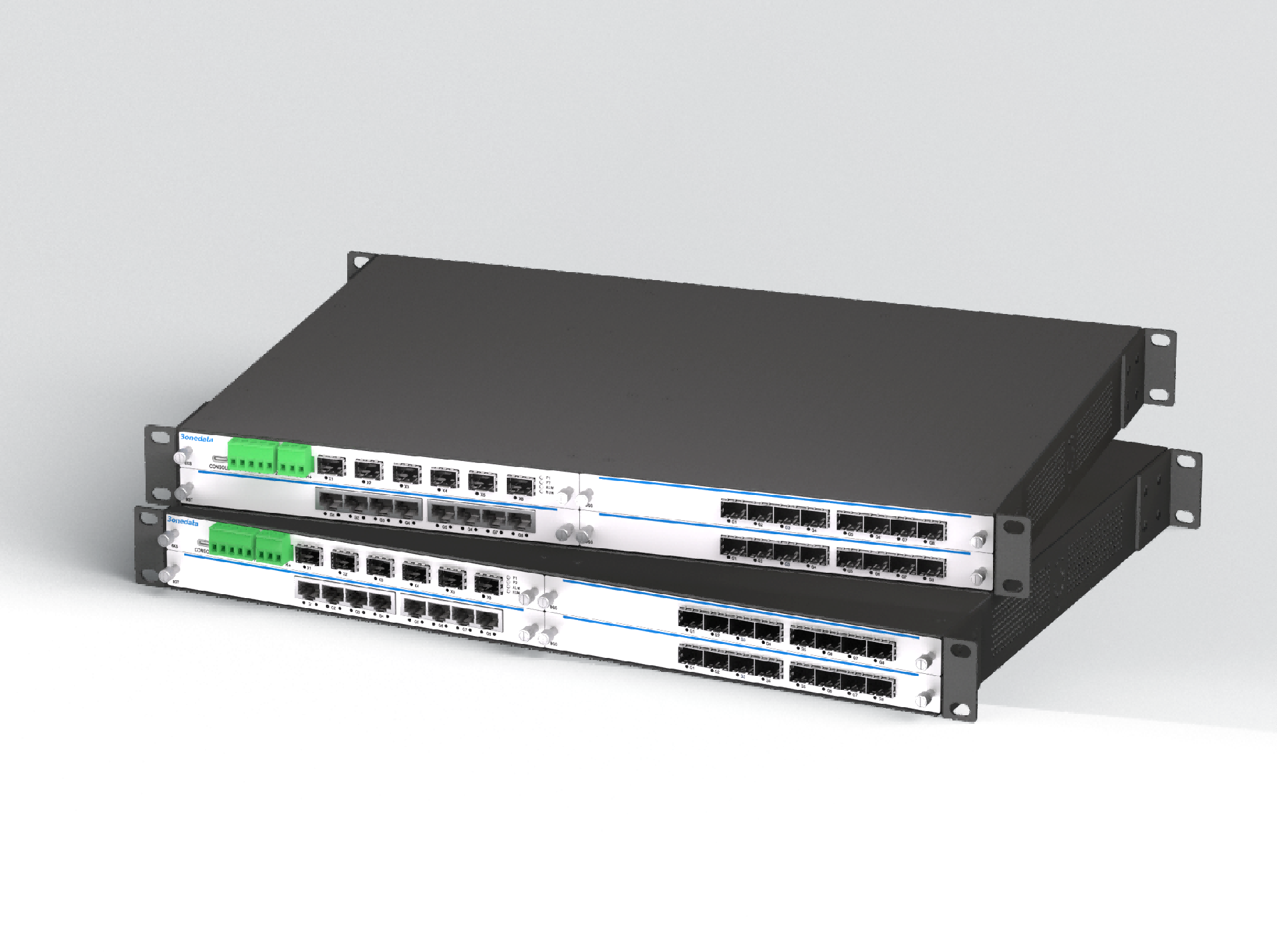

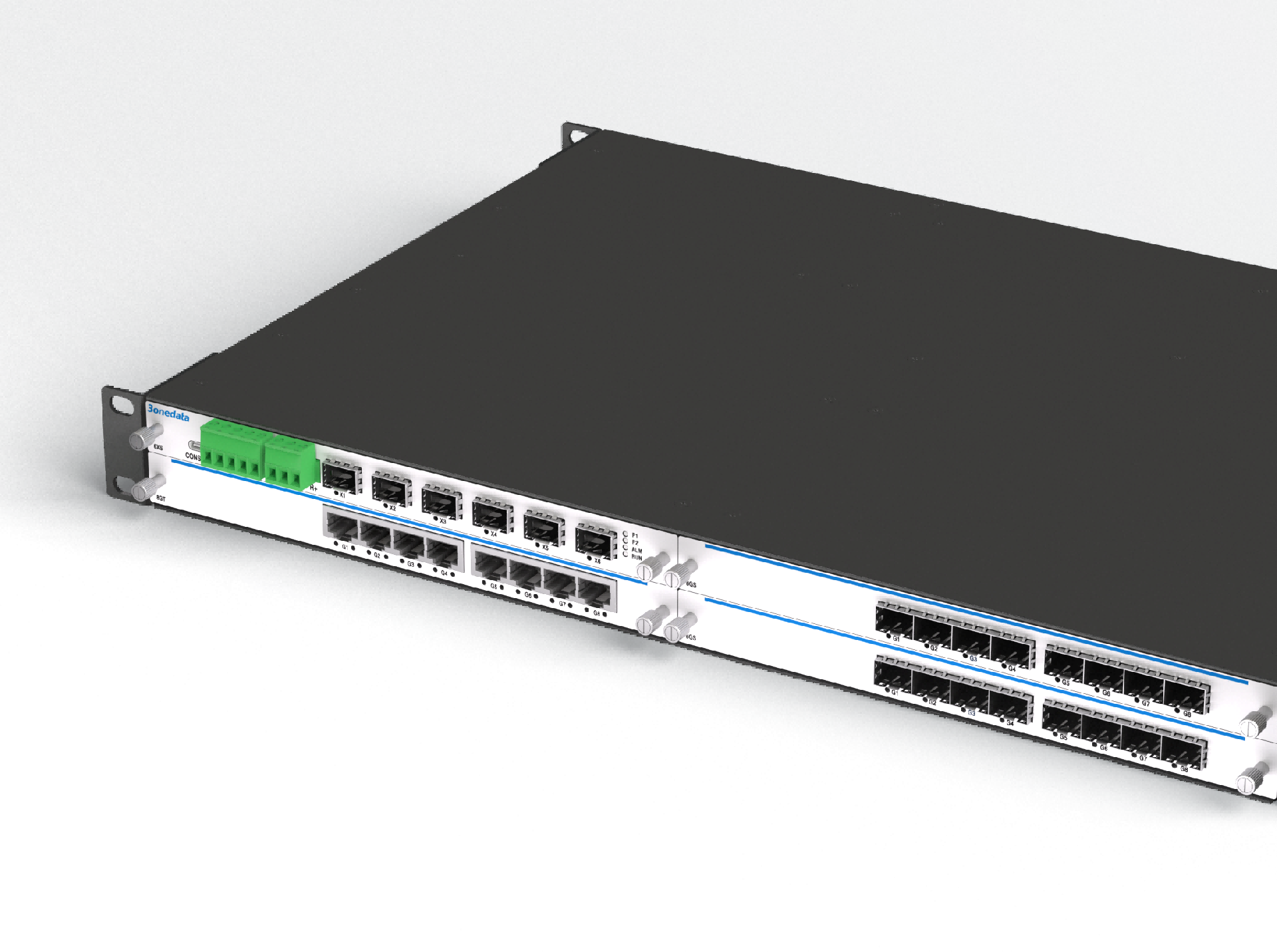

MES5400 series are 30-port Gigabit layer 3 managed industrial Ethernet switches. Provide Gigabit copper port, Gigabit SFP slot, which can negotiate the port rate and duplex mode with the device at the opposite end through self-negotiation. Support power supply solutions of 48VDC or 110~240VAC, and adopt standard rack installation method, which is specially designed for extremely severe electromagnetic interference environment to meet the anti-interference requirements of power monitoring industry.
Network management system supports various network protocols and industrial standards, such as Static Routing, RIP, VRRP, NAT, STP/RSTP/MSTP, PTP, HSR/PRP, GMRP, EPRS, 802.1Q VLAN, QoS, Modbus TCP function, DHCP Server, DHCP Client, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Port IP Binding, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on; and supports CLI, HTTP, HTTPS, Telnet, SSH and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits the industrial scene environment with harsh requirements for EMC. It can be widely used in smart substation, smart grid, energy storage, photovoltaic, wind electricity, non-electric industry SCADA system and other industrial fields.
Features and Benefits
¤ PRP/HSR can realize zero packet loss fault recovery of substation and process automation system
¤ IEC61850 MMS modeling and management ensures efficient, reliable and standardized communication between substation devices
¤ Precision Time Protocol (PTP), provide sub-microsecond synchronization accuracy to meet requirements for high-precision time synchronization
¤ SNMPv1/v2c/v3 is used for network management of various levels
¤ RMON can be used for efficient and flexible network monitoring
¤ QoS supports real-time traffic classification and priority setting
¤ LLDP can achieve automatic topology discovery, which is convenient for visual management
¤ DHCP server and DHCP client could be used for allocating IP address of different strategies
¤ DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
¤ DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
¤ File management is convenient for the device rapid configuration and online upgrading
¤ Log information and log server can record user operation, system failure, system security and other information locally and remotely
¤ User privilege classification configuration can set user privilege level
¤ ACL can enhance the flexibility and security of the network, supporting bidirectional ACL IN and OUT.
¤ SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security
¤ Ring, MRP, STP/RSTP/MSTP can achieve network redundancy, preventing network storm
¤ EPRS function can realize link backup and improve the reliability of network
¤ Relay alarm is convenient for troubleshooting of construction site
¤ Storm suppression can restrain broadcast, unknown multicast and unicast
¤ VLAN is used for simplifying network planning
¤ Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
¤ IGMP/MLD Snooping can be used for filtering multicast traffic to save the network bandwidth
¤ IGMP/MLD can be used to manage and maintain multicast members
¤ ARP could be used for MAC address resolution
¤ VRRP, RIP/RIPng, ISIS, OSPF/OSPFv3 and BGP can realize dynamic routing configuration
¤ PIM-DM and PIM-SM can be used to create and maintain multicast routing table entries and realize multicast routing forwarding
¤ NAT maps private IP address to the legal IP address of external network, which can slow the consumption of IP address space
¤ Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
¤ IPDT can track IP device status and realize interaction with other applications
¤ Smart Link link backup, providing reliable and efficient backup and fast switching mechanism
¤ Network diagnosis and troubleshooting could be conducted via Ping, Traceroute, cable diagnosis, SFP DDMI
¤ Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
Supports Modbus TCP monitoring, convenient for various integrated systems to monitor and manage device status
