1/2/4 Port RS-232/485/422 Secure Serial to Ethernet Converter

Overview of 3onedata's Secure Serial to Ethernet Converter NP5200 Series

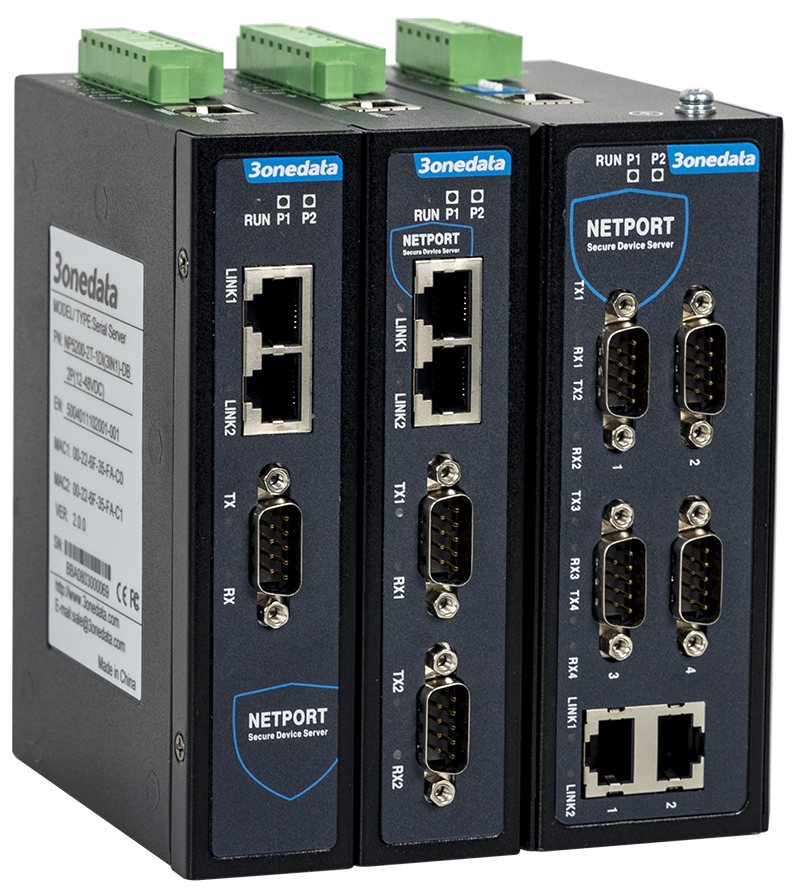

NP5200 series are the secure serial networking server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 1/2/4 RS-232/485/422 serial ports to 2 100M Ethernet copper ports. It adopts rack mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server work modes and TELNET, WEB and SSHD access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
This product supports DIP switch or RST button, which can achieve the device restore factory defaults. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can adapt to the industrial scene environment with harsh requirements for EMC. It can be widely used in custom checkpoint system, smart gas station, data center and industrial automation, etc.


Additional Features
Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backups
Support 110bps-115200bps (customizable 921600bps) line speed and non-blocking communication
Support RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes
Support cross-gateway and cross-router communication
Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
Support delimiter matching communication, achieving various demands for serial port packaging
Support FIFO, compatible with various old type terminal devices
Support IP address and MAC address filtering, which can achieve accurate access control easily
Support graded user management to implement humanized authority management
Support serial port status, parameters and communication statistical monitoring, making the communication status easy to read
Support RTS/CTS, DTR/DSR and XON/XOFF flow control
Support virtual serial port drive access mode and automatic connection recovery after network interruption
Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
Support standard TCP/IP SOCKET application access
TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
Support TELNET and Reverse TELNET modes, build TELNET protocol session to realize the conversion of serial port data and Ethernet data between terminal device and server
Support RFC2217 protocol, which can make serial port present in the host as local COM port
Support multiple configuration forms like Windows configuration tool, TELNET, SSHD and WEB
SSHD and HTTPS can guarantee the access security of data
Support multiple alarm methods, including e-mail alarm, log alarm and system alarm
Support multiple alarm events including power supply connection, warm start and cold start
Conduct network diagnosis and troubleshooting via Ping and Traceroute
Support ARP function, which can avoid the failure of communication due to the MAC address of serial server being aged by switch or router
Support static routing, routing table could be added manually

Ethernet	Standard: 10Base-T, 100Base-TX Protocol: TCP, UDP, ARP, HTTP, HTTPS, TELNET, ICMP, SMTP, SNTP, DHCP, DNS Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning Interface form: RJ45 Interface quantity: 2 Duplex mode: Full/Half Duplex Mode Self-adaption Work mode: each serial port can simultaneously establish up to 4 TCP/UDP session connections, support work modes such as RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP  Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server
Serial Port	Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 1/2/4/8 3IN1 serial ports RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 110bps-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface form: DB9 Flow control: RTS/CTS, DTR/DSR, XON/XOFF Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485/422 end supports 32 points polling (customizable 256 points) Transmission distance: RS-232, 15m; RS-485/422, 1200m Pull high/low resistor for RS-485: 4.7kΩ Electromagnetic isolation strength: 2kVDC
Console Port	CLI command line management port (RS-232), RJ45
Configuration Method	WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration
Security	User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control
Indicator	Power supply indicator, Ethernet port indicator, serial port indicator, running indicator
Power Supply	NP5200-2T-4DI(3IN1)-DB The power supply access terminal is 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins in the left) Input power supply: 12~48VDC, dual power supply redundancy NP5200-2T-2DI(3IN1)-DB、NP5200-2T-1DI(3IN1)-DB The power supply access terminal is 8-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins in the left) Input power supply: 12~48VDC, dual power supply redundancy
Power Consumption	Available Models No-load (@12VDC) Full-load (@12VDC) NP5200-2T-4DI(3IN1)-DB 1.68W 2.5W NP5200-2T-2DI(3IN1)-DB 1.8W 1.9W NP5200-2T-1DI(3IN1)-DB 1.4W 1.6W
Working Environment	Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation)
Physical Characteristic	Housing: IP40 protection, metal Installation: DIN-Rail mounting NP5200-2T-4DI(3IN1)-DB： Dimension (W x H x D): 53mm×138mm×110mm Weight: 591g NP5200-2T-2DI(3IN1)-DB： Dimension (W x H x D): 33mm×138mm×110mm Weight: 470g NP5200-2T-1DI(3IN1)-DB： Dimension (W x H x D): 33mm×138mm×110mm Weight: 461g
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ± 8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Signal: common mode ±2kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, FCC, RoHS
Warranty	3 years

Available Models	100M Copper Port	3IN1 (RS-232/485/422)	Power Supply
NP5200-2T-4DI(3IN1)-DB	2	4	12~48VDC dual power supply
NP5200-2T-2DI(3IN1)-DB	2	2
NP5200-2T-1DI(3IN1)-DB	2	1
