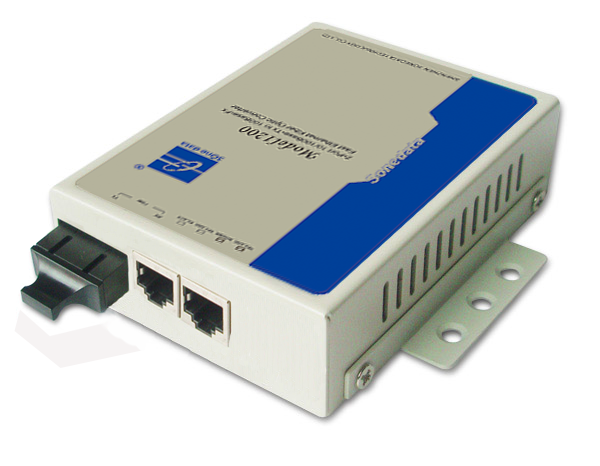

3 Port Industrial 100M Media Converters

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

Copper port

10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Fiber port

Standard: 100Base-FX

Connection mode: optional SC/ST/FC

Transmission distance:

l multimode: 2km

l single mode: 20/40/60/80/100/120km

Fiber optical cable:

l multimode: 50/125μm or 62.5/125μm;

l single mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm

Transmission wavelength:

l multimode: 1310nm

l single mode: 1310nm or 1550nm

Indicator

Power supply indicator, fiber port indicator, copper port indicator

Power supply

Support 3 power supply input schemes

l External 5VDC, DC round head

l Built-in 220VAC/DC, AC outlet with switch

l Built-in -48VDC 3-pin 5.08mm pitch terminal blocks

Power consumption

4W

Working environment

Operating temperature: -10~60℃

Storage temperature:-20~70℃

Relative humidity: 5%～95%(no condensation)

Physical Characteristic

Shell: metal shell

Installation: wall or DIN-Rail mounting

Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply)

115mm×30mm×173.2mm (built-in power supply)

Certification

CE, FCC, RoHS

Warranty

3 years
