10 Port Gigabit Layer 2 Managed TSN Industrial Ethernet Switch

Support 8 Gigabit copper ports and 2 Gigabit SFP slots
Support Precision Time Protocol (PTP), provide sub-microsecond synchronization accuracy to meet requirements for high-precision time synchronization
Support TSN (time sensitive networking) protocol standards such as IEEE802.1Qbv, IEEE802.1Qav and IEEE802.1AS, which can provide deterministic transmission with low delay and high reliability for data
Adopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
Support dual power supply, input voltage: 9~60VDC
Support -40~75℃ wide operating temperature range

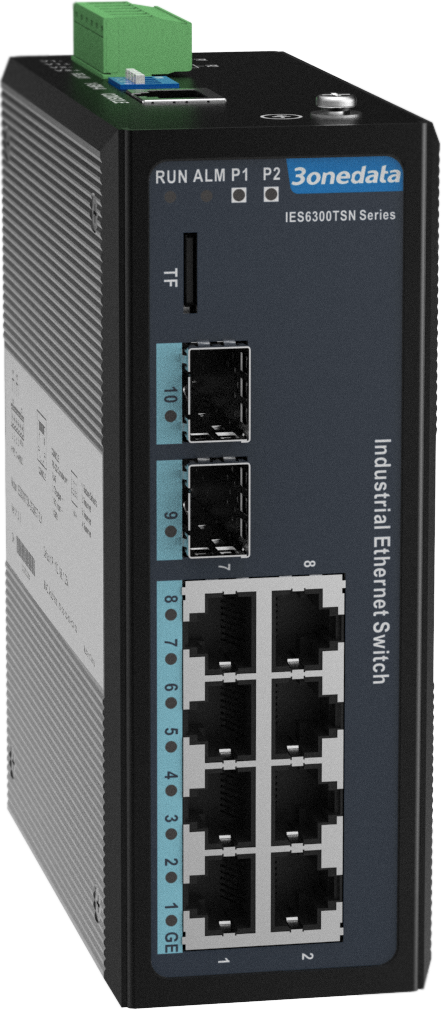

Overview of 3onedata's 10 Port Gigabit Layer 2 Managed TSN Industrial Ethernet Switch IES6300TSN-8GT2GS-2LV

IES6300TSN-8GT2GS-2LV is 10-port Gigabit layer 2 managed industrial Ethernet switch. This product provides Gigabit copper ports and Gigabit SFP slots, and it adopts DIN-Rail mounting which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as PTP, TSN, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS, IGMP Snooping, LLDP, DHCP Server, DHCP-Snooping, Port Trunking, Port Mirroring. It also possesses complete management functions, including Port Configuration, Port Isolation, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SSH, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The design of DIP switch could implement device factory setting recovery. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply, port or other configurable event has failure or alarm, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Additional Features

SNMPv1/v2c/v3 is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
Support static manual configuration and dynamically DHCP assignment  IP address
NTP server and NTP client can provide time synchronization with millisecond precision
QoS supports multiple modes based on CoS and DSCP, and supports traffic policies of SP and WRR
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server can be used for distributing IP address with different strategies
DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
File management is convenient for the device rapid configuration and online upgrading
Log information records startup, operation, connection and alarm information, which can be uploaded to the remote Syslog server
Port ingress rate limit, which can divide CoS priority and reasonably control data bandwidth according to bandwidth, protocol, storm or custom data protocol type
Port statistics can be used for port real-time traffic statistics, displaying real-time network utilization in graph and detecting network performance
User password can conduct user hierarchical management to improve the device management security
Support port, temperature, voltage, network load, packet loss, error and other alarm events, SNMP Trap, relay, e-mail and other alarm modes, which is convenient for discovering faults in time during remote management.
Access Control can enhance network flexibility and security
Relay alarm is convenient for troubleshooting of construction site
SSH configuration could encrypt transmitted data, prevent DNS and IP spoofing
VLAN is used for simplifying network planning
Port isolation could achieve port isolation in the same VLAN and save VLAN resources
Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth
With high reliability and stability, ERPS could avoid broadcast storm caused by data loopback
Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
Ping, Traceroute, Cable Test and SFP Digital Diagnosis could achieve network diagnosis and troubleshooting
