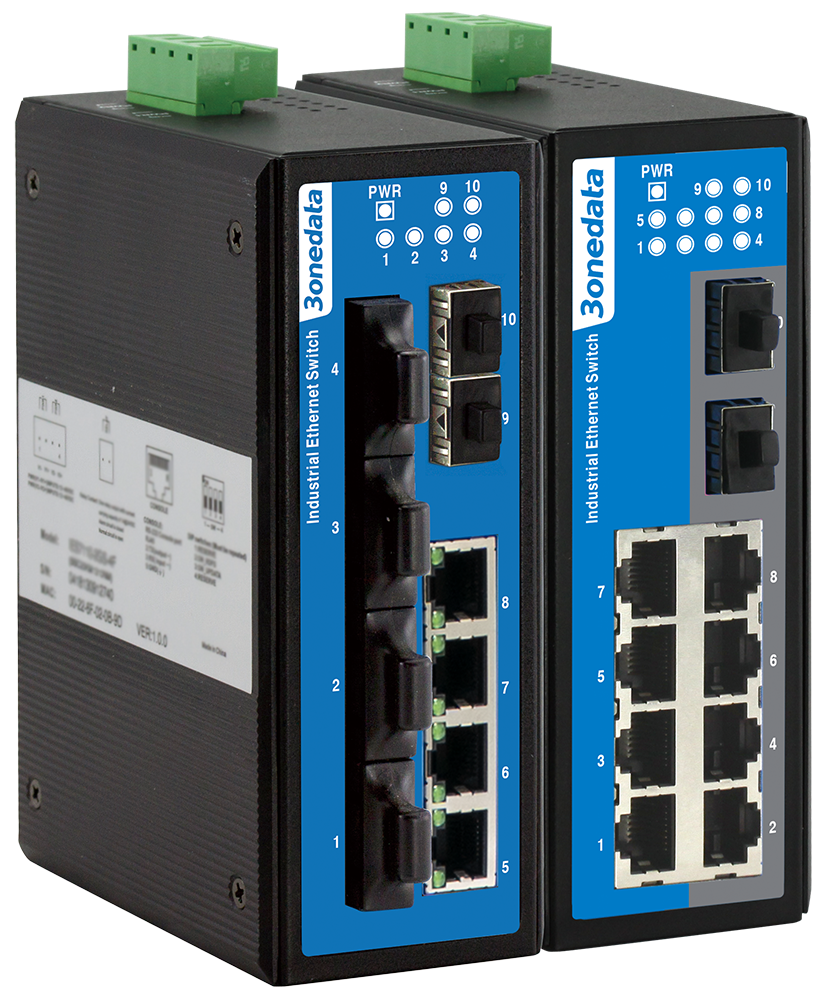

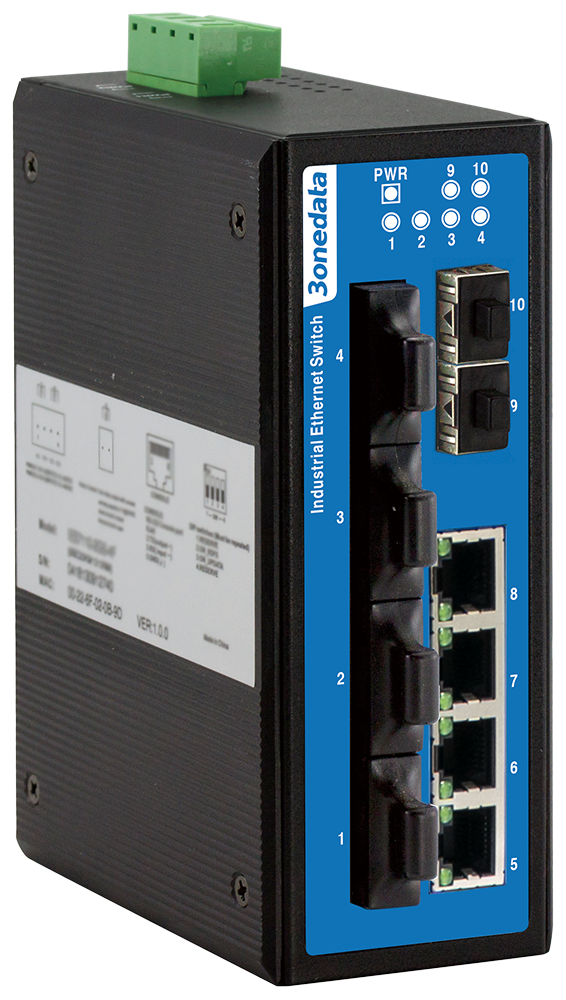

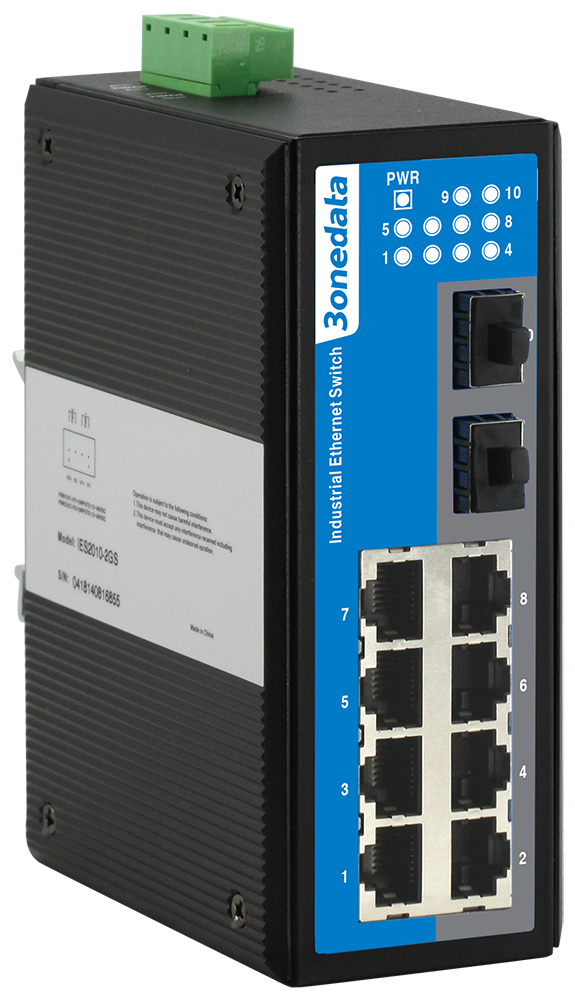

IES2010 Series

10 Port Gigabit Unmanaged Industrial Ethernet Switch

● Two Gigabit fiber ports(SFP), four 100M copper ports plus four 100M fiber or copper ports optional
● Support dual power supply, input voltage: 12~48VDC
● Support -40~75℃ wide operating temperature range


Overview of 3onedata's 10 Port Unmanaged Switch IES2010 Series

IES2010 series are 10-port 100M/Gigabit unmanaged industrial Ethernet switches. The series include two types of products and offer multiple ports, such as 100M fiber ports and copper ports as well as Gigabit SFP slots. They also adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different application scenes.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
