Overview of 3onedata's 12 Port Gigabit Unmanaged Industrial Ethernet Switch IES2312-8GT2GS2HS-2P48

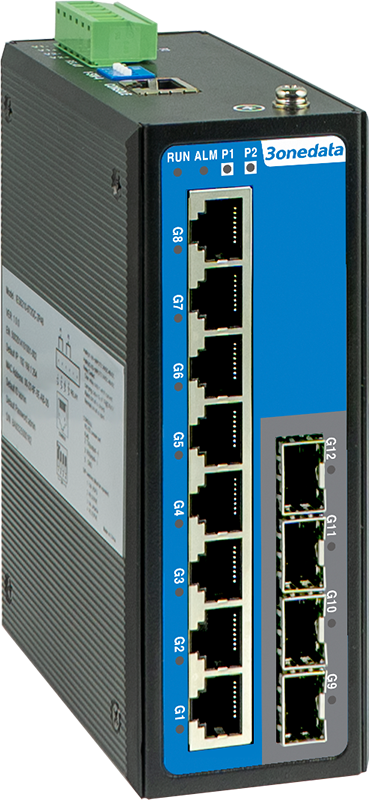

IES2312-8GT2GS2HS-2P48 is12-port Gigabit unmanaged industrial Ethernet switch. This product provides multiple interfaces including Gigabit copper ports, Gigabit SFP slots and 2.5G SFP slots. It adopts DIN-Rail mounting or wall mounting to meet the requirements of different application scenes.
The design of DIP switch can achieve Storm Suppression, Jumbo Frame, Relay Alarm and IEEE802.3az Energy Efficient Ethernet. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When DC power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3az for EEE IEEE 802.3x for Flow Control |
| Interface | Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Gigabit SFP Slot: 100/1000Base-X self-adaption, SFP slot 2.5G SFP Slot: 100/1000/2.5GBase-X self-adaption, SFP slot Console port: reserved Alarm port: 6-pin 5.08mm pitch terminal blocks, including 2-pin alarm terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC |
| Indicator | Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator |
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 4Mbit Backplane bandwidth: 30G Switch time delay: <10μs |
| Power Supply | Voltage range: 12~48VDC. Connection method: 6- Pin 5.08mm pitch terminal blocks (includes 4-pin power supply) Power supply quantity: dual power supply redundancy backup Connection protection: non-polarity Overcurrent protection: 3A |
| Power Consumption | No-load: 5.76W@48VDC Full-load: 12W@48VDC |
| Working Environment | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 53mm×138mm×110mm |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | Gigabit Copper Port | Gigabit SFP Slot | 2.5G SFP Slot | Power Supply |
| IES2312-8GT2GS2HS-2P48 | 8 | 2 | 2 | 12~48VDC redundant power supply |
