Standard & Protocol | IEEE 802.3 for 10Base-TX IEEE 802.3u for 100Base-TX and 100Base-FX | |||||||||||||||||||||||||||
Interface | Copper port: 10/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX | |||||||||||||||||||||||||||
LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator | |||||||||||||||||||||||||||
Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 3M Backplane bandwidth: 12.8G Switch time delay: < 10μs | |||||||||||||||||||||||||||
Power Requirement | 100-240VAC/DC | |||||||||||||||||||||||||||
Power Consumption |
| |||||||||||||||||||||||||||
Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~75℃ Relative humidity: 5%~95%(no condensation) | |||||||||||||||||||||||||||
Physical Characteristic | Housing: IP30 protection, metal Installation: 19 inches rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm | |||||||||||||||||||||||||||
Industrial Standard | IEC61000-4-2 (ESD),Level 4 Air discharge: 15kV Contact discharge: 8kV IEC61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV IEC61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |||||||||||||||||||||||||||
Certification | CE, FCC, RoHS | |||||||||||||||||||||||||||
Warranty | 5 years |

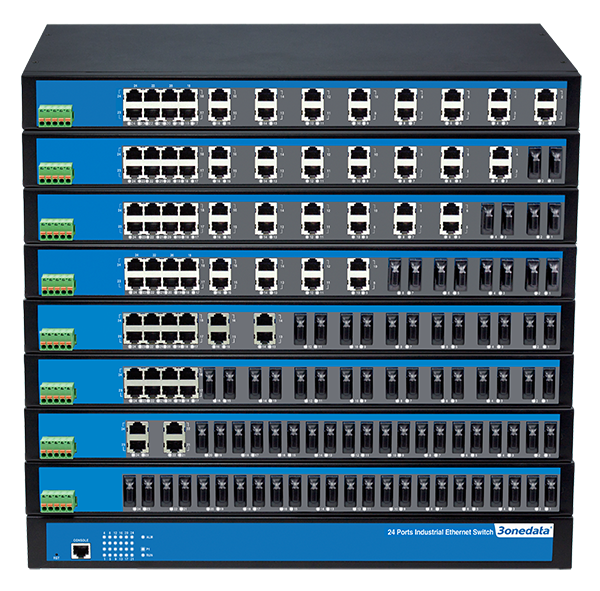

Available Models | 100M Fiber Port | 100M Copper Port | Power Supply Range |

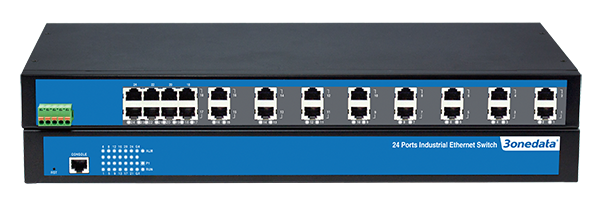

IES1024 | - | 24 | 100~240VAC/DC |
IES1024-2F | 2 | 22 | |
IES1024-4F | 4 | 20 | |
IES1024-8F | 8 | 16 | |

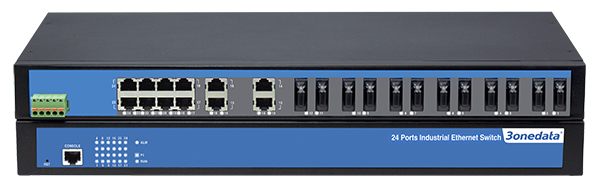

IES1024-12F | 12 | 12 | |
IES1024-16F | 16 | 8 | |
IES1024-20F | 20 | 4 | |

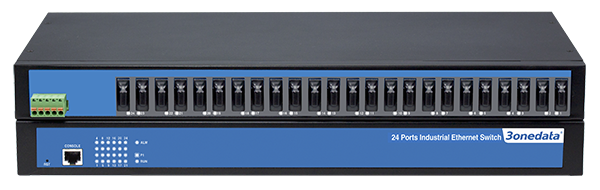

IES1024-24F | 24 | - |
