Introduction

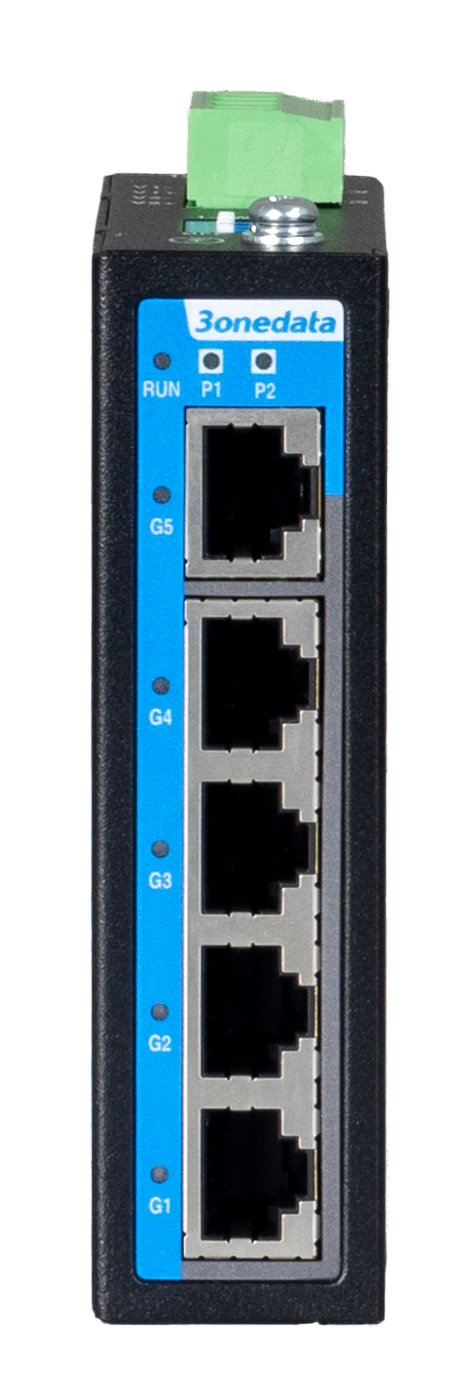

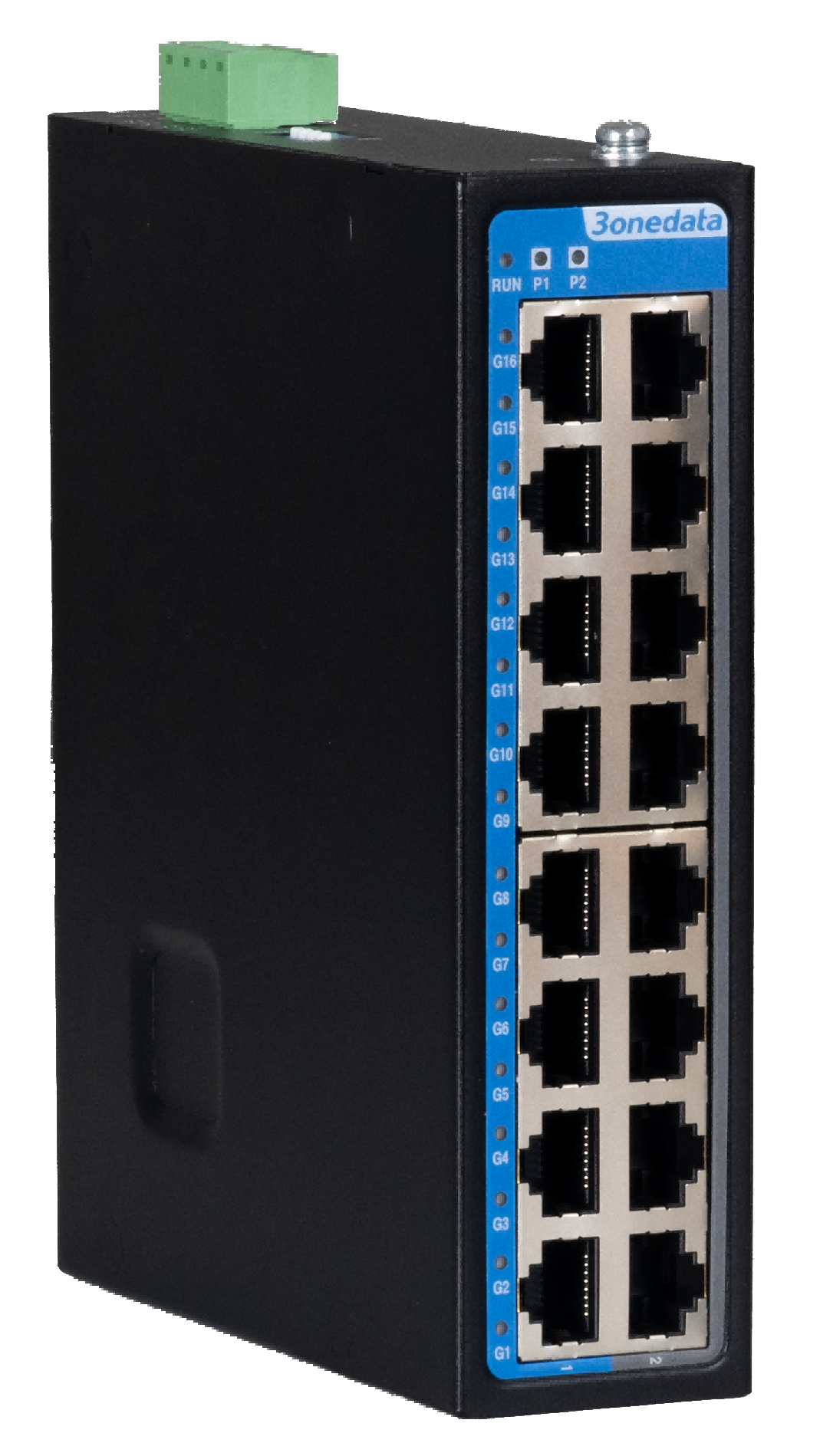

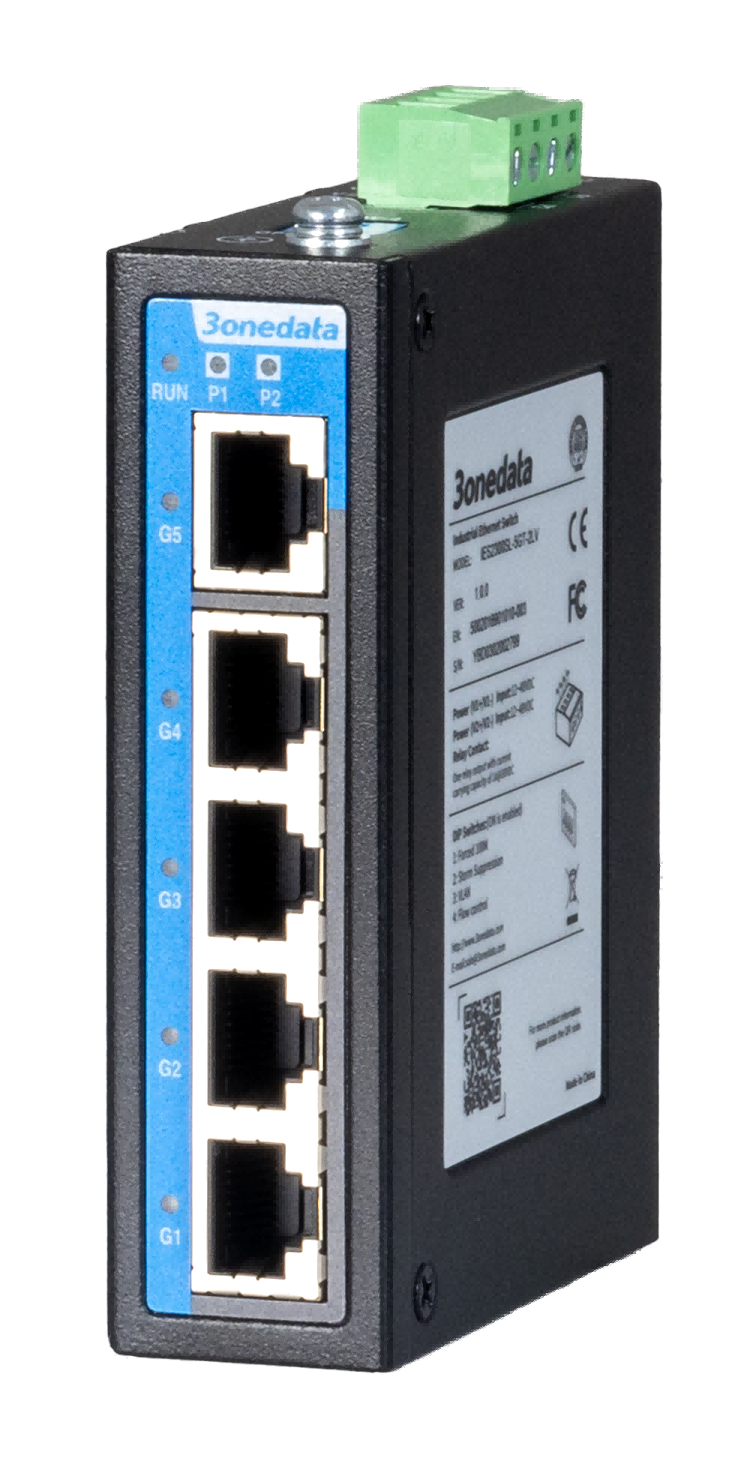

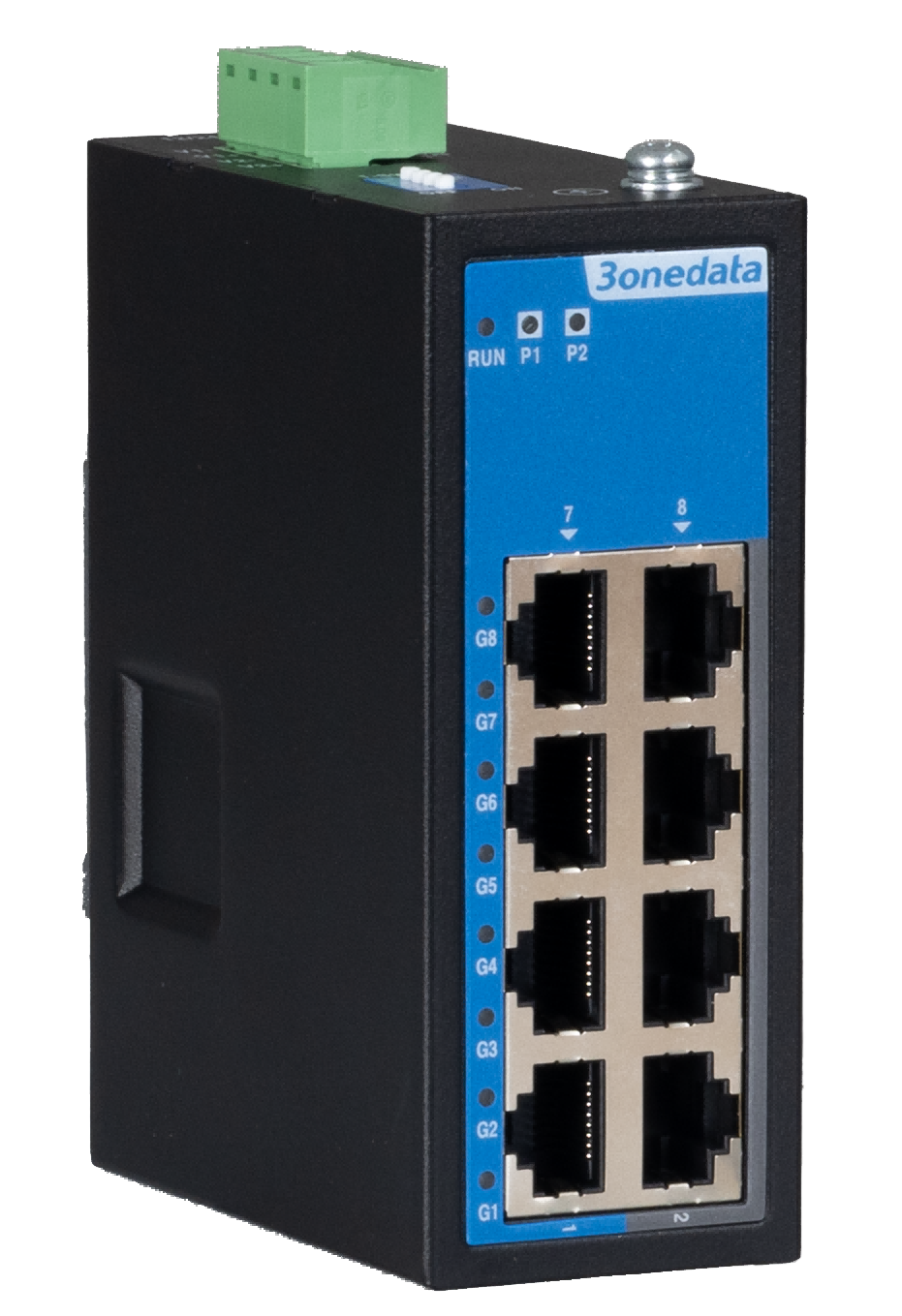

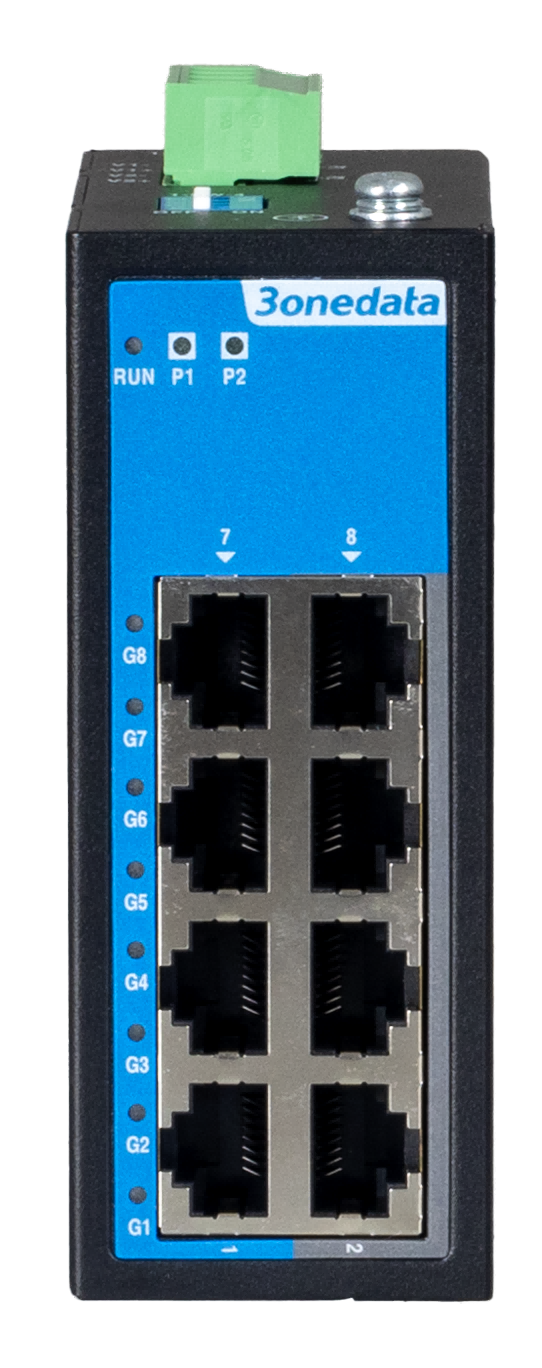

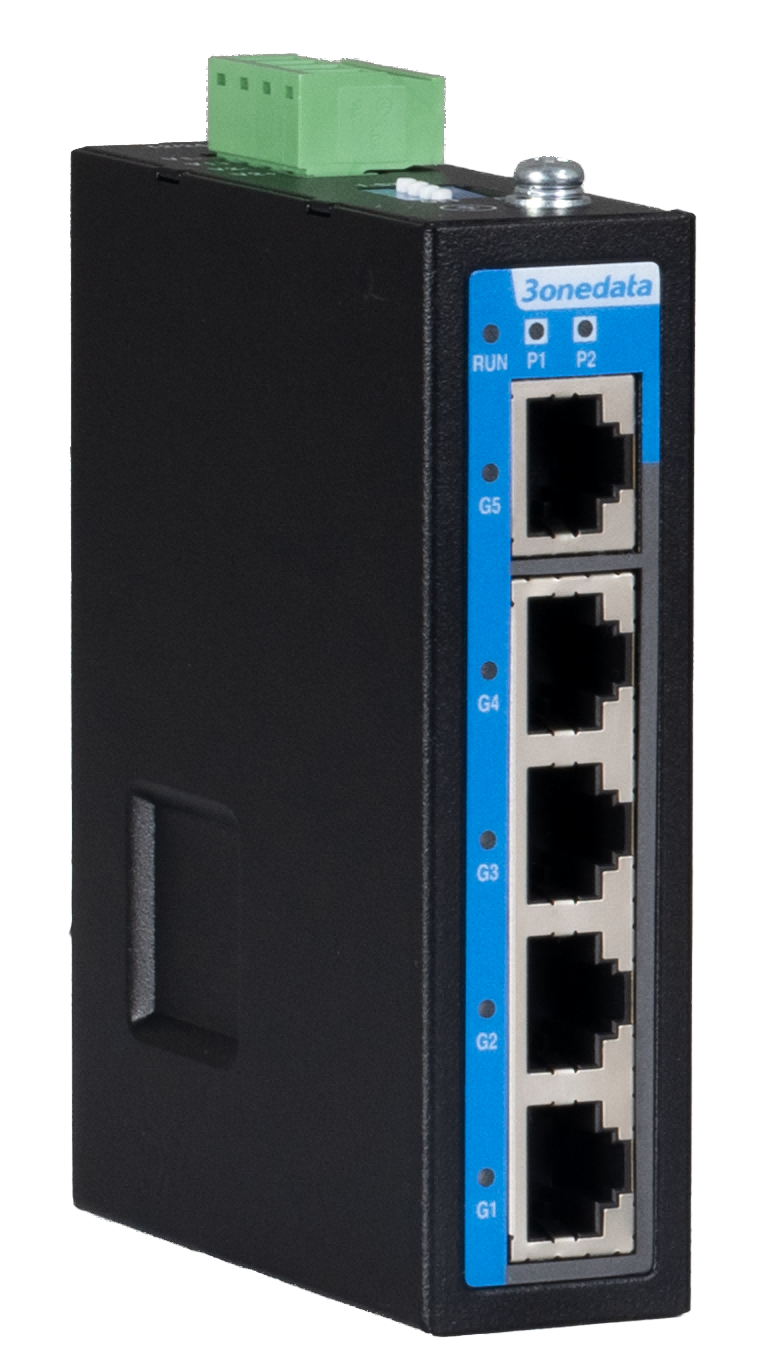

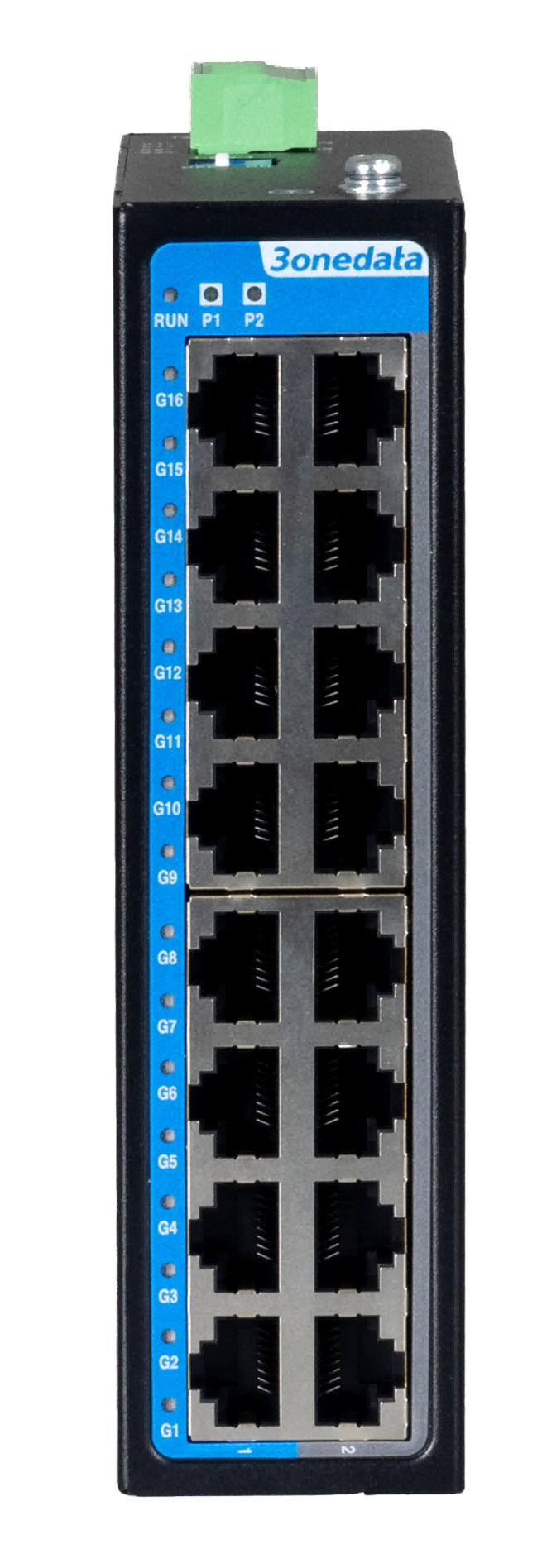

IES2300SL Fiber-Port series is a 6/10/18-port Gigabit layer 2 unmanaged industrial Ethernet switch with optional PoE. PoE power supply conforms to IEEE802.3af/at protocol standard. This series supports Gigabit SFP slot, Gigabit copper port and Gigabit PoE copper port. They adopt DIN-Rail or wall mounting to meet the requirements of different application scenes.

The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can achieve device reboot. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, safety city, intelligent manufacturing and other industrial fields.

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.3af for PoE IEEE 802.3at for PoE+
PoE (optional)	The maximum power of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface	Gigabit Copper Port: 10/100/1000Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE Gigabit SFP: 1000Base-X SFP slot
Indicator	Running Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator (PoE device)
Switch Property	IES2300SL-4GT2GS-2LV l Transmission mode: store and forward l MAC address: 2K l Backplane bandwidth: 16Gbps l Switch time delay: <10μs   IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV l Transmission mode: store and forward l MAC address: 4K l Cache: 2.5Mbit l Backplane bandwidth: 20Gbps l Switch time delay: <10μs   IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV l Transmission mode: store and forward l MAC address: 8K l Cache: 4.1Mbit l Backplane bandwidth: 52Gbps l Switch time delay: <10μs
Power Supply	IES2300SL-4GT2GS-2LV, IES2300SL-8GT2GS-2LV, IES2300SL-16GT2GS-2LV l Power supply input: 12~60VDC, dual power supply redundancy l Connection mode: adopt 4-pin 5.08mm pitch terminal blocks l Connection protection: support anti-reverse connection   IES2300SL-8GP2GS-2LV, IES2300SL-16GP2GS-2LV l Power supply input: 44~57VDC, dual power supply redundancy l Connection mode: adopt 4-pin 5.08mm pitch terminal blocks l Connection protection: support anti-reverse connection
Power Consumption	IES2300SL-4GT2GS-2LV l No-load: 0.8W@48VDC l Full-load: 3.6W@48VDC   IES2300SL-8GP2GS-2LV l No-load: 2.43W@48VDC l Full-load (PoE): 229.4W@48VDC   IES2300SL-16GP2GS-2LV l No-load: 5.32W@48VDC l Full-load (without PoE): 12.96W@48VDC l Full-load (with PoE): 238W@48VDC
Working Environment	Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%~95% (no condensation)
Mechanical Structure	IES2300SL-4GT2GS-2LV l Housing: IP40 protection, metal l Installation: DIN-Rail or wall mounting l Dimension (W x H x D): 35mm×150mm×120mm l Weight: 562g   IES2300SL-8GT2GS-2LV l Housing: IP40 protection, metal l Installation: DIN-Rail or wall mounting l Dimension (W x H x D): 40.6mm×150mm×120mm   IES2300SL-8GP2GS-2LV l Housing: IP40 protection, metal l Installation: DIN-Rail or wall mounting l Dimension (W x H x D): 40.6mm×150mm×120mm l Weight: 639g   IES2300SL-16GT2GS-2LV l Housing: IP40 protection, metal l Installation: DIN-Rail or wall mounting l Dimension (W x H x D): 65mm×150mm×120mm   IES2300SL-16GP2GS-2LV l Housing: IP30 protection, metal l Installation: DIN-Rail or wall mounting l Dimension (W x H x D): 65mm×150mm×120mm l Weight: 947g
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge: ±8kV l Contact discharge: ±6kV   IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Power supply: ±2kV l Ethernet port: ±1kV   IES2300SL-4GT2GS-2LV l IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode ±2kV, differential mode ±1kV l Ethernet port: common mode ±2kV, differential mode ±1kV   IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV, IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV l IEC 61000-4-5 (Surge), Level 4+ l Power supply: common mode ±6kV, differential mode ±2kV l Ethernet port: common mode ±6kV, differential mode ±2kV   Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, FCC, RoHS
Warranty	5 years
