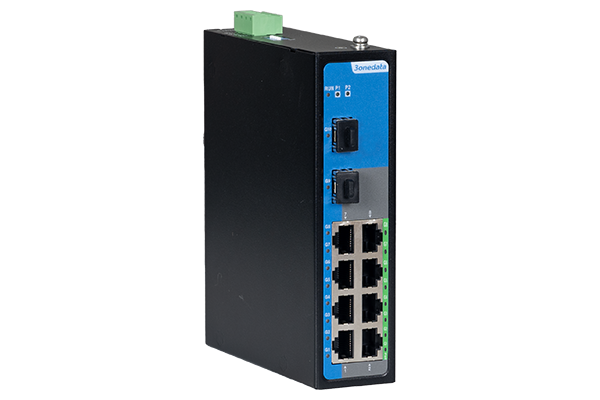

10-port Gigabit Layer 2 Unmanaged Industrial Ethernet Switch

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.3af for PoE

IEEE 802.3at for PoE+

PoE

The maximum power of PoE port: 30W

The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6

Interface

Gigabit PoE Copper Port: 10/100/1000Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Gigabit SFP: 1000 Base-X SFP slot

Indicator

Running Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator

Switch Property

Transmission mode: store and forward

MAC address: 4K

Cache: 2.5Mbit

Backplane bandwidth: 20Gbps

Switch time delay: <10μs

Power Supply

Power supply input: 44~57VDC, dual power supply redundancy

Connection mode: adopt 4-pin 5.08mm pitch terminal blocks

Connection protection: support anti-reverse connection

Power Consumption

No-load: 2.43W@48VDC

Full-load (with PoE): 229.4W@48VDC

Working Environment

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%~95% (no condensation)

Mechanical Structure

Housing: IP40 protection, metal

Installation: DIN-Rail or wall mounting

Dimension (W x H x D): 40.6mm×150mm×120mm

Weight: 639g

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4

l Air discharge: ±15kV

l Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4

l Power supply: ±4kV

l Ethernet port: ±2kV

l IEC 61000-4-5 (Surge), Level 4+

l Power supply: common mode ±4kV, differential mode ±2kV

l Ethernet port: common mode ±6kV, differential mode ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-31

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS

Warranty

5 years
