Introduction

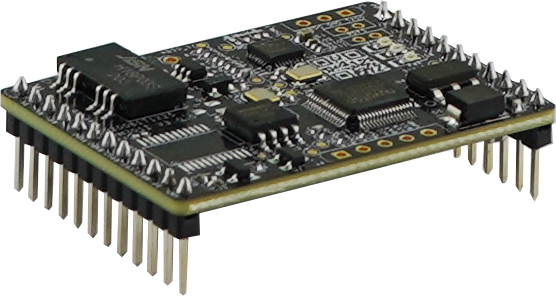

NPM301Z is a high-performance embedded serial port-to-Ethernet module, which supports one RS-232, RS-422 or RS-485 to one 100M Ethernet port. This module has embedded network transformer, which can realize 10Base-T/100Base- TX self-adaptive Ethernet interface just by adding an RJ45 port. The transmission rate of serial port is 300-115200bps. Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.All settings of NPM301 are realized through serial port or network, which can be used as communication processor between serial device and PC, or remote communication between multiple serial devices. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system. Additional Features
u Adopt 32 bit ARM processor
u Support 10/100Base-T(X) self-adaptive Ethernet interface
u Support AUTO MDI/MDIX and can be connected using either cross-wire or through wire
u Support 300bps-115200bps line speed and non-blocking communication
u Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
u Support cross-gateway and cross-router communication
u Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
u Support delimiter matching communication, achieving various demands for serial port packaging
u Support FIFO, compatible with various old type terminal devices
u Support IP address and MAC address filtering, which can achieve accurate access control easily
u Support graded user management to implement humanized authority management
u Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance
u Support RTS/CTS, DTR/DSR and XON/XOFF flow control
u Compatible with various virtual serial port management software
u Support virtual serial port drive access mode and automatic connection recovery after network interruption
u Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
u Support standard TCP/IP SOCKET application access
u TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
u UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
u Support multiple configuration forms like Windows configuration tool, serial port and WEB
