DIN-Rail or Wall Mounting Industrial Indoor Dual Band WiFi6 Wireless AP

uSupport two 2.4G/5G antenna interfaces, 4 Gigabit RJ45 ports (LAN) and 1 Gigabit PoE RJ45 port (LAN/WAN)

uSupport WiFi6 (802.11ax), which can improve system capacity and concurrent access, and reduce transmission delay.

uSupport multiple network modes such as routing, AP, bridge and client mode.

uSupport IEEE802.3at/af PoE power supply input and 12~48VDC power supply input

uSupport -40~75 wide operating temperature range

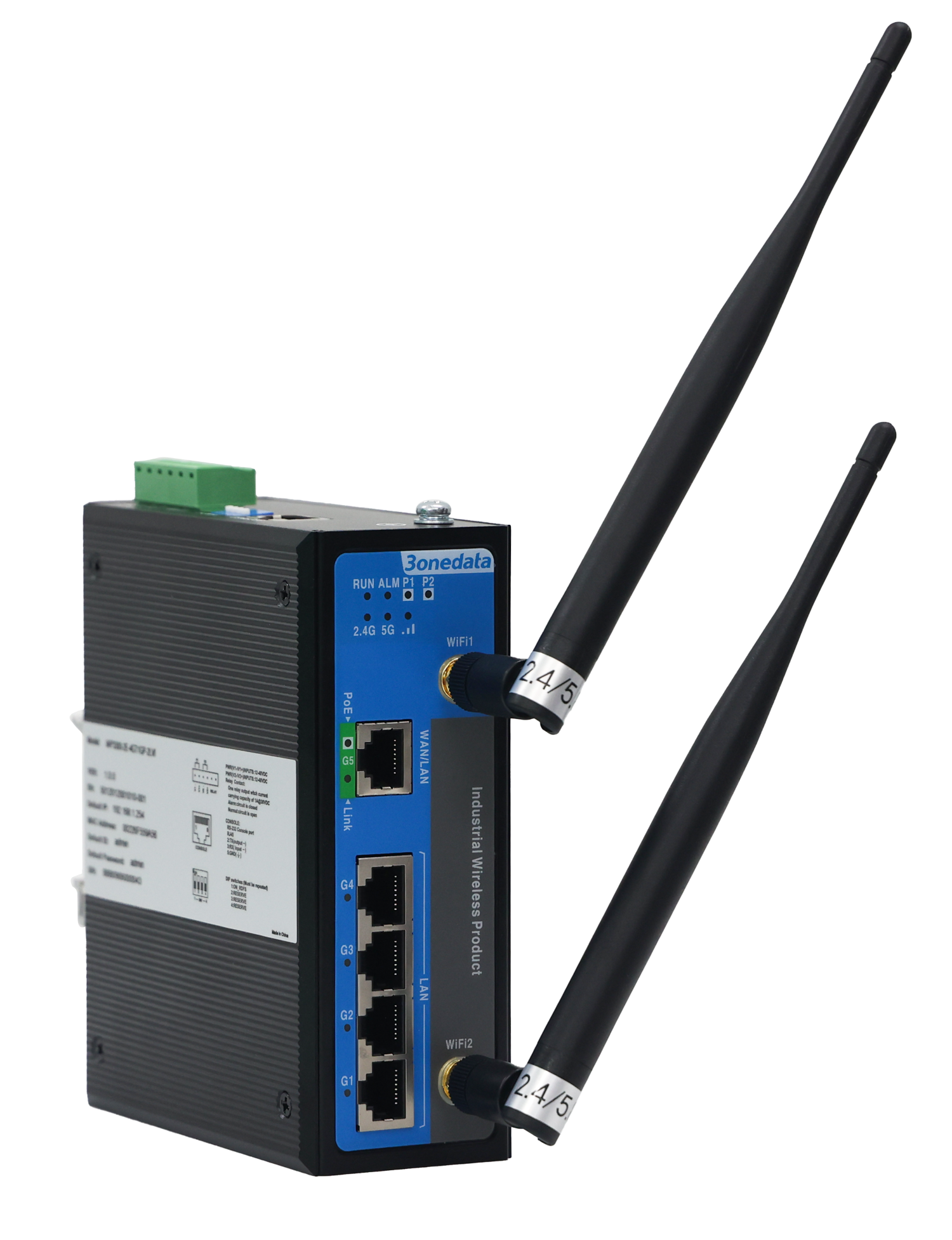

IAP3300-2E-4GT1GP-2LVI is 5-port full Gigabit industrial indoor dual band WiFi6 Wireless AP, the PoE power supply conforms to IEEE802.3af/at protocol standard. This product provides 2.4G/5G combined antenna interface, Gigabit RJ45 port (LAN) and Gigabit PoE RJ45 port (LAN/WAN) and other interfaces, and supports DIN-rail or wall mounting, which can meet the needs of different application sites.

The management system supports route, AP, bridge, client and other work modes; Support IEEE802.11a/b/g/n/ac/ax wireless technology, the wireless rate of the whole device is up to 1774.5Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, port forwarding, port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.

DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. All components are industrial grade with protection grade of IP40. It can be widely used in the scenes such as AGV cars, industrial robots, intelligent warehousing in factory automation, petrochemical industry, power monitoring and so on.



Features and Benefits


u Support routing mode, AP mode, bridge mode, client mode, support connection methods like WDS and universal bridge

u The client mode supports wireless NAT connection, and the wireless network can connect with the external network through PPPoE, static IP and DHCP dynamic acquisition, and implement route switch

u Support high-speed wireless connection, the transmission speed of 2.4GHz can reach up to 573.5Mbps, the transmission speed of 5GHz can reach up to 1201Mbps

u Support 2 2.4G/5G WiFi antenna interfaces

u Support wireless probe, it can realize personal positioning function with location engine

u Support SNMP network management and Trap alarm

u Support multiple SSID settings and provide SSID hiding function

u Support WPA/WPA2/WPA3 wireless encryption method of both personal edition and enterprise edition and TKIP/AES encryption algorithm

u AC management can specify AC device information to realize directional management

u Roaming proxy can realize roaming proxy host across network segments, effectively avoiding the data interruption caused by the failure to update the forwarding list of upper-level device in time

u Support IP filtering, MAC filtering, URL filtering, port forwarding, port redirection, ARP binding, DMZ isolation area and other firewall functions

u Support wireless user management and user event, and support blacklist and whitelist filtering rules, wireless user online/offline notification

u WWM can achieve better transmission quality of voice, video and other applications in wireless networks

u Network detection can realize network diagnosis and specific network recovery operations
