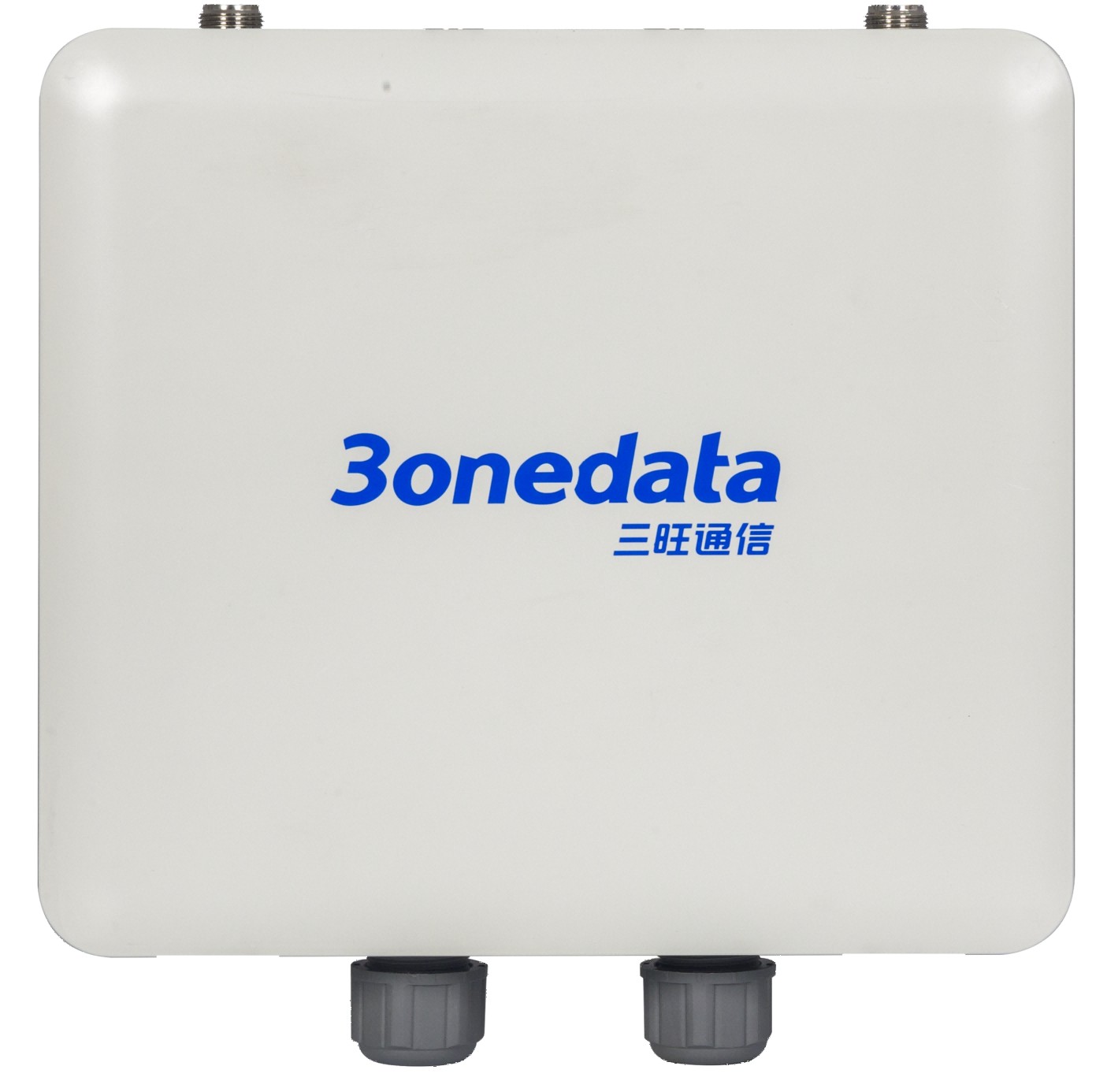

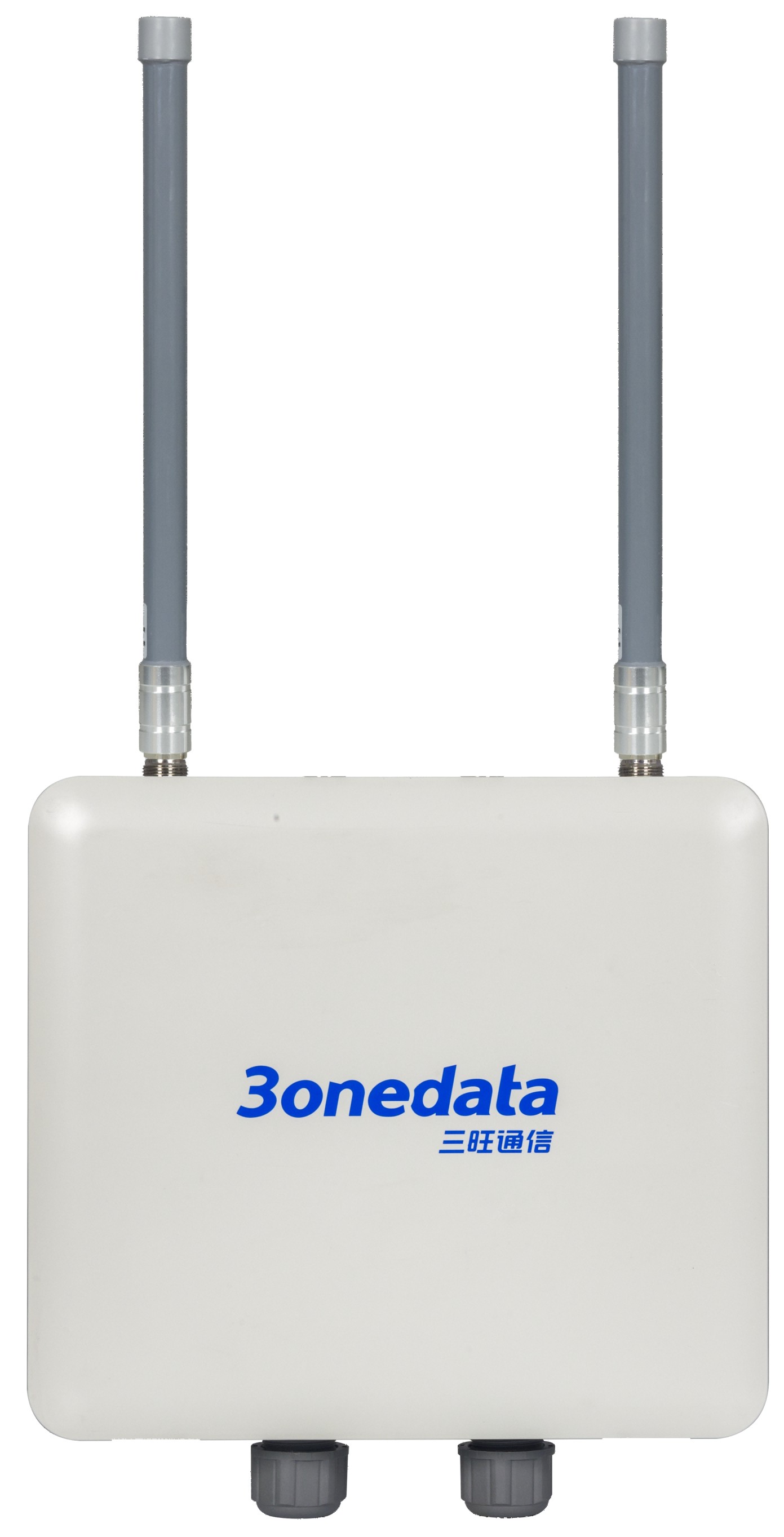

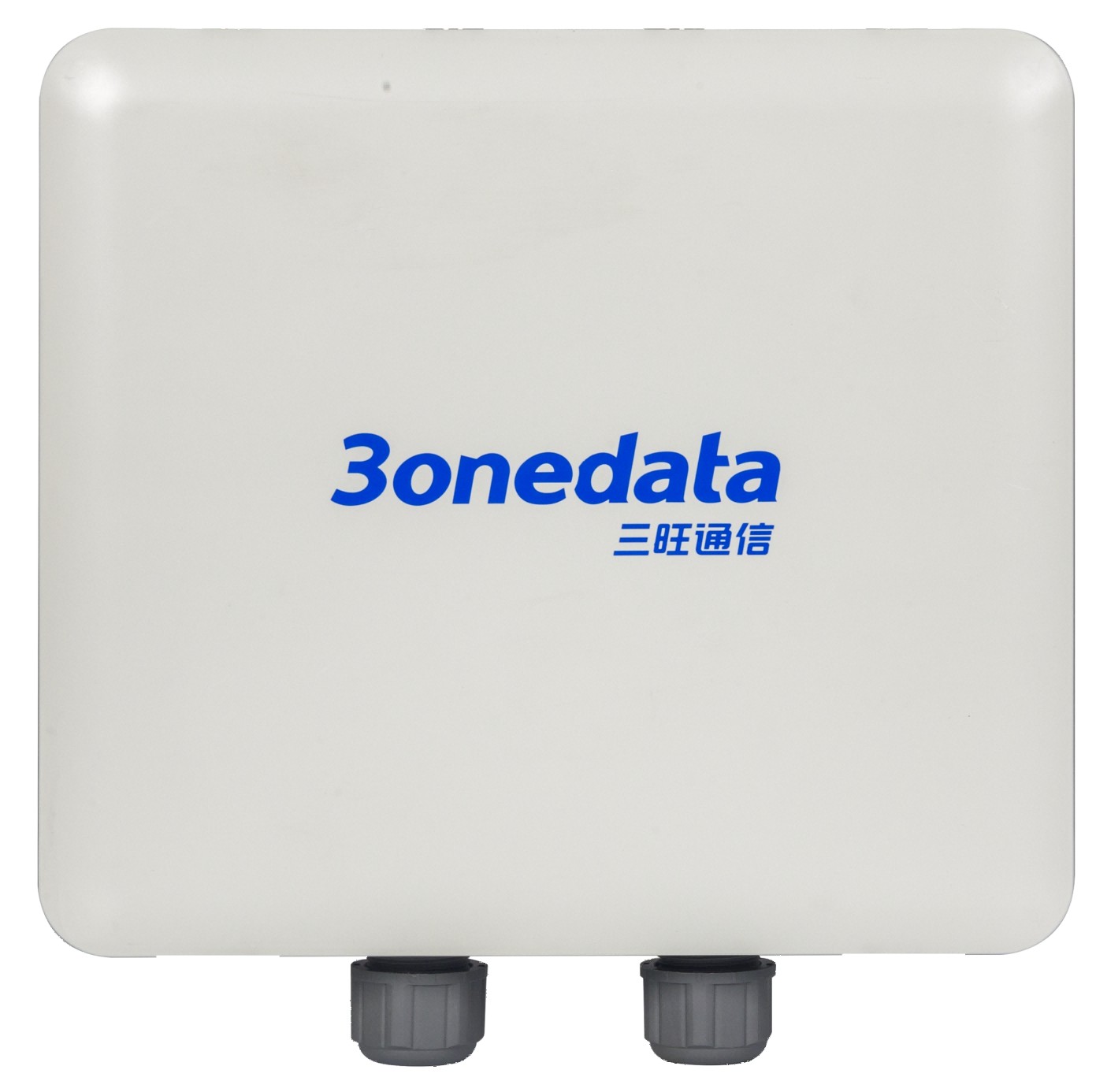

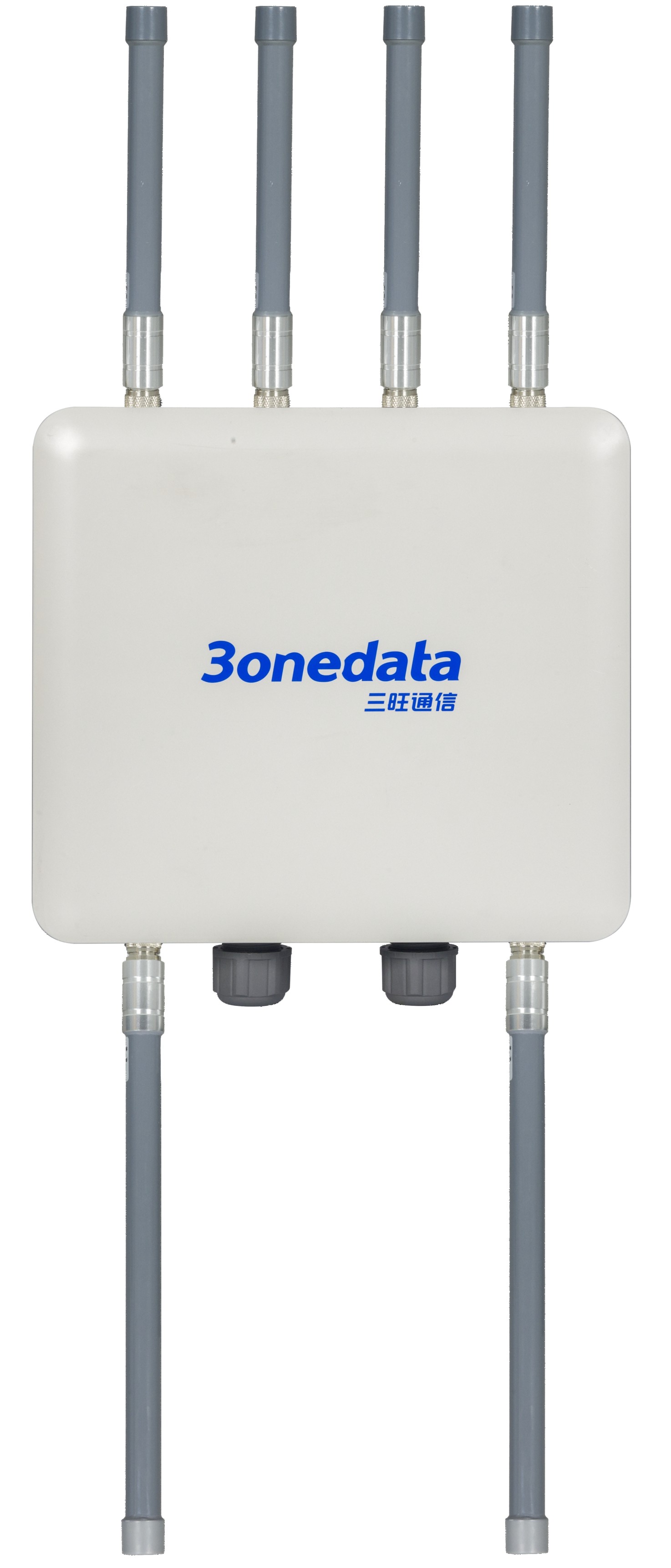

Wall Mounting or Pole Mounting Industrial Outdoor Dual-band Wi-Fi6 Wireless AP

uSupport two 2.4G antenna interfaces, two 5G antenna interfaces, 1 Gigabit RJ45 port (LAN) and 1 Gigabit PoE RJ45 port (LAN/WAN)

uSupport Wi-Fi6 (802.11ax), which can improve system capacity and concurrent access, and reduce transmission delay.

uSupport multiple network modes such as routing, AP, bridge and client mode.

uSupport IEEE802.3at/af PoE power supply input and 12~48VDC power supply input

uSupport -40~75 wide operating temperature range



IAP3600S-2225-2GT-PDP12_48 is 2-port Gigabit industrial outdoor dual-band Wi-Fi6 wireless AP, the PoE power supply conforms to IEEE802.3af/at protocol standard. This product provides 2.4G antenna interface, 5G antenna interface, Gigabit RJ45 port (LAN) and Gigabit PoE RJ45 port (LAN/WAN) and other interfaces, and supports wall mounting or pole mounting, which can meet the needs of different application sites.

The network management system supports multiple work modes: routing, AP, bridge and client. Support IEEE802.11a/b/g/n/ac/ax wireless technology, the wireless transmission rate of the whole device is up to 1774.5Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC filtering, Port forwarding, Port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.

RESET button can reboot the device and restore factory defaults. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. All components are industrial grade, and the protection grade is IP68, which can adapt to the harsh outdoor environment. It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.

Features and Benefits

u Support routing mode, AP mode, bridge mode, client mode, support connection methods like WDS and universal bridge

u The client mode supports wireless NAT connection, and the wireless network can connect with the external network through PPPoE, static IP and DHCP dynamic acquisition, and implement route switch

u Support high-speed wireless connection, the transmission speed of 2.4GHz can reach up to 573.5Mbps, the transmission speed of 5GHz can reach up to 1201Mbps

u Support 2×2MIMO, two 5G RF antenna interfaces and two 2.4G RF antenna interfaces

u Support wireless probe, it can realize personal positioning function with location engine

u Support SNMP network management and Trap alarm

u Support multiple SSID settings and provide SSID hiding function

u Support WPA/WPA2/WPA3 wireless encryption method of both personal edition and enterprise edition and TKIP/AES encryption algorithm

u AC management can specify AC device information to realize directional management

u Roaming proxy can realize roaming proxy host across network segments, effectively avoiding the data interruption caused by the failure to update the forwarding list of upper-level device in time

u Supports IP filtering, MAC filtering, port forwarding, ARP binding, DMZ isolation area and other firewall functions

u Support wireless user management and user event, and support blacklist and whitelist filtering rules, wireless user online/offline notification

u WMM can achieve better transmission quality of voice, video and other applications in wireless networks

Network detection can realize wireless network diagnosis and specific network
