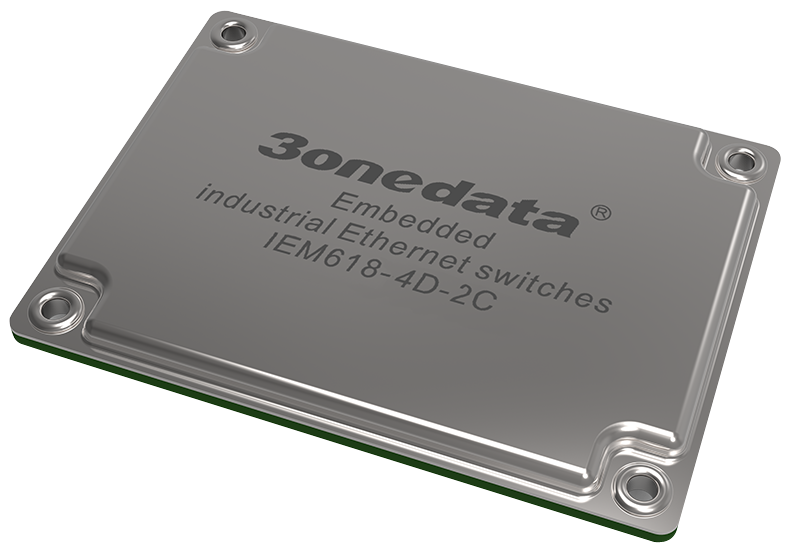

IEM618-4D-2C

Embedded Mounting 8-port 100M Layer 2 Managed Industrial Ethernet Switch Module with 4 Serial Ports and 2 CAN Ports

uSupport 8 100M fiber/copper ports, 4 serial ports and 2 CAN ports

uAdopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms

uInput voltage: 3.3VDC

uSupport -4085 wide operating temperature range

GET A QUOTE
Overview
Specifications
Models
Resources

Introduction

IEM618-4D-2C is 8-port 100M layer 2 managed embedded industrial Ethernet switch module with 4 serial ports and 2 CAN ports featuring high integration level, small size, rich functions, easy and convenient usage. This series have 3 types of products. It provides 4 serial ports, 2 CAN ports, and 8 100M ports which could be configured to fiber port or copper port as needed. It also adopts embedded mounting that user can custom the specification of PCB motherboard and freely choose Ethernet interface type through module pin to meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, LLDP, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. It has integrated functions of serial port server and CAN server. Each serial port and CAN port support 4 TCP or UDP session connections and multiple operating modes including TCP Server, TCP Client and UDP, etc. CLI, WEB, Telnet, SNMP and other access methods are also supported. The network management system can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.


Additional Features

u SNMPv1/v2c is used for network management of various levels

u Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

u QoS supports real-time traffic classification and priority setting

u LLDP can achieve automatic topology discovery, which is convenient for visual management

u File management is convenient for rapid configuration and online upgrade of the device

u Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status

u Port statistics can be used for the port real time traffic statistics

u User password can conduct user hierarchical management to improve the device administrative security

u Relay alarm is convenient for troubleshooting of construction site

u VLAN can simplify the network planning

u Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization

u IGMP-Snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth

u SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm

u Supports multiple serial port operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP

u Supports multiple CAN port operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
