RIO1000 Series

DIN-Rail Mounting Industrial I/O Server with 2 Ethernet Interfaces

uSupport 2 10/100Base-T(X) self-adaptive Ethernet interfaces

uSupport Modbus TCP protocol and can manage DI channel, DO channel and device system information through Modbus TCP Master

uSupport customized Modbus TCP slave register address to facilitate the upgrading of industrial field system

uSupport working modes such as DI, Counter, DO and Pulse Output

uSupport network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments

uSupport 12~48VDC power supply input

uSupport -40~75 wide operating temperature range

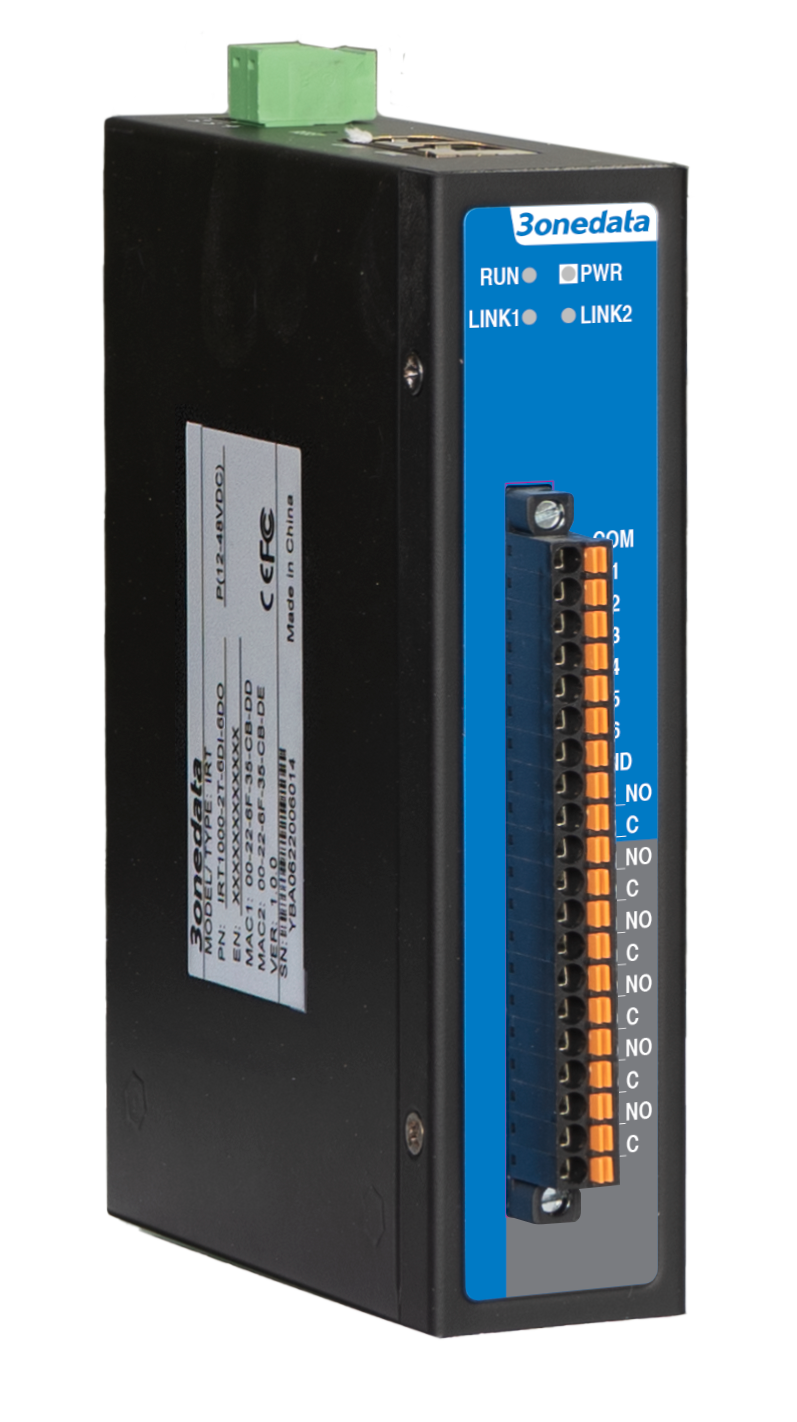

RIO1000 series is industrial I/O server specially designed for I/O devices to collect and control data, which can convert the collected I/O data into Modbus TCP protocol. This series supports 8 DI and 8 DO, 6 DI and 6 RO. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

The I/O server supports a variety of network protocols, such as Modbus TCP, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS and DHCP protocols; It has perfect management functions and supports point-to-point configuration, access control, network diagnosis, rapid configuration, online upgrade, etc; Support DI, Counter, DO, Pulse Output and other working modes; Support Modbus TCP master (Client) device access; Support TELNET, WEB, SSH and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

RESET button can instantly restore factory defaults. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.

Additional Features

u Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backups

u Support the setting of communication watchdog and enter the DO channel security mode

u Support customized Modbus TCP Slave start address and function code

u Support DI channel status detection and counter mode, and can be used as dry contact or wet contact

u Support DO channel state control and digital pulse output mode, with the maximum pulse frequency of 500Hz

u SNMPv1/v2c/v3 is used for network management of various levels

u Support TELNET, SSHD, HTTP, HTTPS and other configuration forms and access control

u SSHD and HTTPS can guarantee the access security of data

u User password can conduct user hierarchical management to improve the device management security

u Support IP address and MAC address filtering, which can achieve accurate access control easily

u Support multiple alarm methods, including e-mail, log server and SNMP Trap

u Support SNMP Trap alarm for DI and DO status changes, and special ID can be customized

u Support warm/cold start, network link failure, web log failure, IP modify and other system event alerts

u Support status monitoring such as routing table, system network and system log

u Support static routing configuration, and specify the data egress port across network segments

u Network diagnosis and troubleshooting could be conducted via Ping, Traceroute and packet capture diagnosis

u File management is convenient for the device rapid configuration and online upgrading

u Support point-to-point communication, and multiple I/O signals can be integrated on one network line to transmit input to output control
