| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+ ITU-T G.8032 for ERPS |
| Management | SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management (for PoE version) |
| Security | Classification of User Permissions, ACL, NAT, 802.1X Authentication, DHCP Snooping, Radius Server Authentication, Port Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Link Flapping Protection, Aggregation Protection |
| Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation, Storm Suppression |
| Unicast / Multicast | Static Multicast, Multicast Routing, Multicast Passthrough, IGMP-Snooping, IGMP, PIM-SM, PIM-DM, MVRP, MMRP |
| Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
| Troubleshooting | Ping, Traceroute, Port Loopback |
| Routing Technique | VRRP, RIP, OSPF, BGP, PBR |
| Time Management | NTP Client, RTC |

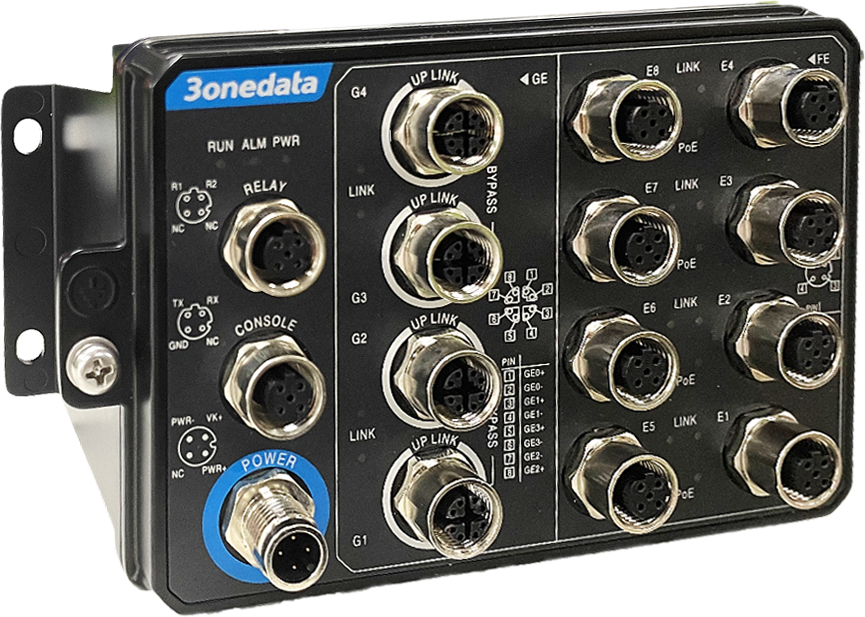

| Interface | Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning; it supports two groups of Bypass 100M PoE M12:10/100base-T (X), M12 (Female), 4-Pin D-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative Alarm port: M12 (Female), 4-Pin D-Coded, support 1 relay alarm output, current load capability is 1A@30VDC or 0.3A@125VAC Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded |
| Indicator | Power indicator, alarm indicator, running indicator, interface indicator, PoE indicator |
| Switch Property | Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 128Gbps Switch time delay: <10μs |
| ITxPT | Ignition wake-up: the switch will not be started when it is powered on; it will start when the car is ignited and receives the ignition signal. Delayed shutdown: after the car is turned off, the switch will continue to work for a period of time before power is cut off. Inventory Service: providing ITxPT standard basic services. ITxPT xStatus: provide status report information and fault information of Inventory Service device through ITxPT records. |
| Power Supply | Power input: 24VDC(17~24VDC) Connection method: M12(Male), 4-Pin A-Coded Connection protection: anti-reverse connection |
| Power Consumption | No-load (normal temperature): 15W@24VDC Full-load (normal temperature): 60W@24VDC |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%~95%(no condensation) |
| Physical Characteristic | Housing: IP67 protection, metal Installation: wall mounting Dimension (W x H x D): 178mm×104mm×92mm Weight: 1.57kg |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Power supply: ±2kV l Ethernet interface: ±1kV l Relay: ±2kV IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Relay: common mode ±2kV, differential mode±1kV l Ethernet interface: common mode±2kV Shock: IEC 61373 Free fall: IEC 60068-2-31 Vibration: IEC 61373 |
| Authentication | CE, FCC, RoHS, ITxPT |
| Warranty | 5 years |
