28 Port 10 Gigabit Layer 3 Managed Industrial Ethernet Switch

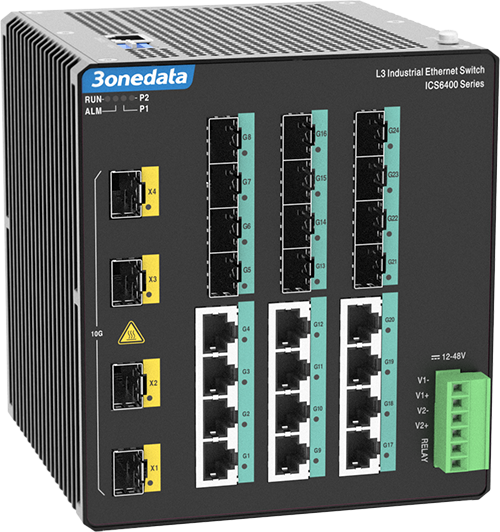

Overview of 3onedata's 28 Port 10GbE Layer 3 Managed Ethernet Switch ICS6400-12GT12GS4XS

ICS6400-12GT12GS4XS is 28-port Gigabit /10Gigabit Layer 3 Industrial Ethernet Switch. This product provides multiple interfaces including Gigabit copper ports, Gigabit SFP slots and 10G SFP slots. It adopts DIN-Rail mounting to meet the requirements of different application scenes. Abundant numbers of interfaces, bandwidth of Gigabit/10Gigabit combination and ability to transmit large amounts of video, voice and data with high performance and high speed meet the application requirements of large-scale industrial network.
The network management system supports various network protocols and industry standards, such as static routing, RIP, OSPF, ARP, VRRP, NAT, IGMP, PIM-SM, PIM-DM, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS, LLDP, IGMP Snooping, DHCP-Server/Snooping/Relay, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
DIP switch can achieve restore factory defaults of the device. When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The device input power supply has two inputs, which can ensure the normal operation of the device when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.


Additional Features
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server can be used for distributing IP address with different strategies
File management is convenient for the device rapid configuration and online upgrading
Port statistics can be used for the port real time traffic statistics
ARP could be used for MAC address resolution
User password can conduct user hierarchical management to improve the device management security
Storm suppression can restrain broadcast, unknown multicast and unicast
SSH configuration guarantee secure access to data
VLAN can be set to simplify network planning
Port trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port isolation could achieve port isolation in the same VLAN and save VLAN resources
PIM-DM/PIM-SM, IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth
Ring, ERPS, STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Ping, Traceroute, Port Loopback and SFP Digital Diagnosis could achieve network diagnosis and troubleshooting
VRRP, RIP, OSPF could implement dynamic router configuration
Multicast routing can be transmitted across the VLAN and deal with multicast flow flexibly
NAT maps private IP address to the legal IP address of external network, which can slow the consumption of IP address space
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE802.3ae for 10GBase-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP ITU-T G.8032 for ERPS
Management	SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Relay, File Management, Port Statistics, Log Information, Syslog Server, Static ARP
Security	Classification of User Permissions, NAT, Alarm Configuration, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Link Flapping Protection, HCP Snooping
Switch Function	802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast	Static Multicast, IGMP, IGMP-Snooping, PIM-SM, PIM-DM
Redundancy Technology	Ring, STP/RSTP/MSTP, ERPS
Troubleshooting	Ping, Traceroute, Port Loopback, SFP Digital Diagnosis
Routing Technique	VRRP, RIP, OSPF, Multicast routing
Time Management	NTP
Interface	Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption Gigabit SFP Slot : 100/1000 Base-X self-adaption SFP slot 10Gigabit SFP+: 1000/10G Base-X self-adaptive SFP+ slot Console port: CLI command line management port(RS-232), RJ45 Alarm port: 6-pin 5.08mm pitch terminal blocks (2 pins for relay), support 1 relay alarm output
Indicator	Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator
Switch Property	Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 128G Switch time delay: <10μs
Power Supply	12~48VDC, 6-pin 5.08mm pitch terminal blocks. The power supply occupies 4 pins and supports dual power supply redundancy and anti-reverse connection.
Power Consumption	No-load: 15.4W@24VDC Full-load: 30W@24VDC
Working Environment	Operating temperature: -40~65℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation)
Physical Characteristic	Housing: IP30 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 137.4mm×150mm×135mm Weight: 2kg
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, FCC, RoHS
Warranty	5 years

Available Models	Gigabit Copper Port	Gigabit SFP Slot	10Gigabit SFP+ Slot	Power Supply
ICS6400-12GT12GS4XS	12	12	4	12~48VDC dual power supply
