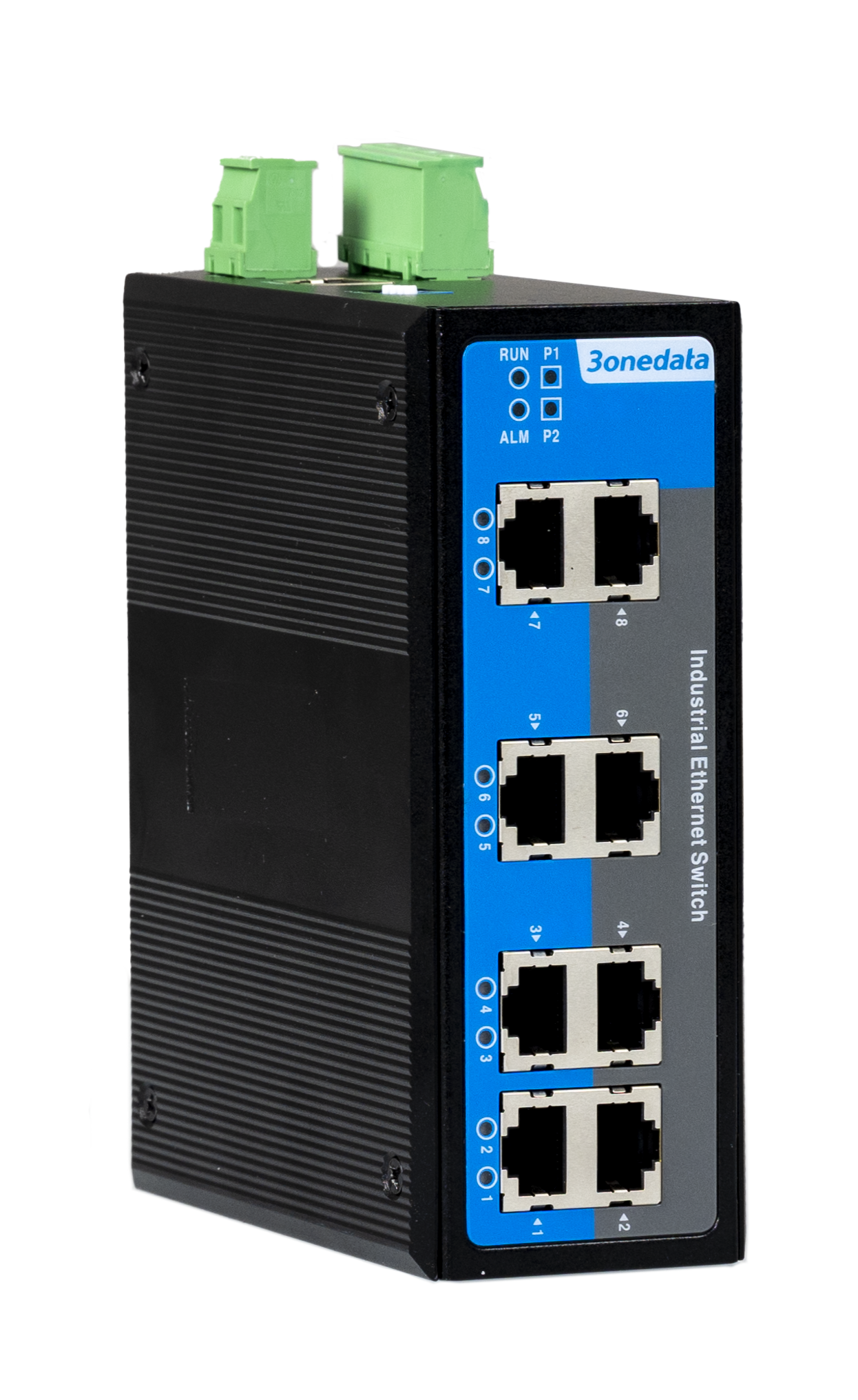

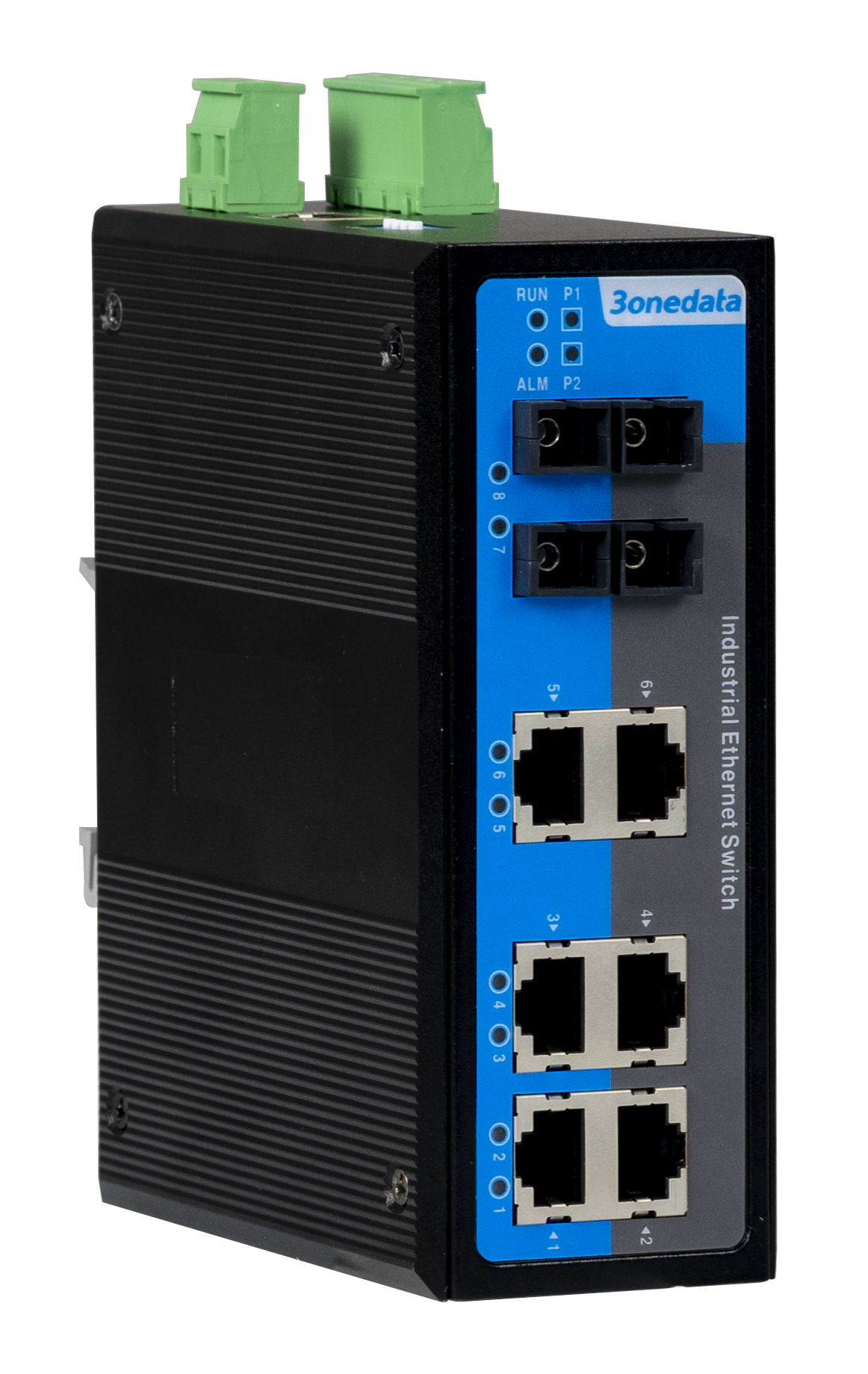

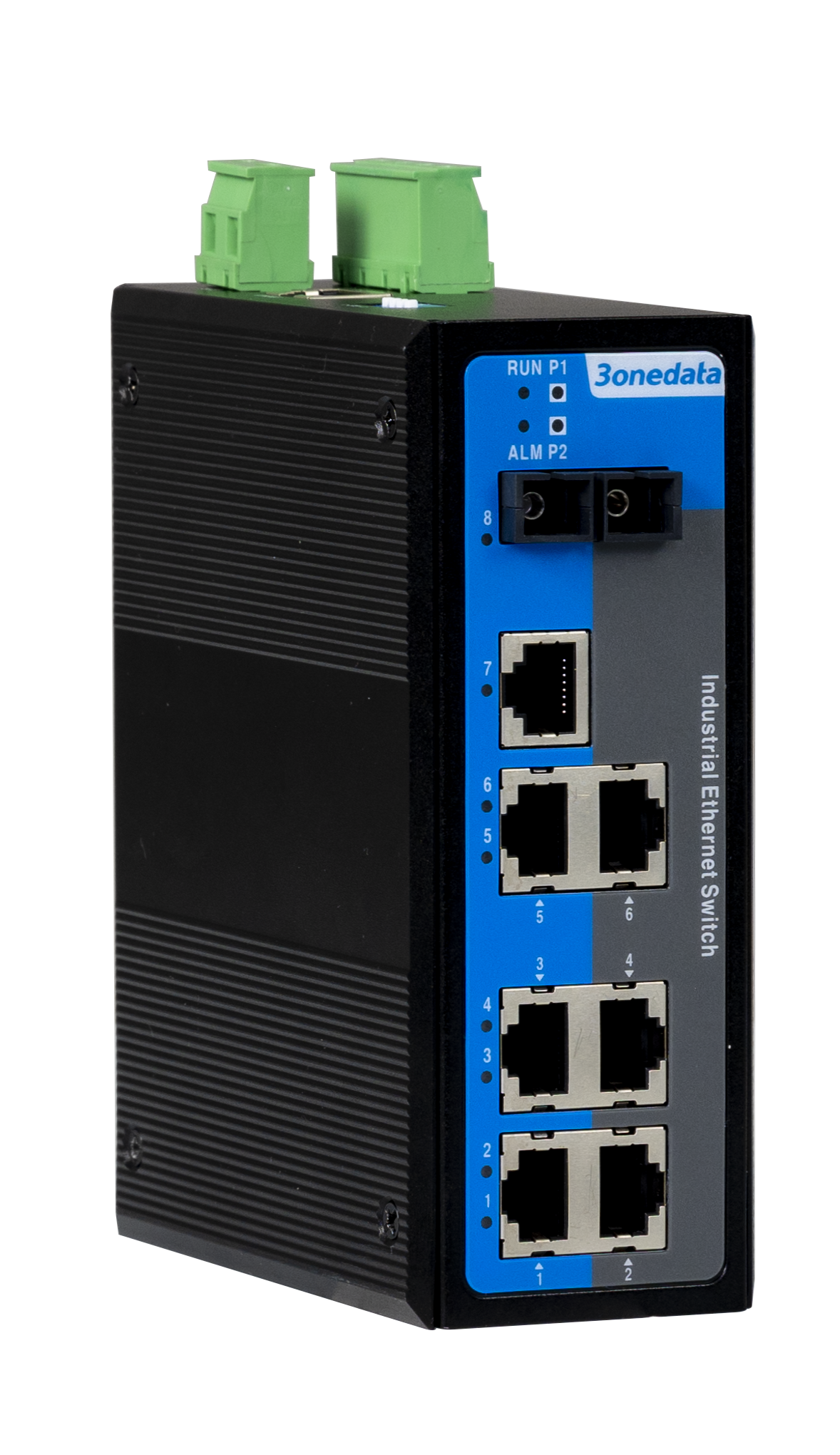

IES318 Series

Unmanaged 8 Port Ethernet Data Switch

uSupport 4 100M Ethernet copper ports and 4 100M Ethernet ports (optional fiber/copper ports)

uSupport relay alarm output

uSupport 9~60VDC dual power input and power supply nonpolarity

uSupport 220VAC/DC power supply input

uSupport -40~75 wide temperature operation

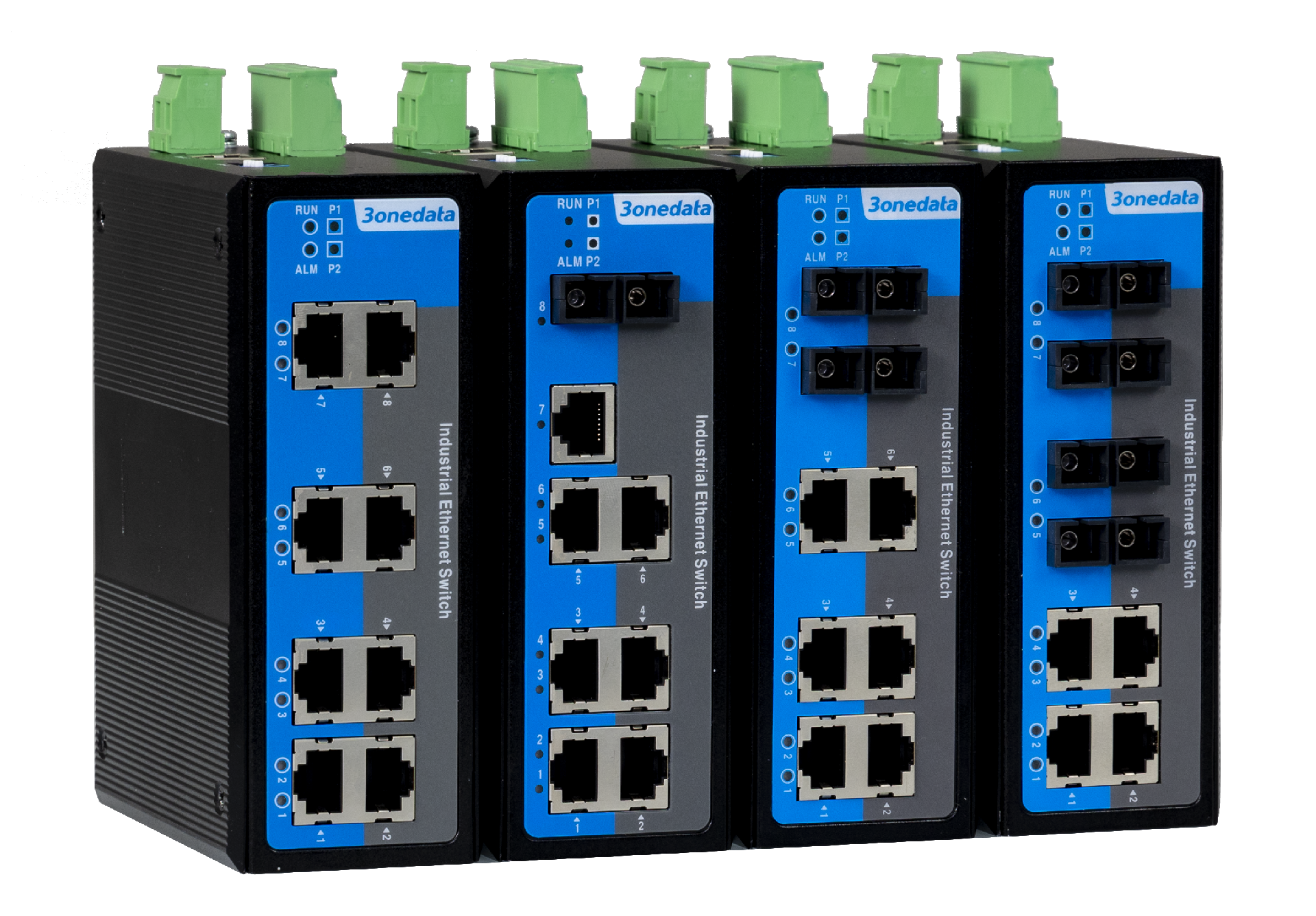

IES318 series is an 8-port 100M layer 2 unmanaged industrial Ethernet switch. This series provides 8 products and supports 100M copper ports and 100M fiber ports. They adopt wall or DIN-Rail mounting to meet the requirements of different application scenes.

DC power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. The design of DIP switch can realize port alarm and power alarm. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
